CAMSHAFT
4. Install camshaft brackets.
• Remove foreign material completely from camshaft bracket
backside and from cylinder head installation face.

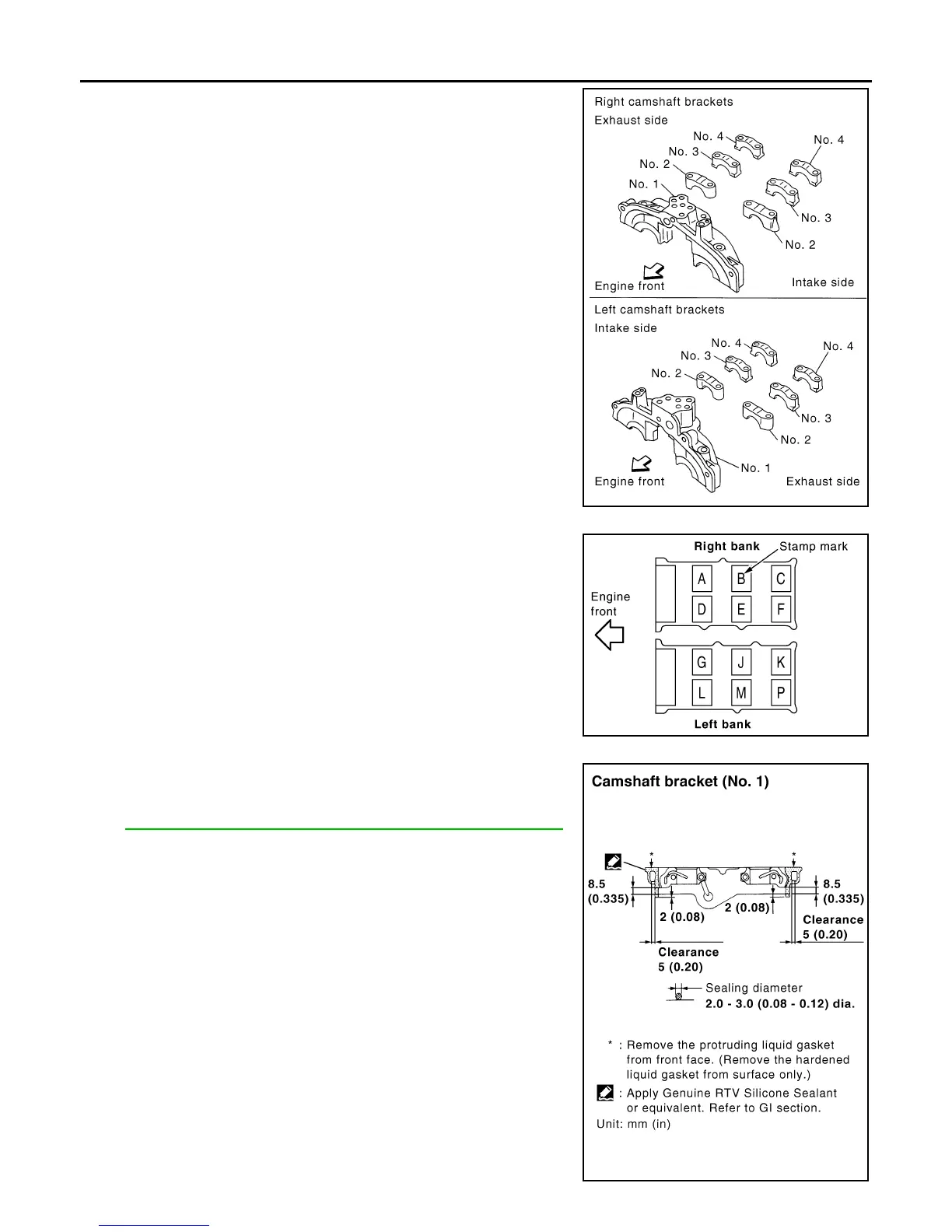

• Install camshaft bracket in original position and direction as
shown.
• Install camshaft brackets (No. 2 to 4) aligning the stamp marks
as shown.
NOTE:
There are no identification marks indicating left and right for
camshaft bracket (No. 1).
• Apply liquid gasket to mating surface of camshaft bracket (No.
1) as shown on right and left banks.
Use Genuine RTV Silicone Sealant or equivalent. Refer to
GI-17, "Recommended Chemical Products and Sealants"
.
PBIC2051E
PBIC2052E
PBIC2660E
