AUTOMATIC AIR CONDITIONER
E12-A-120227-CB216132-D470-42B7-A745-DA32B2A523C0

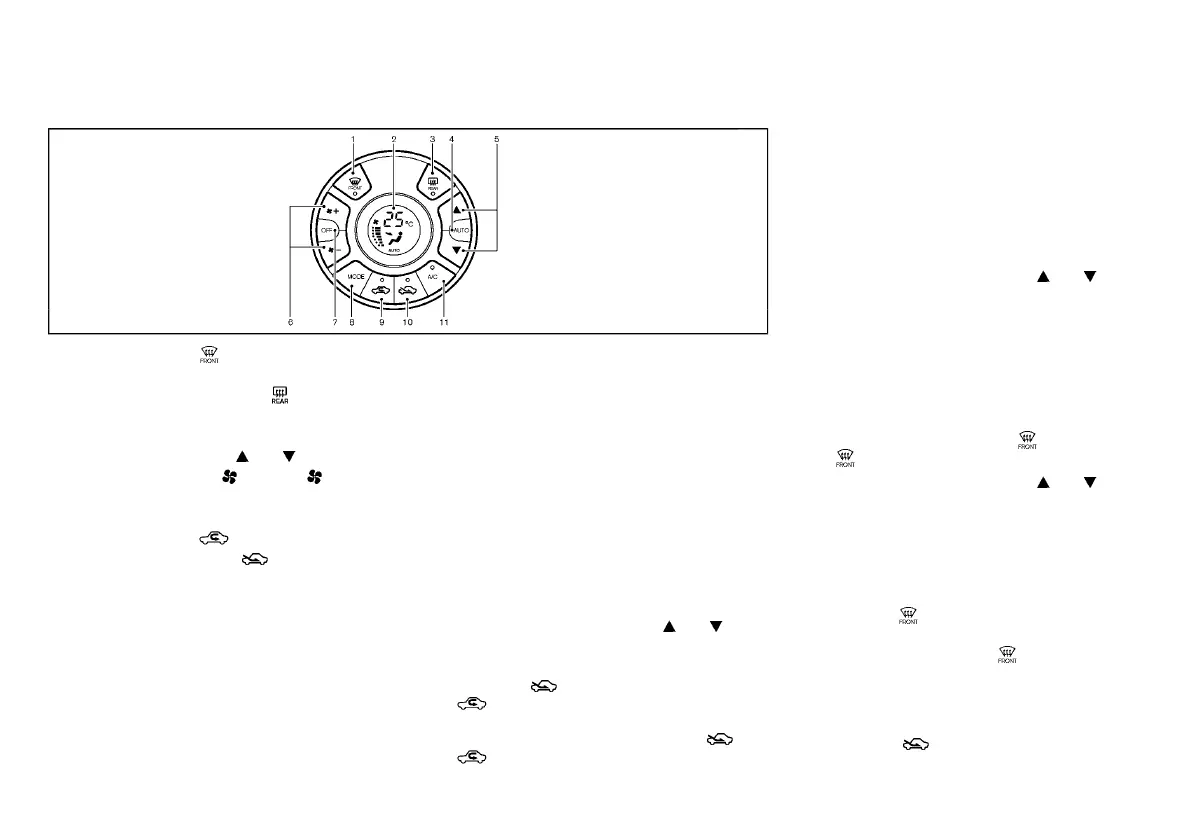

SAA2592
1. Front defogger “ ” button
2. Display
3. Rear window defogger “
” button (See
“Defogger switch” (P.2-22).)
4. “AUTO” button
5. Temperature control “
”/“ ” buttons
6. Fan speed control “
+” and “ -” buttons
7. “OFF” button
8. “MODE” (air flow control) button
9. Air recirculation “
” button
10. Outside air circulation “
” button
11. “A/C” (Air Conditioner) button
NOTE:
Except for Thailand:
The idling Stop System will not activate when
the front defogger button or rear window
defogger button is turned on.
Automatic operation (AUTO)
E12-A-120227-F00C956F-A865-4F7B-9FC3-20E19AF9A943
The AUTO mode may be used year-round as the
system automatically controls constant temperature, air
flow distribution and fan speed after the desired
temperature is set manually.
To turn off the heater and air conditioner, push the
“OFF” button.
Cooling and dehumidified heating:
GUID-11F97BB9-9503-47D0-8BB9-62C812293875
1. Push the “AUTO” button. (“AUTO” will appear on
the display.)
2. If the “A/C” indicator light does not illuminate,
push the “A/C” button. (The “A/C” indicator light
will illuminate.)
3. Push the temperature control “
”/“ ” but-
ton to set the desired temperature.
4. If the indicator light on either the outside air
circulation “
” button or the air recirculation
“
” button is illuminated, push and hold the
button with the light illuminated to switch to the
automatic air intake control mode. (The “
” and
“
” indicator lights will blink twice.)
A visible mist may be seen coming from the ventilators
in hot, humid conditions as the air is cooled rapidly.
This does not indicate a malfunction.
Heating (A/C off):
GUID-11F97BB9-9503-47D0-8BB9-62C812293875
1. Push the “AUTO” button. (“AUTO” will appear on
the display.)
2. If the “A/C” indicator light illuminates, push the
“A/C” button. (The “A/C” indicator light will turn
off.)
3. Push the temperature control “
”/“ ” but-
ton to set the desired temperature.
. Do not set the temperature lower than the outside
air temperature. Doing so may cause the tem-
perature to not be controlled properly.
. If the windows fog up, use dehumidified heating
instead of the A/C off heating.
Dehumidified defrosting/defogging:
GUID-11F97BB9-9503-47D0-8BB9-62C812293875
1. Push the front defogger “ ” button. (The
“
” indicator light will illuminate.)
2. Push the temperature control “
”/“ ” but-
ton to set the desired temperature.
. To remove frost from the outside surface of the
windshield quickly, set the temperature to a high
temperature and the fan speed to the maximum
level.
. After the windshield is cleared, push the front
defogger “
” button again. (The indicator light
will turn off.)
. When the front defogger “
” button is pushed,
the air conditioner will automatically turn on when
the outside air temperature is above −28C (288F)
to defog the windshield. The air recirculation mode
will automatically turn off. The outside air circula-
tion mode “
” will be selected to improve the
defogging performance.
Condition:
