[ Edit: 2016/ 11/ 24 Model: E12-A ]
ENGINE COOLANT TEMPERATURE
GAUGE (for Type B)
E12-A-120227-A7B78993-7E79-4AFC-BDE0-E59D4D95BC83
JVI0177X

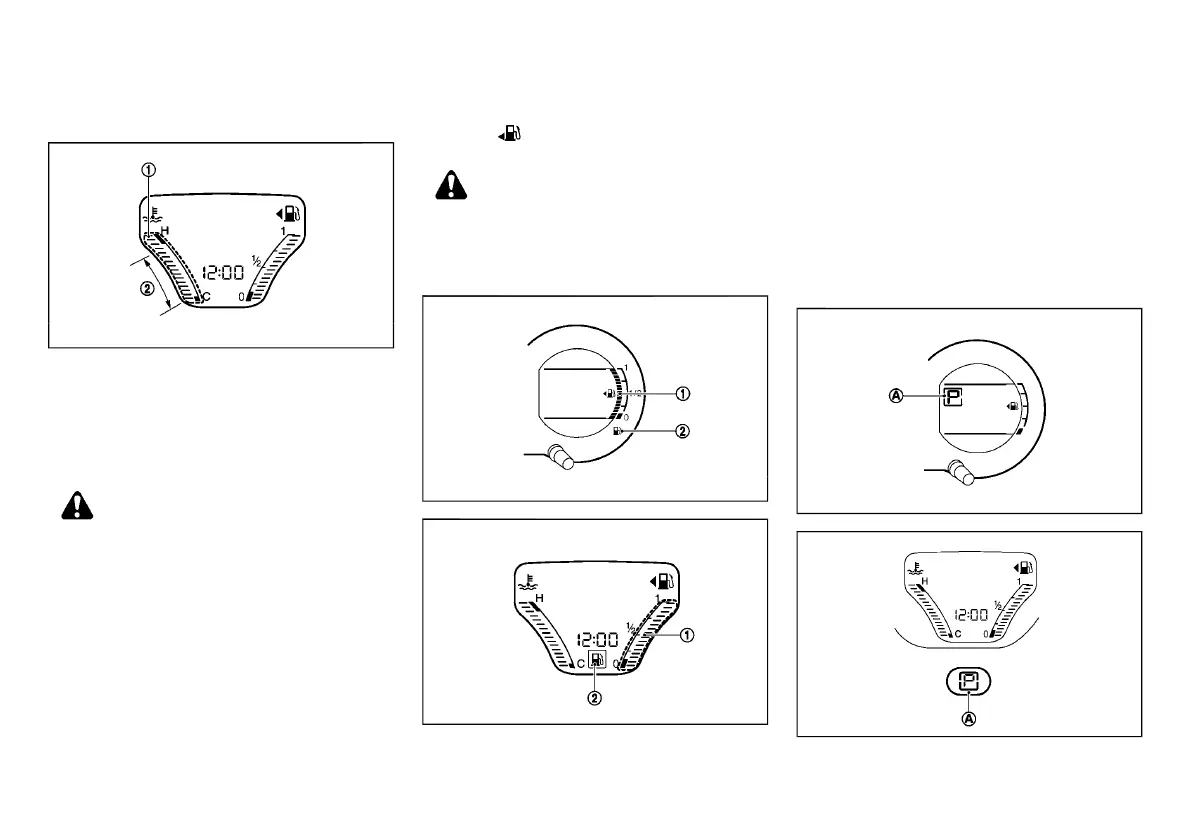

The engine coolant temperature gauge
*
1
indicates
the engine coolant temperature.
The engine coolant temperature is normal when the
gauge is within the zone
*
2
shown in the illustration.
The engine coolant temperature will vary with the
outside air temperature and driving conditions.
CAUTION:
. If the gauge indicates engine coolant tem-
perature near the hot (H) end of the normal
range, reduce vehicle speed to decrease
temperature.
. If the gauge is over the normal range, stop
the vehicle as soon as safely possible.
. If the engine is overheated, continued op-
eration of the vehicle may seriously damage
the engine. (See “If your vehicle overheats”
(P.6-10) for immediate action required.)
FUEL GAUGE
E12-A-120227-3B5182A9-CC28-468E-87BB-E2BF5A06BF4F
The arrow, , indicates that the fuel-filler lid is
located on the left side of the vehicle.
CAUTION:
Refuel before the gauge reads the empty (0)
position.
There is a small reserve of fuel in the tank when the fuel
gauge reads the empty (0) position.
JVI0470X
Type A
JVI0178X
Type B
The fuel gauge
*
1
indicates the approximate fuel level
in the tank when the ignition switch is in the “ON”
position.
The gauge may move slightly during braking, turning,
accelerating, or going up and down hills due to
movement of fuel in the tank.
The low fuel warning light
*
2
illuminates when the fuel
level in the tank is getting low. Refuel as soon as it is
convenient, preferably before the gauge reads the
empty (0) position.
CONTINUOUSLY VARIABLE TRANSMIS-
SION (CVT) POSITION INDICATOR
E12-A-120227-39E0C81E-527C-4935-98D1-F4AF77D545EE
JVI0471X
Type A
JVI0179X
Type B
The Continuously Variable Transmission (CVT) position
Instruments and controls 2-9
