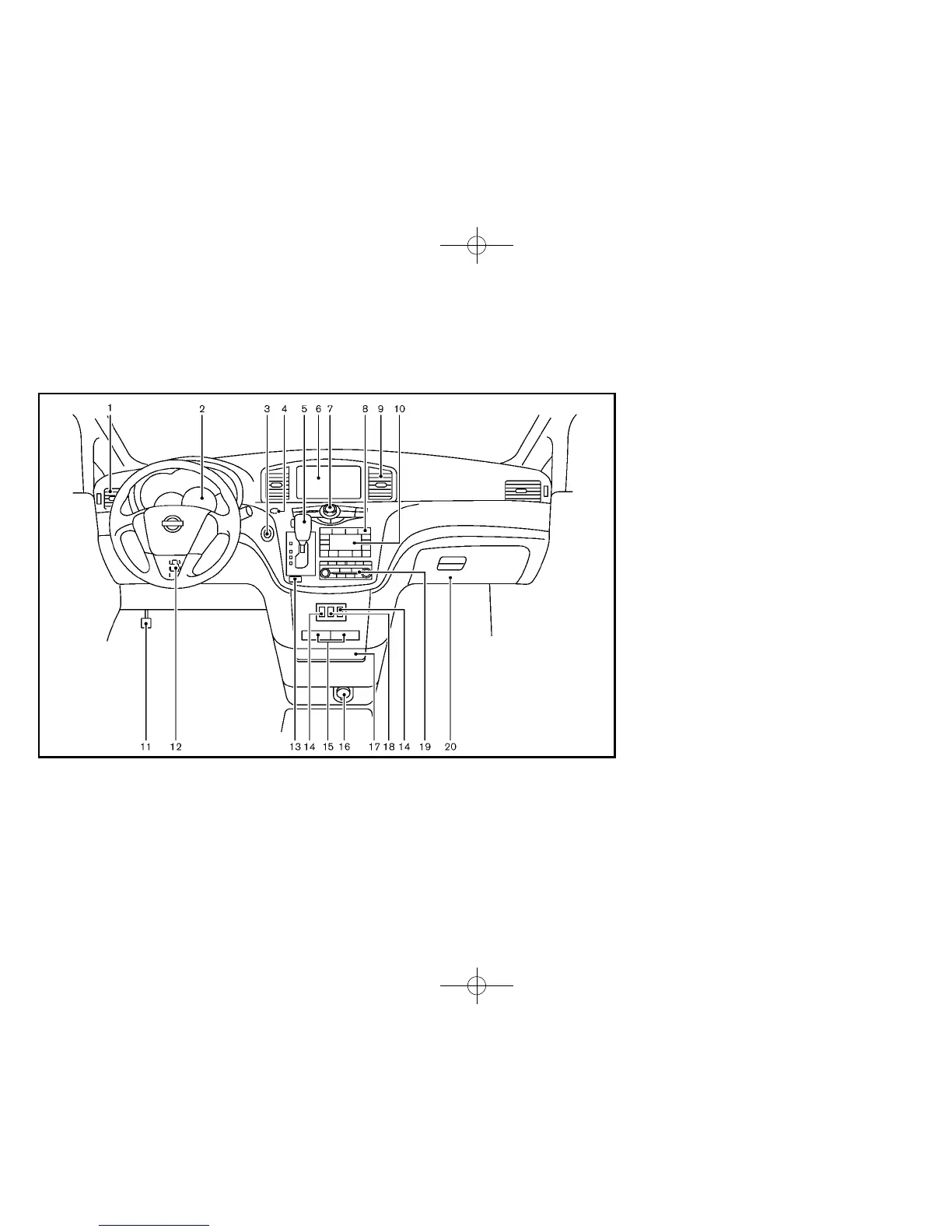

1. Side ventilator (P.4-38)
2. Meters and gauges (P.2-5)
3. Push-button ignition switch (P.5-8)
4. Hazard warning flasher switch (P.6-2)
5. Selector lever (P.5-13)
6. Center display
— Center color display* (P.4-3)
— Navigation system**
7. Center multi-function control panel* (P.4-3)
— Navigation system**
— Vehicle information and setting buttons*
(P.4-8)
— RearView Monitor* (P. 4-23)
— Around View Monitor* (P. 4-29)
8. Rear window and outside mirror* defroster
switch (P.2-32)
9. Center ventilator (P.4-38)
10. Heater/air conditioner control (P.4-39) or audio
system (P.4-53)
11. Parking brake (P.5-17)
12. Tilting telescopic steering wheel lever (P.3-32)
13. Front passenger air bag status light (P.1-54)
14. Heated seat switch* (P.2-38)
15. Cup holders (P.2-43)
16. Power outlet (P.2-40)
17. Instrument lower box (P.2-46) or CD/DVD slot
(P.4-105)
18. Power outlet main switch* (P.2-40)
19. Audio system (P.4-53)
20. Glove box (P.2-45)
*: if so equipped
**: Refer to the separate Navigation System Own-
er’s Manual (if so equipped).
Illustrated table of contents 0-7
