0-8 Illustrated table of contents
GUID-073633CE-DDD1-43BA-93E3-2242C44257FC
JVC0210X

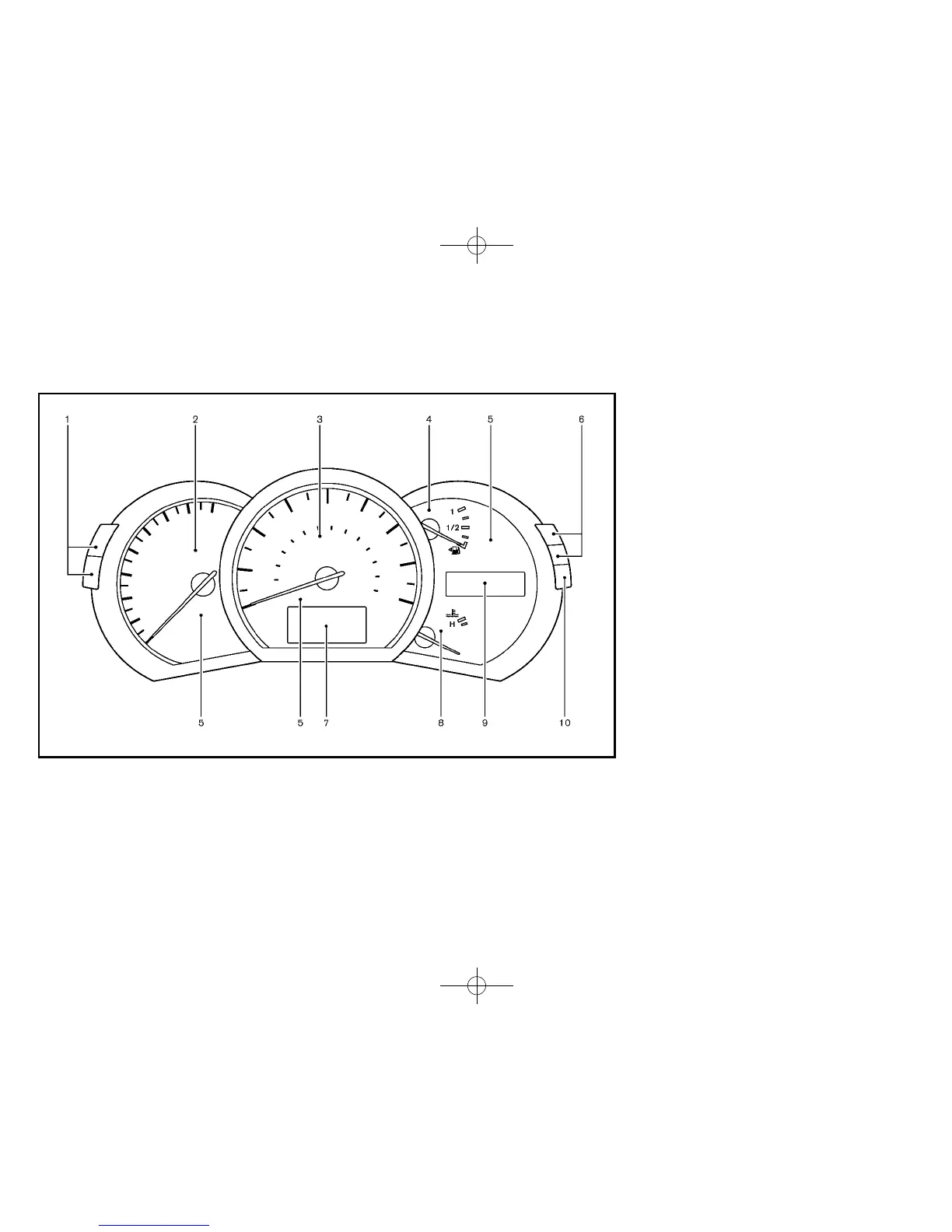

1. Instrument brightness control switch (P.2-37)
2. Tachometer (P.2-7)
3. Speedometer (P.2-6)
4. Fuel gauge (P.2-8)
5. Warning/indicator lights (P.2-11)
6. Trip computer switch (P.2-22)
7. Dot matrix liquid crystal display (P.2-18)
— Trip computer (P.2-22)
8. Engine coolant temperature gauge (P.2-7)
9. Odometer/twin trip odometer (P.2-6)/Continu-
ously Variable Transmission (CVT) position
indicator (P.2-16)
10. TRIP/RESET switch for twin trip odometer
(P.2-6)
