[ Edit: 2012/ 4/ 9 Model: E26-A ]
JVE0041X

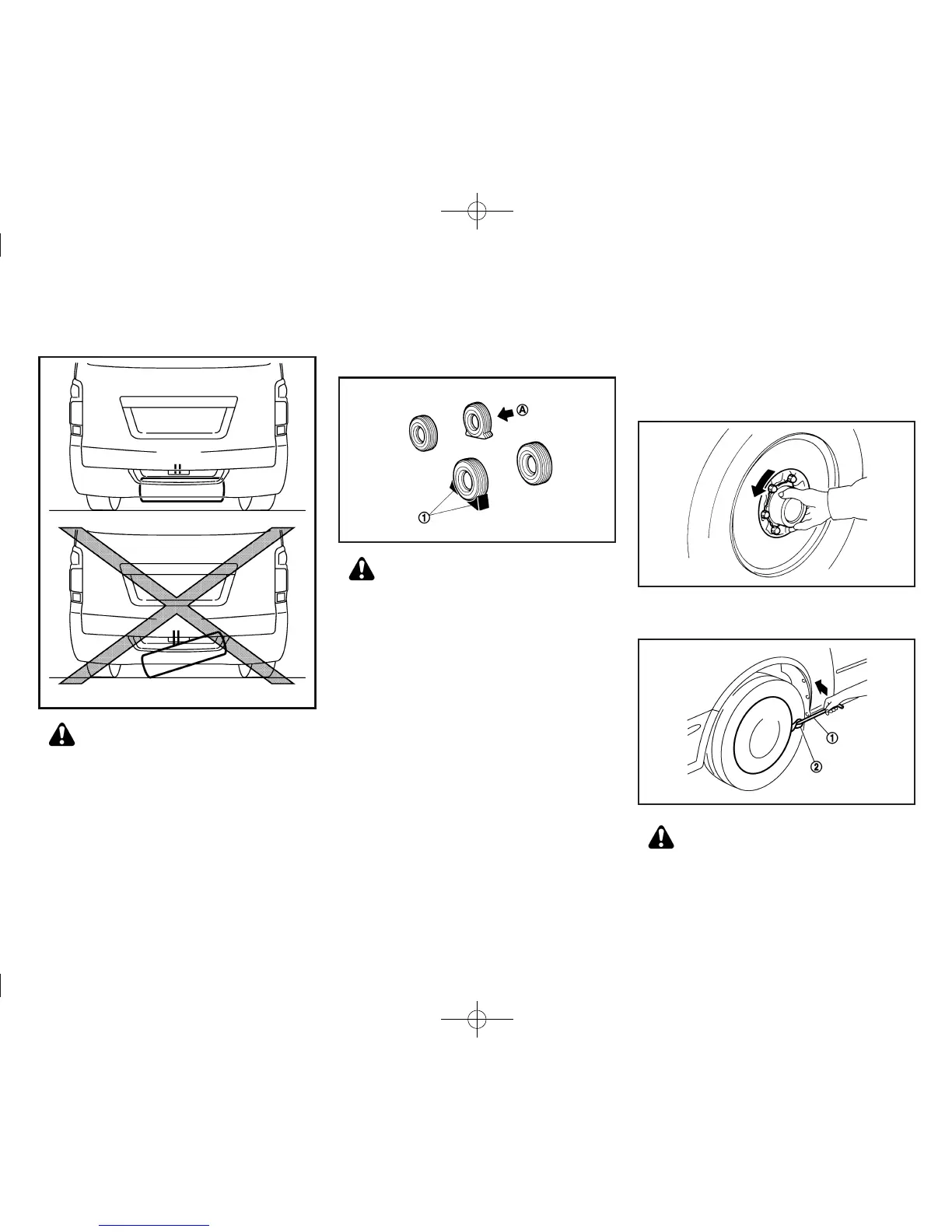

CAUTION:
When storing the wheel, be sure to mount the
wheel horizontally. Securing the wheel that is in
a tilted position as illustrated may cause loosen-
ess and dropping of the wheel while driving.
Lower the wheel on the ground again, and make
sure that the hanging plate is properly set. Hang
the wheel again and make sure that the wheel is
held horizontally, then store the wheel.
BLOCKING WHEELS
GUID-4C72D35B-89C9-4FB8-8D2D-BE7321490E25
MCE0001D
WARNING:
Be sure to block the appropriate wheel to
prevent the vehicle from moving, which may
cause personal injury.
Place suitable blocks
*
1
at both the front and back of
the wheel diagonally opposite the flat tire
*
A
to
prevent the vehicle from moving when it is jacked up.
REMOVING TIRE
GUID-B76D8590-5E79-4ED4-BFA2-691A7C656795
Removing wheel cover
GUID-BD012A08-7239-4159-BD1E-57C159572410
Type A:
GUID-896AA31A-81D 0-4E9B-81ED-1F58D53AA854
SCE0627
Type A
Remove the center wheel cap as illustrated.
Type B:
GUID-896AA31A-81D 0-4E9B-81ED-1F58D53AA854
SCE0630
Type B
WARNING:
Never use your hands to remove the wheel
cover. This may cause personal injury.
To remove the wheel cover, use the jack rod
*
1
as
In case of emergency 6-5
