Nitek EtherStretch ER8500C - Page 7

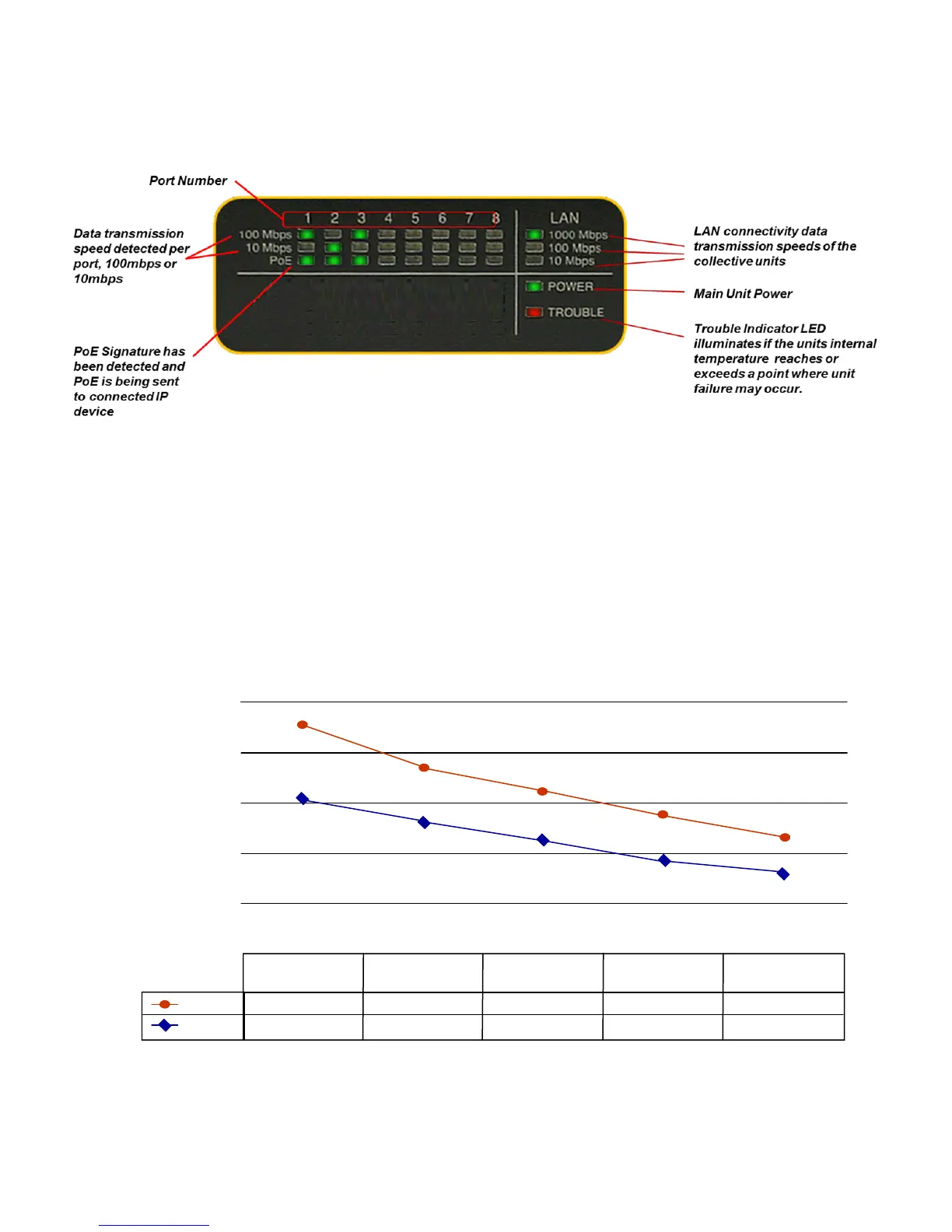

Connectivity LED Status*
PoE Distance Chart
22.8
18.5
16.2
13.8
11.6
8.0
9.3
11.3
13. 0
15. 4
25.5
20.0
15.0
10.0
5.0
0.0
500 Meters
1,640 Feet
400 Meters
1,300 Feet
300 Meters
1,000 Feet
200 Meters
650 Feet
100 Meters
328 Feet
22.8 Watts
15.4 Watts
18.5 Watts
13.0 Watts
16.2 Watts
11.3 Watts
13.8 Watts
9.3 Watts
11.6 Watts
8.0 Watts
802.3AT
802.3AF
Available PoE Wattage At PoE Device
Watts
* Results charted were calculated using RG59U coaxial cable with a 20AWG center conductor and power sourcing equipment using IEEE 802.3AF
standard with starting voltage of 48 volts DC and IEEE 802.3AT standard with starting voltage of 54 volts DC
