1. Description
The EVA-AD2 address programmer is used to set
the address of analogue addressable devices using
the Evolution communications protocol.
2. Contents
Please make sure that the main unit and all the accessories
below are enclosed.

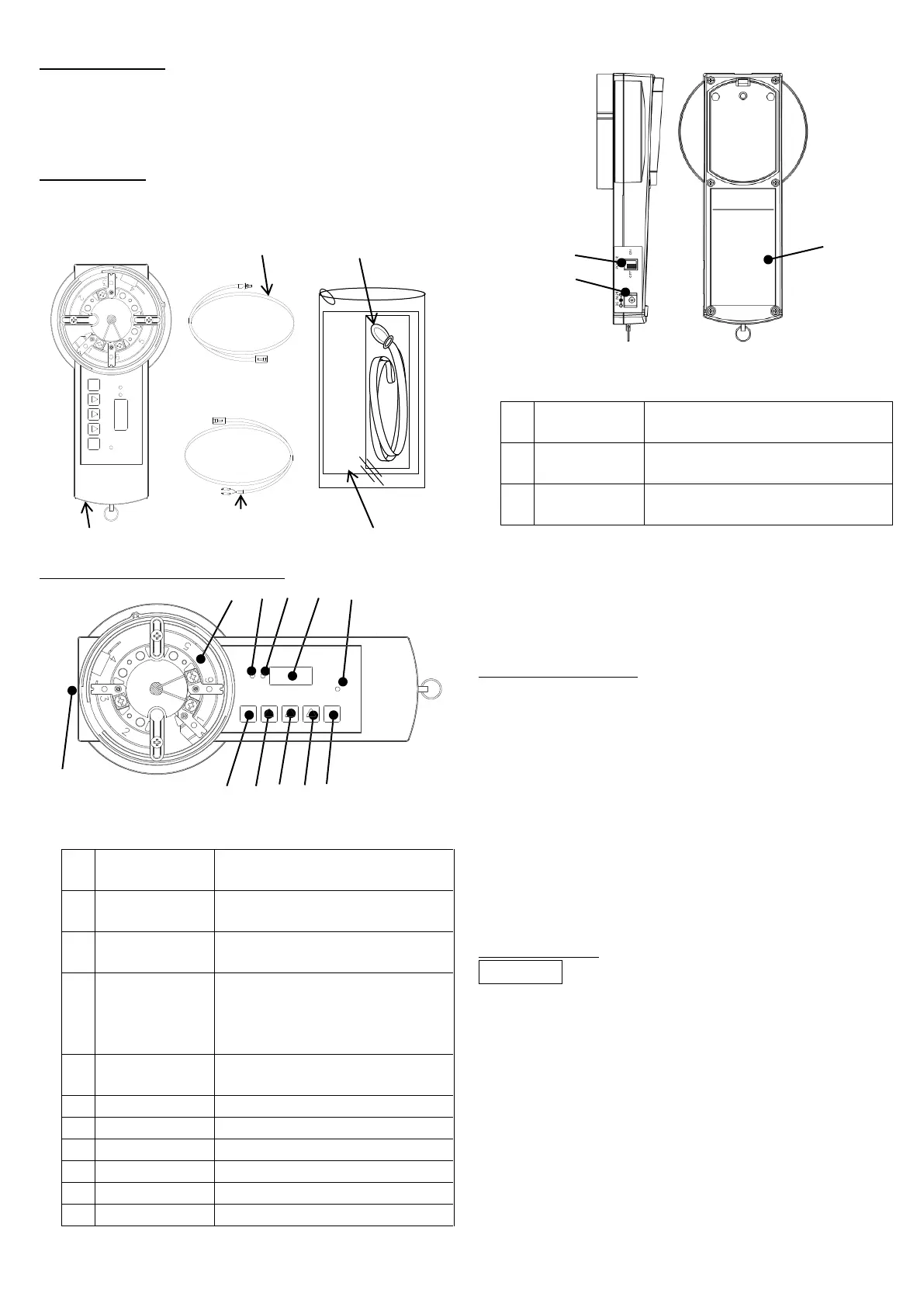

3. Part Name and Function
【Display,Controller】
①
OK LED
(Green)
Lit when programming of new
address is completed.
②
ERROR LED
(Orange)
Lit when programming of new
address could not be completed.
③
７segment LED
This displays the address,
customer code or type code.
④
POWER LED
(Green)
When the power is switched ON,
this LED will be lit.
If the programmer is reporting
“Low battery”, it will blink.
⑤
SEARCH SW
To start transmission and find the
address of the detector / module.
⑥
+100 SW
Increase address by one hundred
⑦
+10 SW
Increase address by ten.
⑧
+1 SW
Increase address by one.
⑨
SET SW
To set device address
⑩
Base
For connecting the detector
⑪
RJ45 Socket
For connecting the module
【Side Switch】 【Bottom Battery Box】
⑫
POWER SW
To turn the EVA-AD2
ON or OFF.
⑬
Plug Adaptor
For the AC power unit
(not supplied)
⑭
Battery Box
Battery compartment for PP3
non-rechargeable alkaline batteries
4. Stand by Mode
EVA-AD2 will switch to STAND-BY MODE for saving
battery power if there is no key operation for more than
one minute after finishing changing address of device.
During the STAND-BY MODE, 7segment is blank. Power
LED is lit.
To return EVA-AD2 from STAND-BY MODE press
any key.
5. Instruction
Preparation
1. Select a lead/cable with reference to 6.Connection Method,
and connect it to the EVA-AD2.
2. EVA-AD2 requires two 9v PP3 batteries.
a) Before inserting the batteries, confirm the
EVA-AD2 is switched off and check polarity
of battery, or damage could result.
⑫
⑬
⑭
⑩ ① ② ③ ④
⑤ ⑥ ⑦ ⑧ ⑨
⑪
110100
ADDRESS
ERROK
Set
Address
+1+10+100
Power
Search
Address
Address
Programmer
EVA-AD2
110100
ADDRESS
ERROK
Set
Address
+1+10+100
Power
Search
Address
Address
Programmer
EVA-AD2
Cable for module
Cable for
EVA-S6 Base
EVA-AD2
Neck strap
This manual
