Revision 6

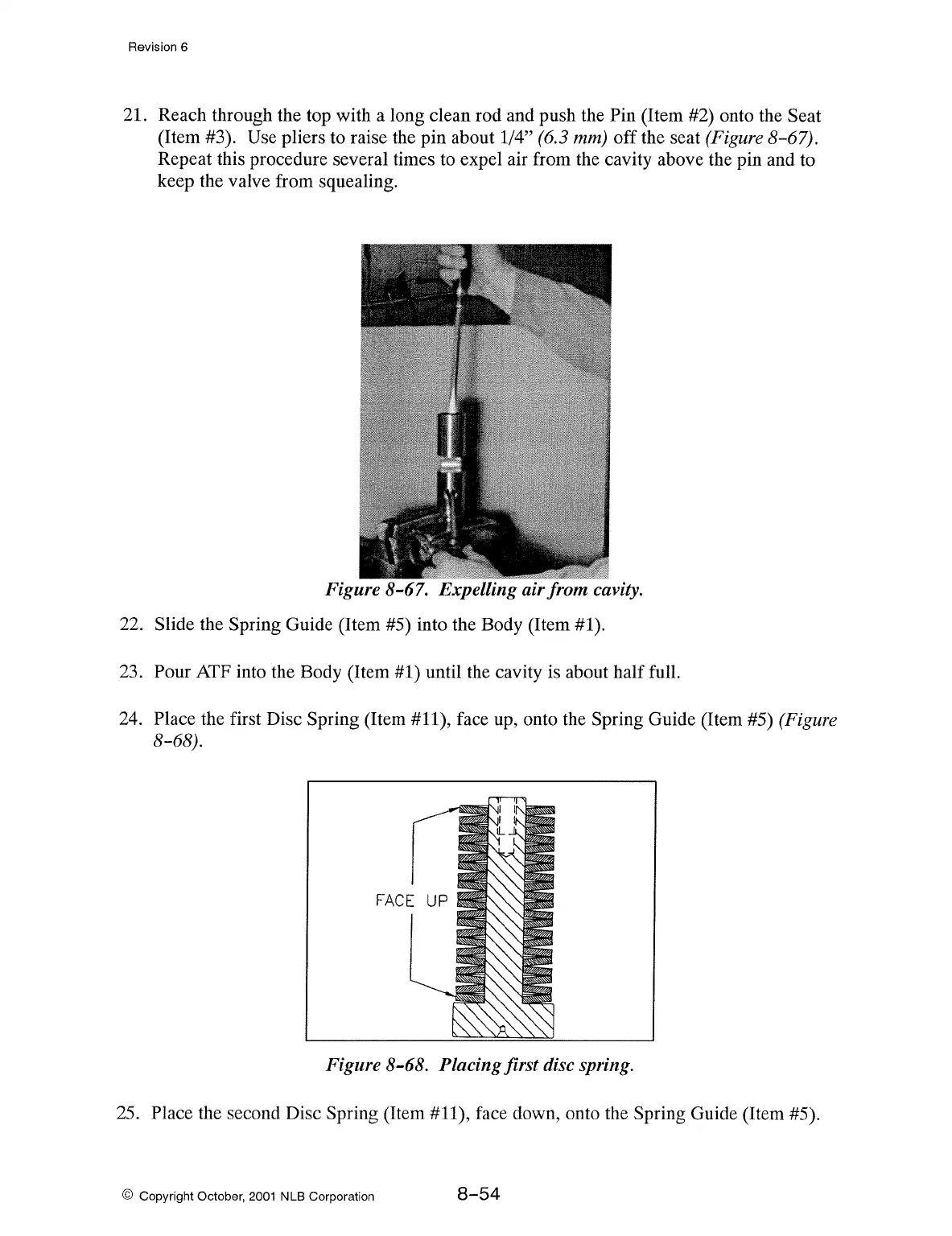

21. Reach through the top with a long clean rod and push the Pin (Item #2) onto the Seat
(Item #3).
Use pliers to raise the pin about 1/4" (6.3 mm) off the seat (Figure 8-67).
Repeat this procedure several times
to
expel air from the cavity above the pin and to
keep the valve from squealing.
Figure 8-67. Expelling air from cavity.
22. Slide the Spring Guide (Item #5) into the Body (Item #1).
23.
Pour
ATF
into the Body (Item #1) until the cavity is about half full.
24.
Place the first Disc Spring (Item #11), face up, onto the Spring Guide (Item #5) (Figure
8-68).
Figure 8-68. Placing first disc spring.
25.
Place the second Disc Spring (Item #11), face down, onto the Spring Guide (Item #5).
© Copyright October,
2001
NLB Corporation
8-54
