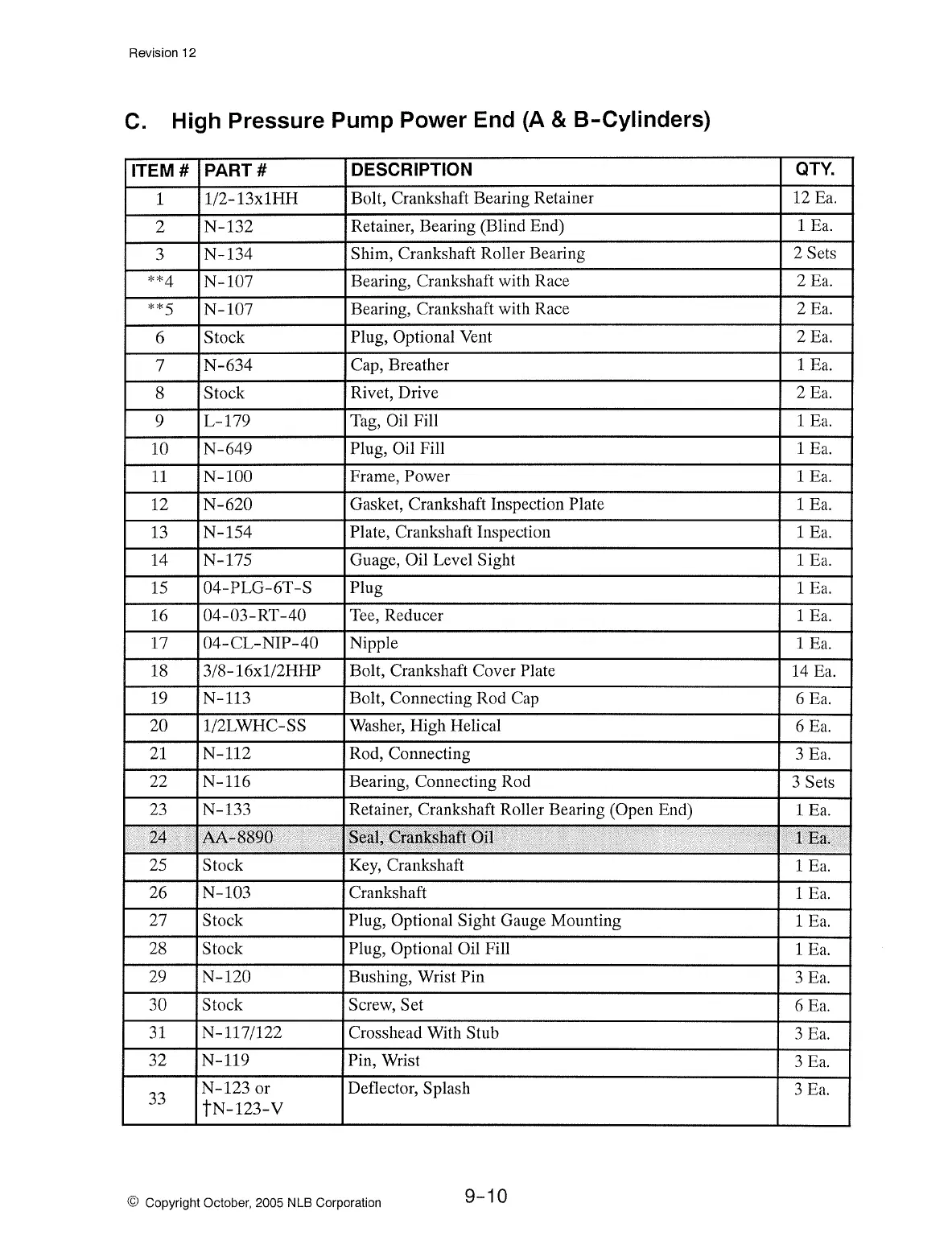

NLB 1312D - High Pressure Pump Power End (a & B-Cylinders)

Revision 12
C. High Pressure Pump Power End (A & B-Cylinders)
ITEM#
PART#
DESCRIPTION
QTY.
1
1/2-13x1HH
Bolt, Crankshaft Bearing Retainer
12
Ea.
2
N-132
Retainer, Bearing (Blind End)
1 Ea.
3
N-134
Shim, Crankshaft Roller Bearing 2 Sets
**4
N-107
Bearing, Crankshaft with Race
2Ea.
**5
N-107
Bearing, Crankshaft with Race 2Ea.
6
Stock
Plug, Optional Vent 2Ea.
7
N-634 Cap, Breather 1 Ea.
8
Stock
Rivet, Drive
2Ea.
9
L-179
Tag,
Oil Fill 1 Ea.
10
N-649
Plug, Oil Fill 1 Ea.
11
N-100 Frame, Power 1 Ea.
12
N-620
Gasket, Crankshaft Inspection Plate
1 Ea.
13
N-154 Plate, Crankshaft Inspection
1
Ea.
14
N-175 Guage,
Oil Level Sight
1
Ea.
15
04-PLG-6T-S Plug
1 Ea.
16
04-03- RT -40 Tee, Reducer
1
Ea.
17
04-CL-NIP-40 Nipple
1 Ea.
18 3/8-16xl/2HHP Bolt, Crankshaft Cover Plate
14 Ea.
19 N-113 Bolt, Connecting Rod Cap
6
Ea.
20 1/2LWHC-SS
Washer, High Helical
6
Ea.
21
N-112 Rod, Connecting
3
Ea.
22 N-116 Bearing, Connecting Rod
3 Sets
23 N-133 Retainer, Crankshaft Roller Bearing (Open End)
1 Ea.
24
•
AA-8890
Seal, t'.ran~shllft Oil
.
1 Ea:
.·
25 Stock Key, Crankshaft
1
Ea.
26
N-103 Crankshaft
l Ea.
27
Stock
Plug, Optional Sight Gauge Mounting
1
Ea.
28 Stock Plug, Optional Oil Fill
1 Ea.
29 N-120 Bushing, Wrist Pin
3 Ea.
30
Stock Screw, Set
6
Ea.
31 N-117/122 Crosshead With Stub
3 Ea.
32
N-119
Pin, Wrist
3
Ea.
33
N-123 or Deflector, Splash
3 Ea.
tN-123-V
