Revision 3
d.

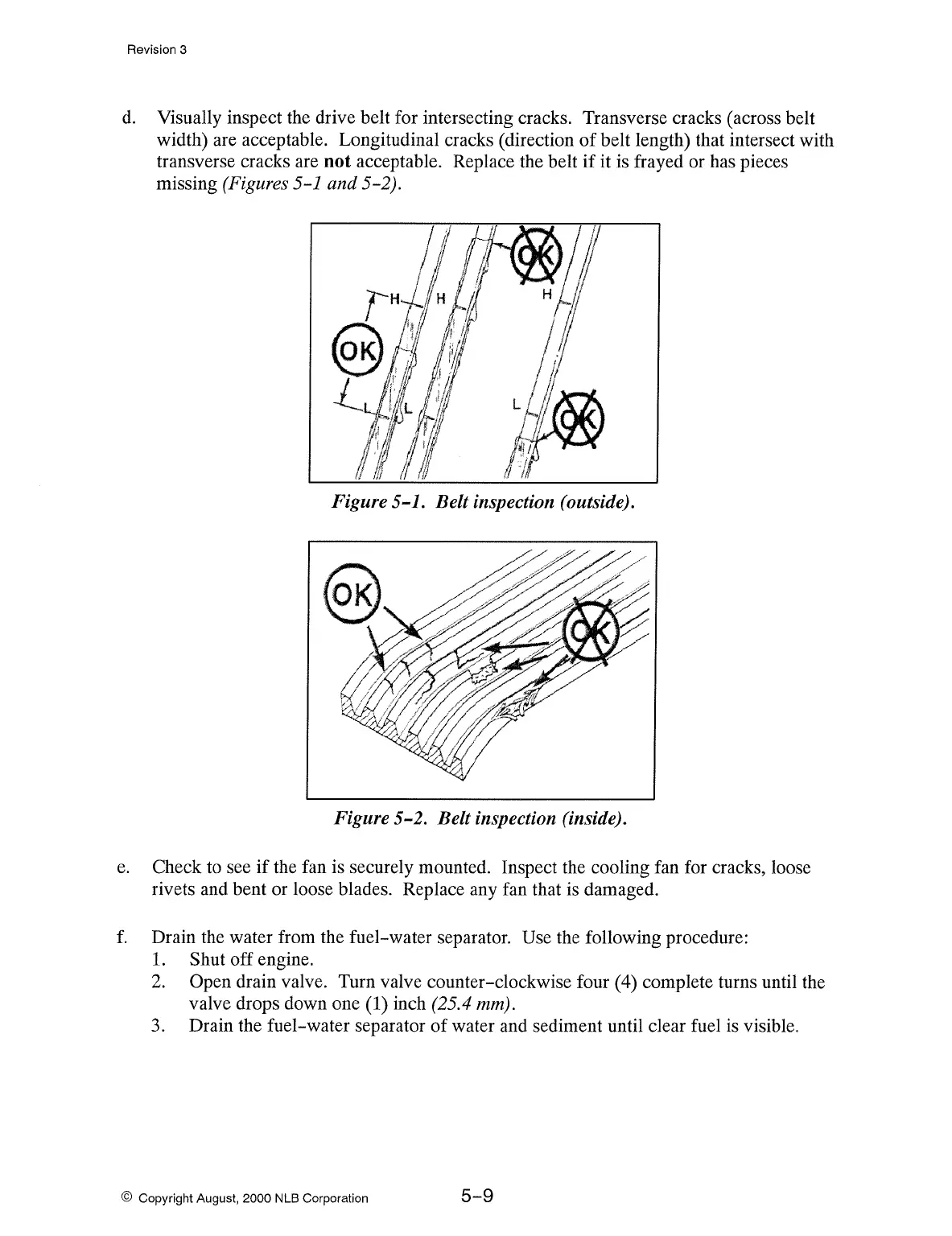

Visually inspect the drive belt for intersecting cracks. Transverse cracks (across belt
width) are acceptable. Longitudinal cracks (direction
of
belt length) that intersect with
transverse cracks are
not acceptable. Replace the belt
if
it
is
frayed or has pieces
missing
(Figures
5-1and5-2).
Figure 5-1. Belt inspection (outside).
Figure 5-2. Belt inspection (inside).
e.
Check
to
see
if
the fan is securely mounted. Inspect the cooling fan for cracks, loose
rivets and bent or loose blades. Replace any fan that
is
damaged.
f.
Drain the water from the fuel-water separator.
Use
the following procedure:
1.
Shut off engine.
2.
Open drain valve. Turn valve counter-clockwise four ( 4) complete turns until the
valve drops down one (1) inch
(25.4 mm).
3.
Drain the fuel-water separator
of
water and sediment until clear fuel
is
visible.
© Copyright August, 2000 NLB Corporation
5-9
