Noam NUTV4 - Wiring Guide; Power and Speaker Wiring Diagram

wire color
Red
Black
White
White/Black
Gray
Gray/Black
Description
Battery (+), 12dc / 12vdc = ON
Battery (-), Ground
CH1 (+)
CH1 ( - )
CH2 (+)
CH2 (-)
Green
Green/Black
Purple
Purple/Black
CH3 (+)
CH3 ( - )
CH4 (+)
CH4 (-)

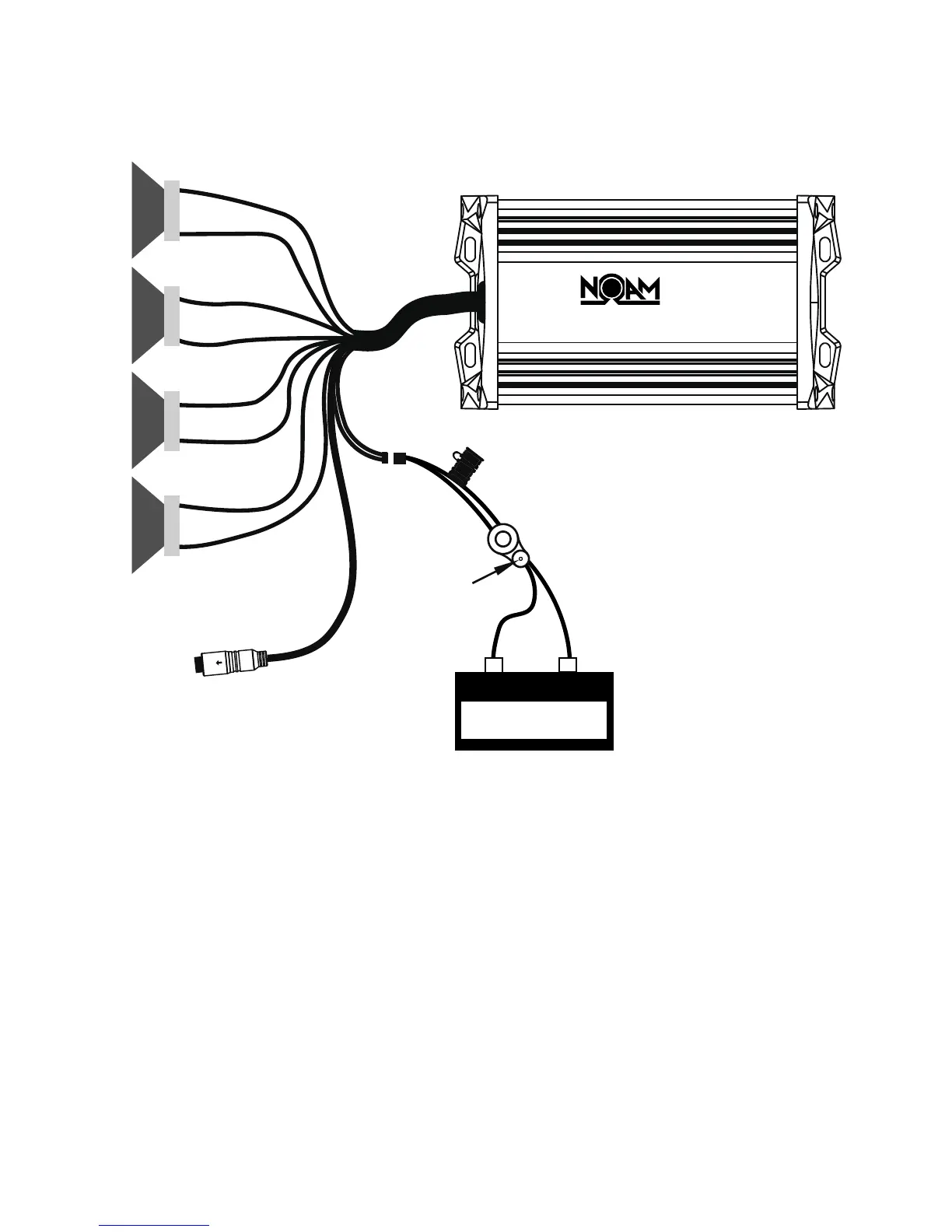

Power and Speaker Wiring
4
+
-
+
-
+
-
+
-
WHITE
GRAY/BLACK
GRAY
GREEN
PURPLE
PURPLE/BLACK
GREEN/BLACK
WHITE/BLACK
NUTV4
4 Channel UTV/ATV/BOAT Audio System
BATTERY
-
+
BLACK RED
LED
Accessory
switch
Insert
4-8 ohm speakers
Connect to the
Remote Control
