Install drainag e pipe
Note:
Install drainage pipe before using, otherwise poor drainage will affect normal
operation of the unit.

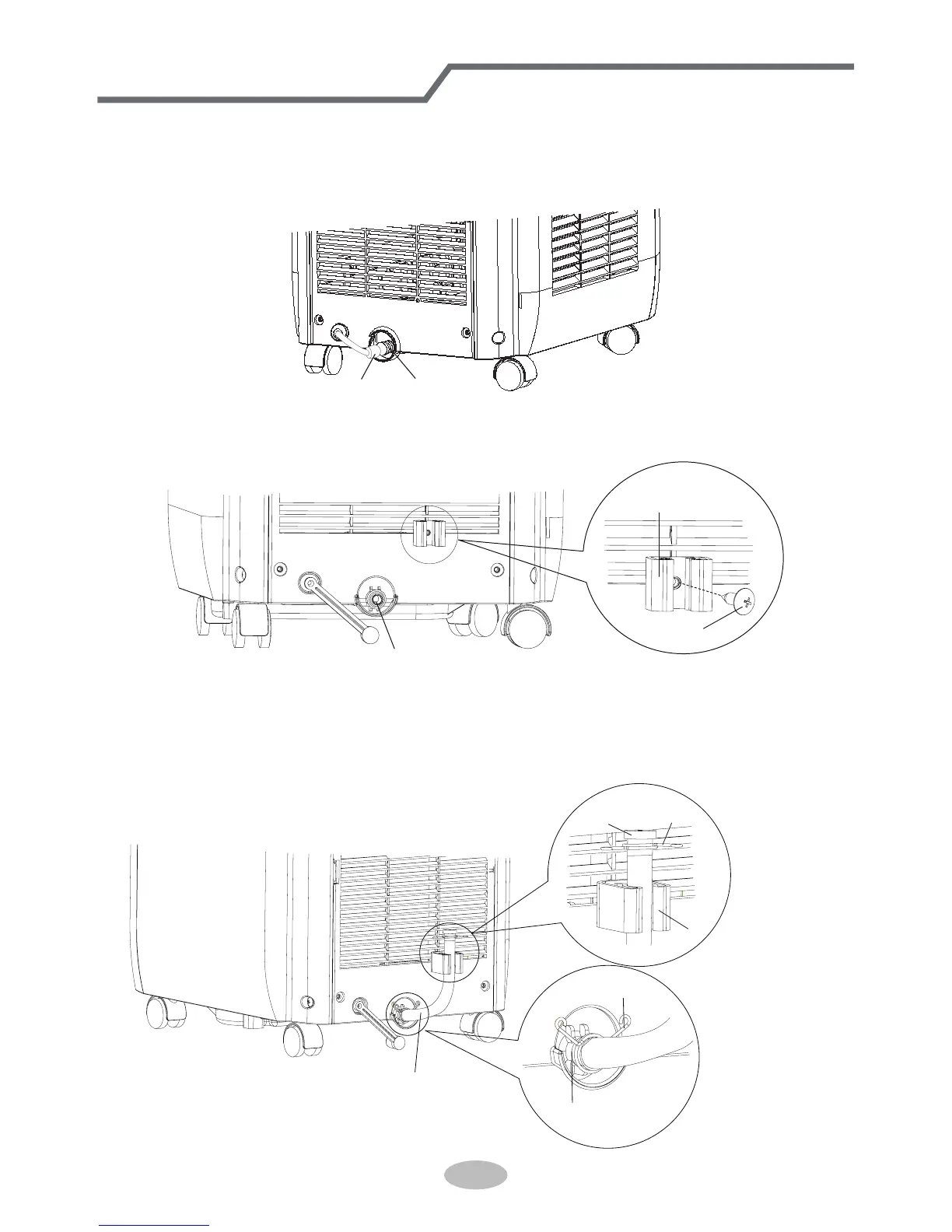

1. Remove the rubber plug at drainage port.
2. i the drainage pipe clip on the right of rear side plate near drainage port with
a screw.
3. Put the drainage pipe into drainage port and screw it up, and then bind it with
pipe hoop.
. Put the rubber plug into the other side of drainage pipe,  it with pipe hoop and
then  it in the drainage pipe clip.
rubber plug drainage port
drainage port
drainage port
drainage pipe clip
drainage pipe clip
screw
pipe hoop
pipe hoop
rubber plug
drainage pipe
