6
Wi-Fi module installation

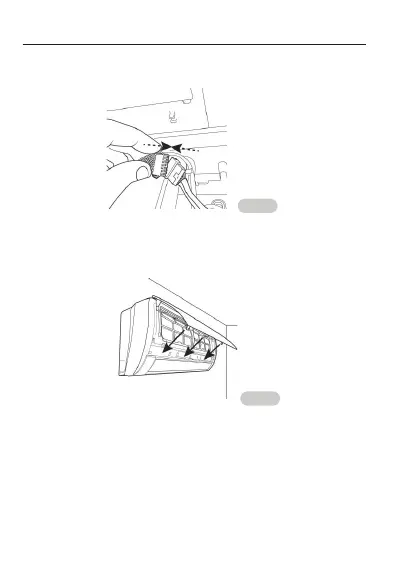

3. Connect the Wi-Fi module to the air connector that is free (see Fig.4).
a) On models 09 and 12, the air connector is loose outside the electrical box.
b) On models 18 and 24, the air connector is loose inside the electrical box.
CAUTION: Always perform the VM-Fi module installation with the unit removed
from the power supply
4. Close the front panel (see Fig.5).
Fig. 4
Fig. 5
