FD100A4 and FD100A6 field displays
Introduction
The FD100 series includes 4 and 6 digit models. Digit size is 100mm. The displays are based on input cards
of the panel meter series 2000 giving over 100 combinations. The unit has wide power supply range of
41...265 VAC or 20...28 VAC/VDC depending on model.
This manual covers enclosure information and installation of the unit. Input cards and programming are
covered in corresponding 2000-series panel meter manual. All 2000-series panel meter combinations are
valid for this series.

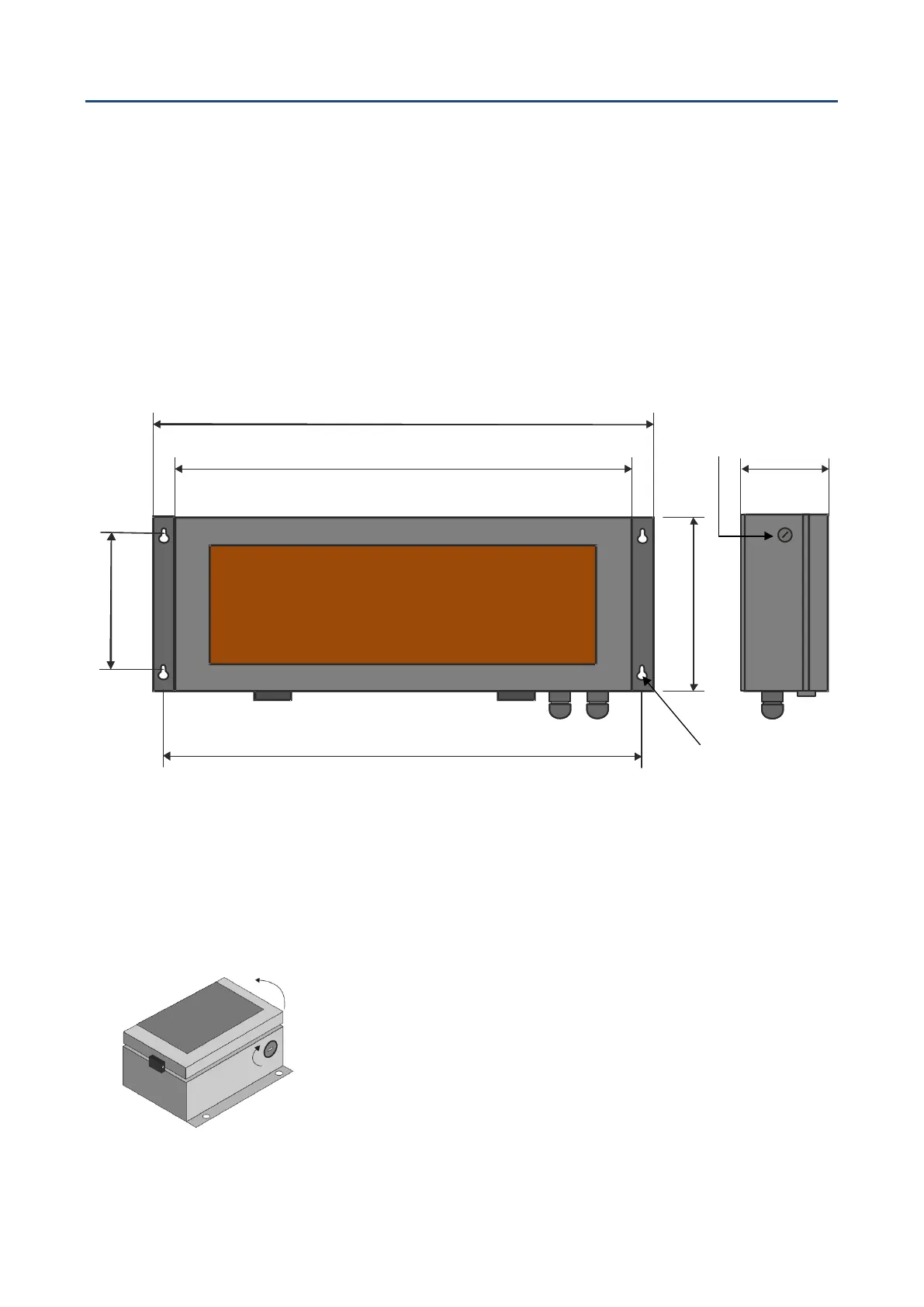

Mounting
191
145
100
503 (685)
450 (632)
477, (659)
Ø7 mm notch
Ø13.5 mm hole
Dimensions for FD100A6 (6digits)
are shown in brackets
Two cable glands
M20x1.5 mm
Lock for door on sides
The display unit can be mounted with four screws, one at each corner. The diameter of the screw must be
between 5.5 and 6.5 mm. The unit may be mounted to a steel or aluminum structure, to wood with
minimum thickness of 20 mm, or to a material of equivalent or better strength.
To open the case door
There are quick locks on the both sides of the case. The door
can be unlocked by turning side locks towards the rear of the
case.
Warning! Only a qualified electrician is allowed to open the
enclosure.
