Nokia 1100 Wiring Diagram

nokia
CONFIDENTIAL

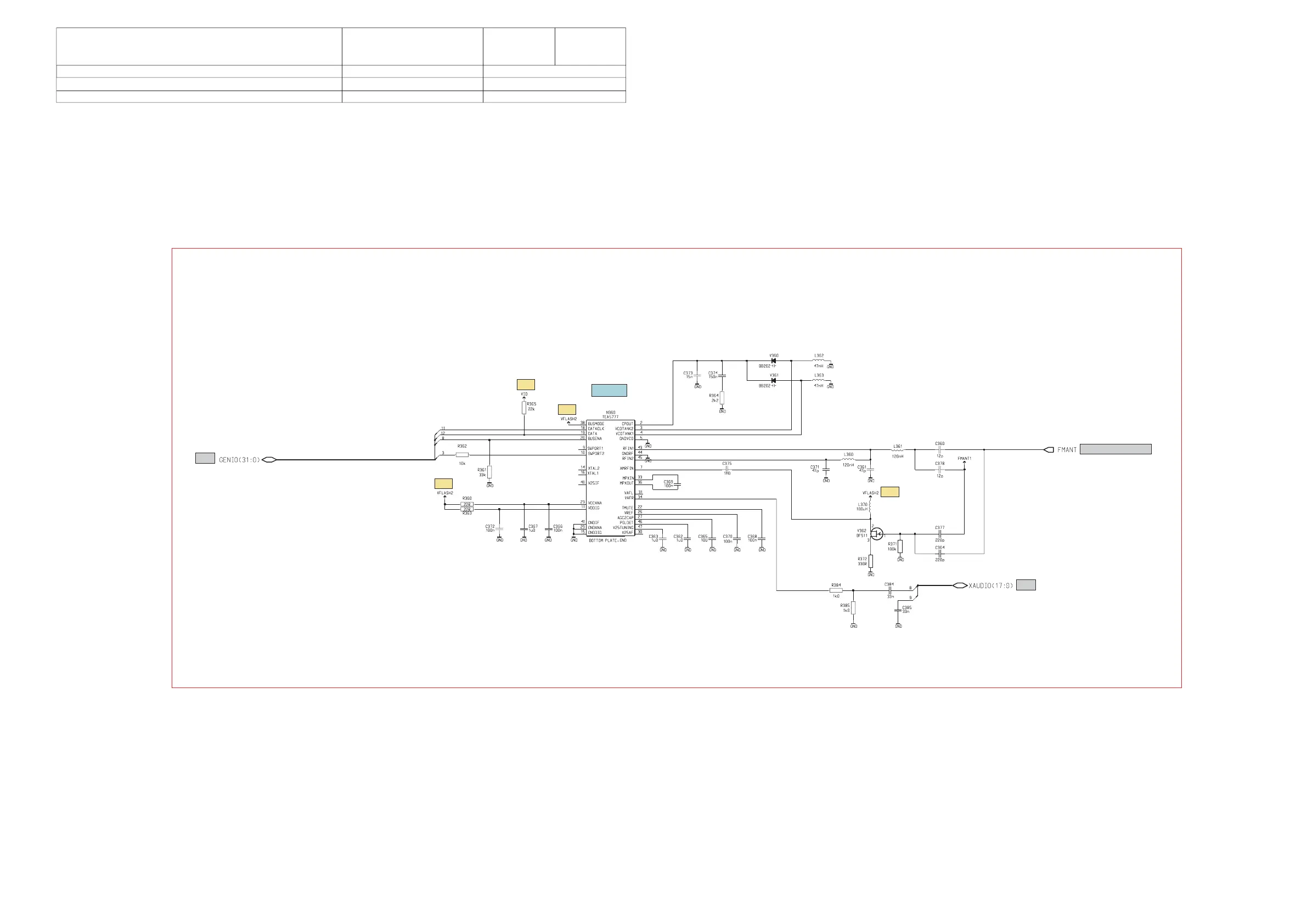

6(9)
RH-18 (1100) / RM-4 (2300)
(PWB) Version 1AW_09 / 1fg_05
FM Radio
Version 3.0 Approved
FM radio
UPP
UEM
Bottom connector
2.8V
2.8V
1.8V
2.8V
N2300 only
Customer Care Europe, Middle East & Africa
SCCE Training Group
2004 Nokia Corporation -© Only for training and service purposes
Only for training and service purposes
23.02.2004

Nokia 1100 Specifications

General

FM radio	No
Ringer type	Monophonic
Operating frequency	900, 1800 MHz
Product color	Black
Multimedia Messaging Service (MMS)	Multimedia Messaging Service (MMS) is a standard way to send messages that include multimedia content to and from a mobile phone over a cellular network
Battery type	BL-5C
Talk time (2G)	4.5 h
Standby time (2G)	6.5 h
Display type	-
Display resolution	96 x 65 pixels

Weight and Dimensions

Depth	46 mm
Width	106 mm
Height	20 mm
Weight	86 g
