nokia
CONFIDENTIAL
8(9)
1) 26MHz at B600
2) 26MHz RFCLK at R420
3) 32kHz at C209
4) 32kHz at C210
5) CBUSCLK at J406
6) CBUSDATA at J407
7) CBUSENX at J408
8) DET at R709 Power level 19 9) DET at R709 Power level 5
10) RFBUSCLK at J421
11) RFBUSDATA at J422
12) RFBUSCLK at J423
13) RX I/Q burst mode at J600-603
14) Sleepclk at J404
15)TX I/Q at R610 and R611
16) TXP at C646
17) TXC at R620 Power level 19
18) TXC at R620 Power level 5
RH-18 (1100) / RM-4 (2300)
(PWB) Version 1AW_09 / 1fg_05

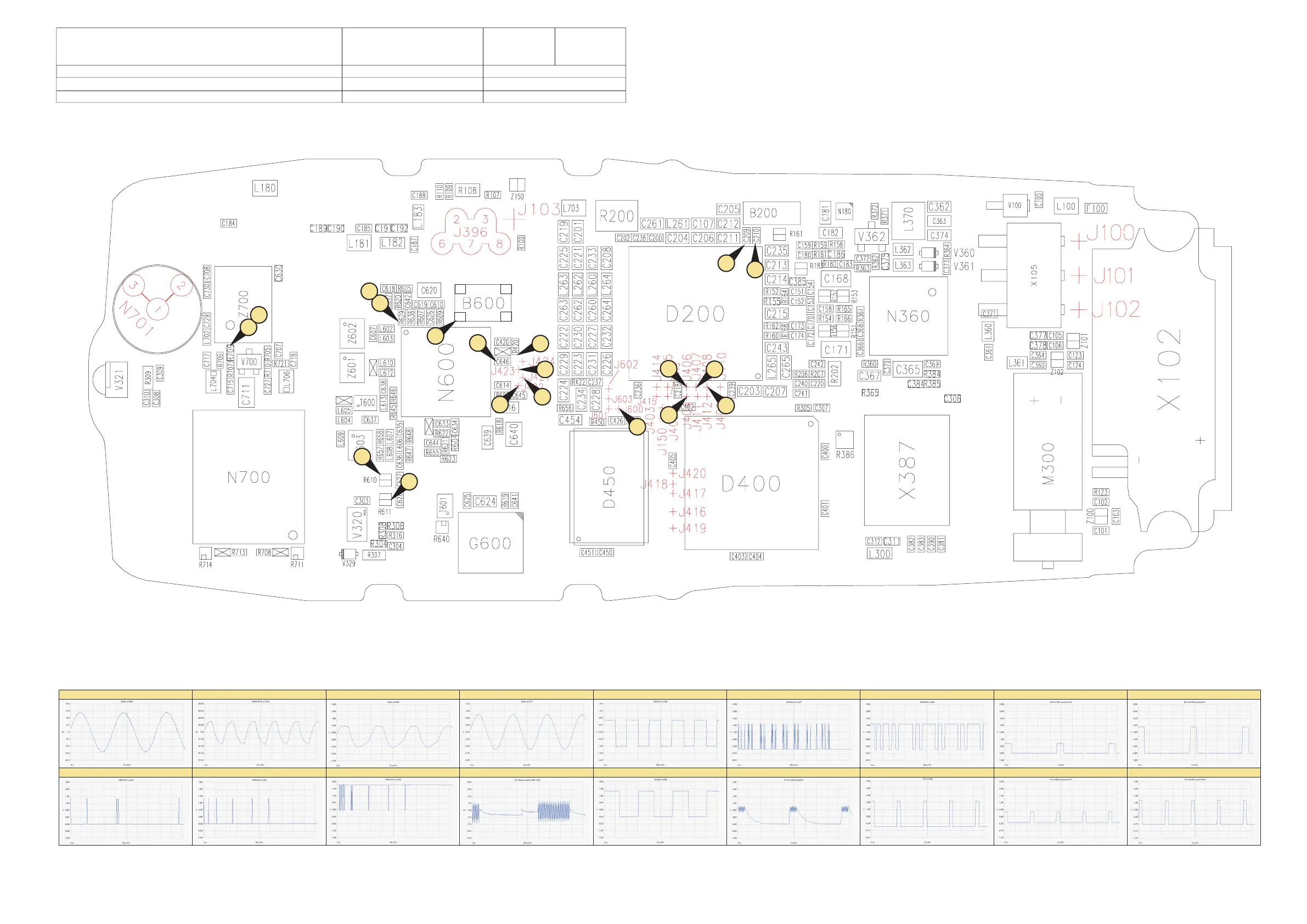

Signal Overview
Version 3.0 Approved
3
1
2
5
6
7
8
9
10
11
12
13
14
15
15
16
17
18
4
Customer Care Europe, Middle East & Africa
SCCE Training Group
2004 Nokia Corporation -© Only for training and service purposes
Only for training and service purposes
23.02.2004

Nokia 1100 Specifications

General

FM radio	No
Ringer type	Monophonic
Operating frequency	900, 1800 MHz
Product color	Black
Multimedia Messaging Service (MMS)	Multimedia Messaging Service (MMS) is a standard way to send messages that include multimedia content to and from a mobile phone over a cellular network
Battery type	BL-5C
Talk time (2G)	4.5 h
Standby time (2G)	6.5 h
Display type	-
Display resolution	96 x 65 pixels

Weight and Dimensions

Depth	46 mm
Width	106 mm
Height	20 mm
Weight	86 g
