14 Confidential • Copyright © 2010 NOKIA • All rights reserved Version 1.0 ISSUE 1

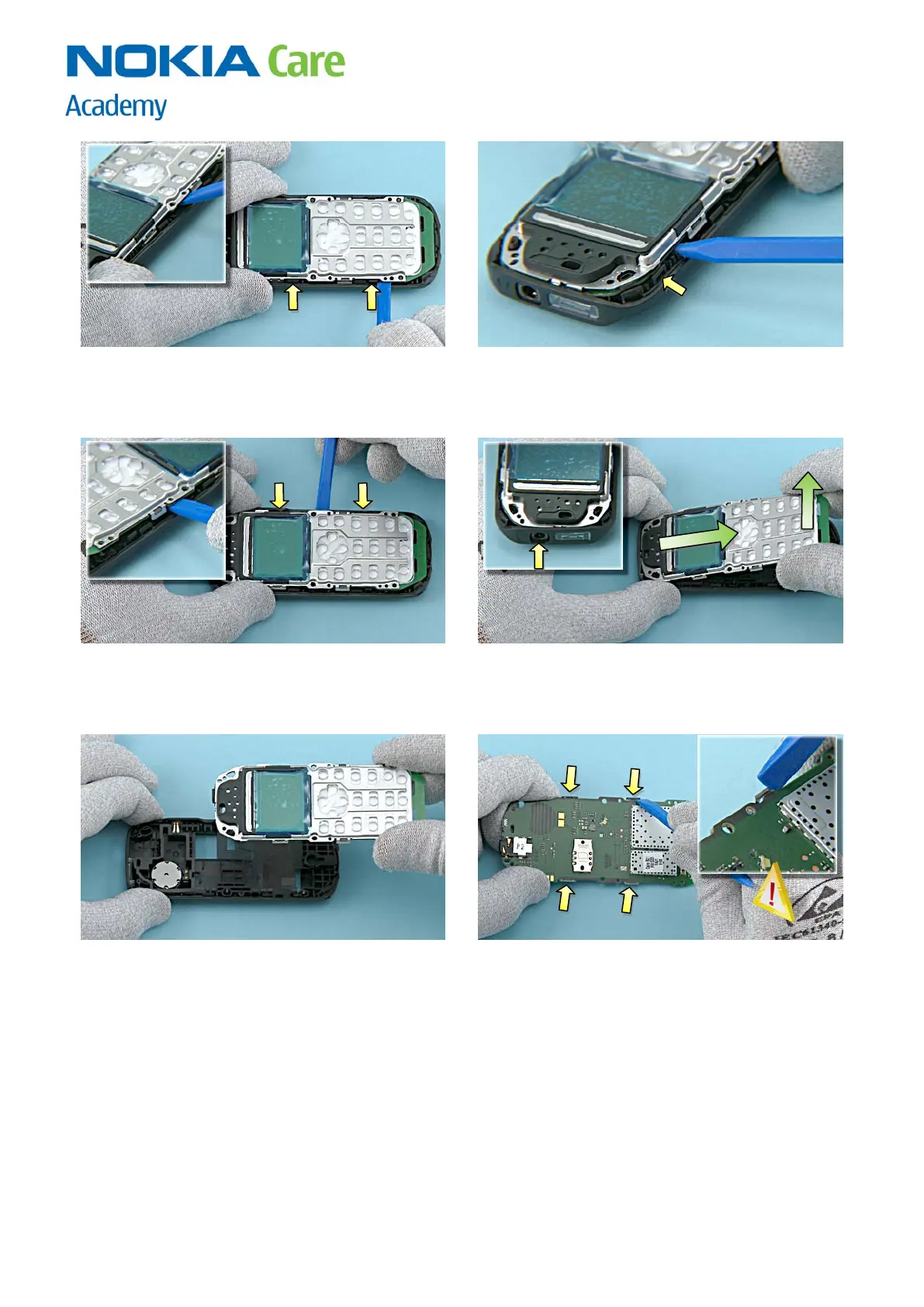

13) Release the two clips holding the ENGINE
BOARD/UI SHIELDING with the SS-93.
14) Release the third clip as shown with the sharp
end of the SS-93.
15) Release also the clips on the other side with the
SS-93.
16) Lift up the bottom end of the ENGINE BOARD/UI
SHIELDING. Next pull the ENGINE BOARD/UI
SHIELDING to direction shown, so that the audio
jack is properly released from the D-COVER.
17) The ENGINE BOARD/UI SHIELDING can be
separated from the D-COVER.
18) Release the four shown clips with the SS-93, to
release the UI SHIELDING.
