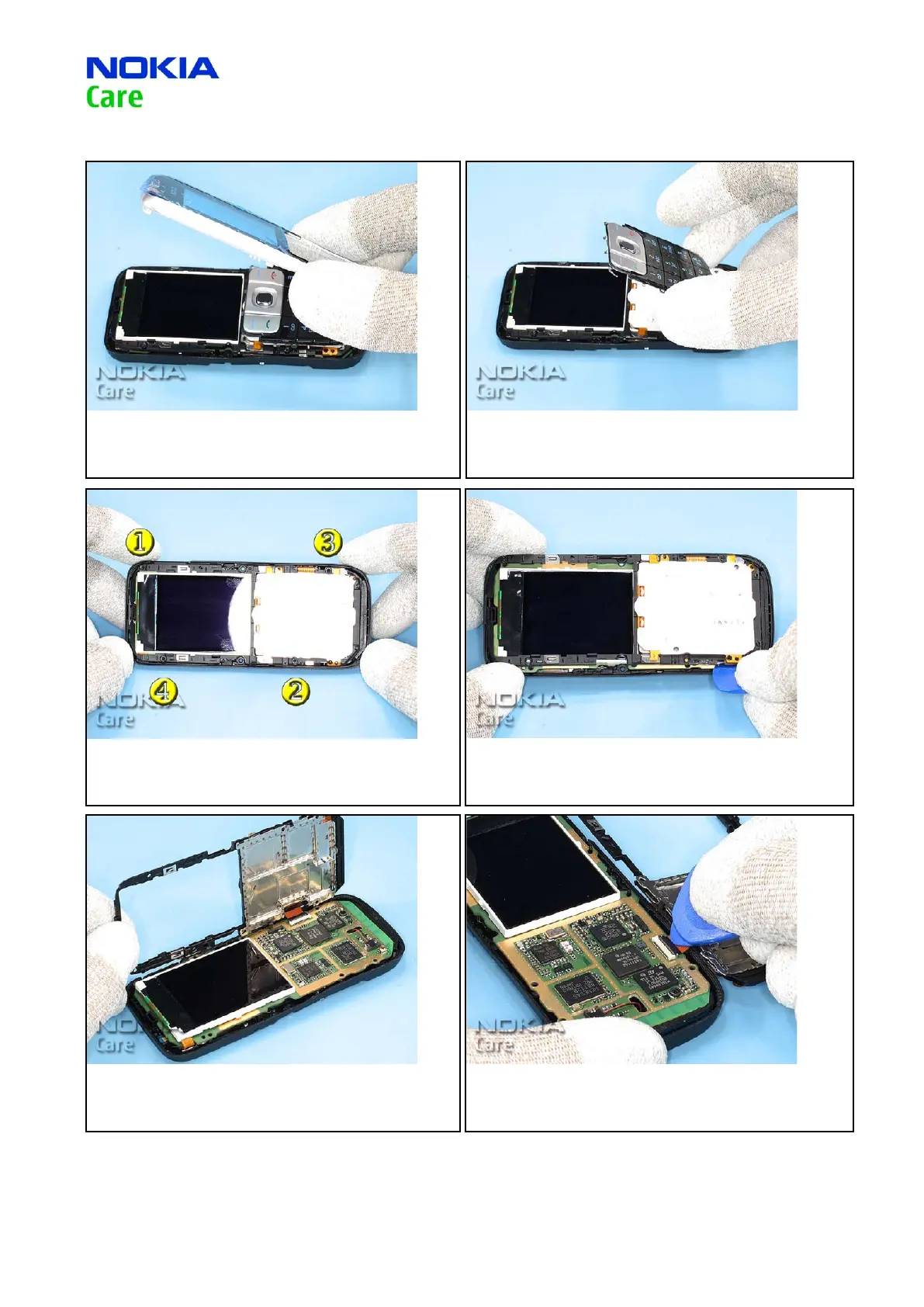

7. Now the A-COVER can be lifted up easily.
8. The KEYMAT can be lifted up.
9. Remove the 4 Torx Plus size 4 screws in the shown order.
10. Release the clips of the C-COVER ASSY.
11.Carefully ip over the C-COVER ASSY now, keep in mind that
the ex foil is still connected.
12. Be double careful while opening the connector with the SRT-
6.
