UPPER BLOCK DISASSEMBLY13.

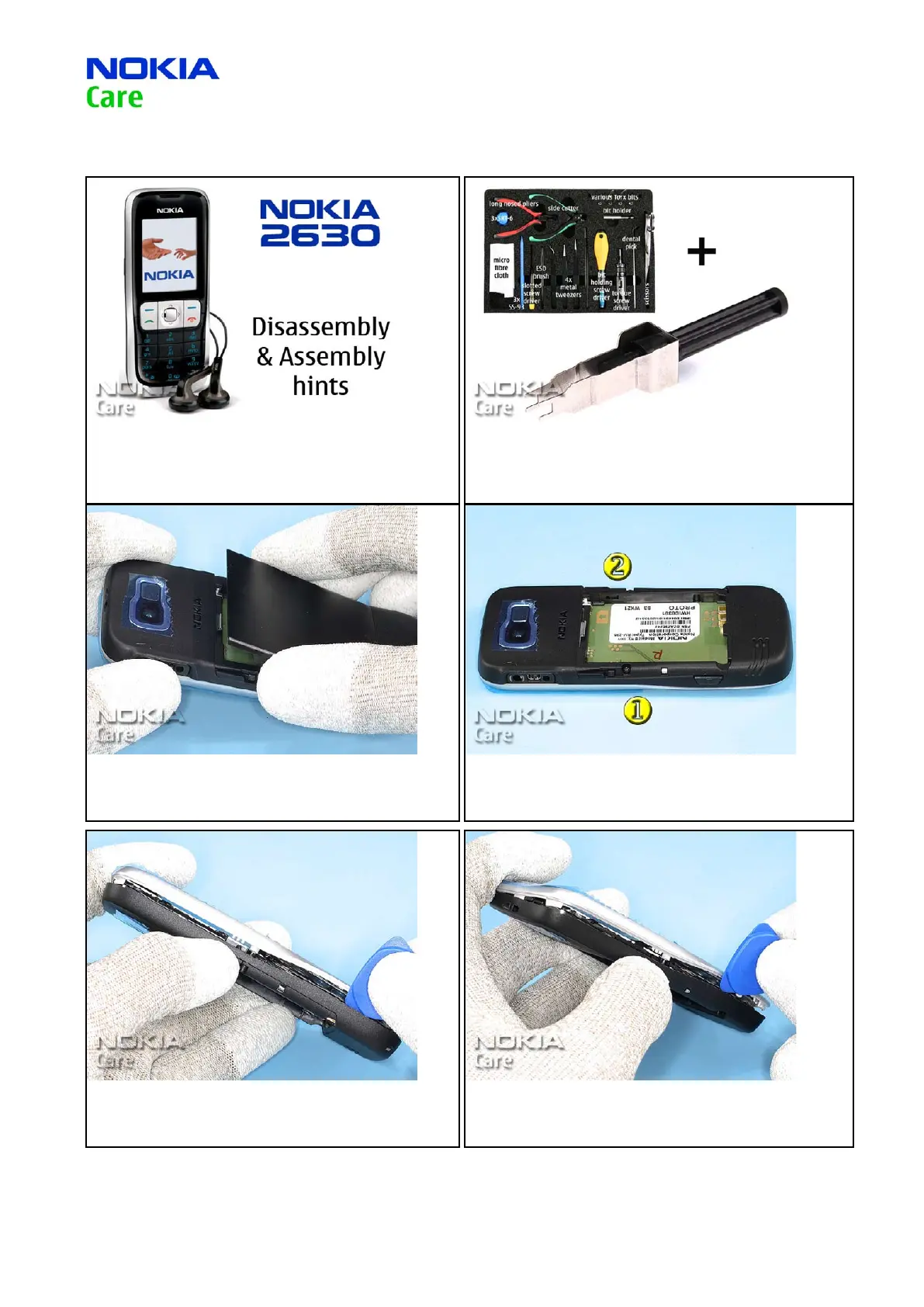

1. Nokia 2630 disassembly and assembly hints
2. You will need the Nokia Standard Toolkit version 2 as well
as the camera removal tool SS-88. Also refer to the General
Mechanical Guideline Video for additional hints about the tools
and component handling.
3. Cover all sensitive surfaces with a protective lm. Unlock
and remove the C-COVER ASSY. Remove the battery if it is still
inserted before going on.
4. Remove both Torx Plus size 4 screws in the order shown.
5. Gently pry open the clips of the A-COVER with the SRT-6…
6....on both sides.
To Next Page
