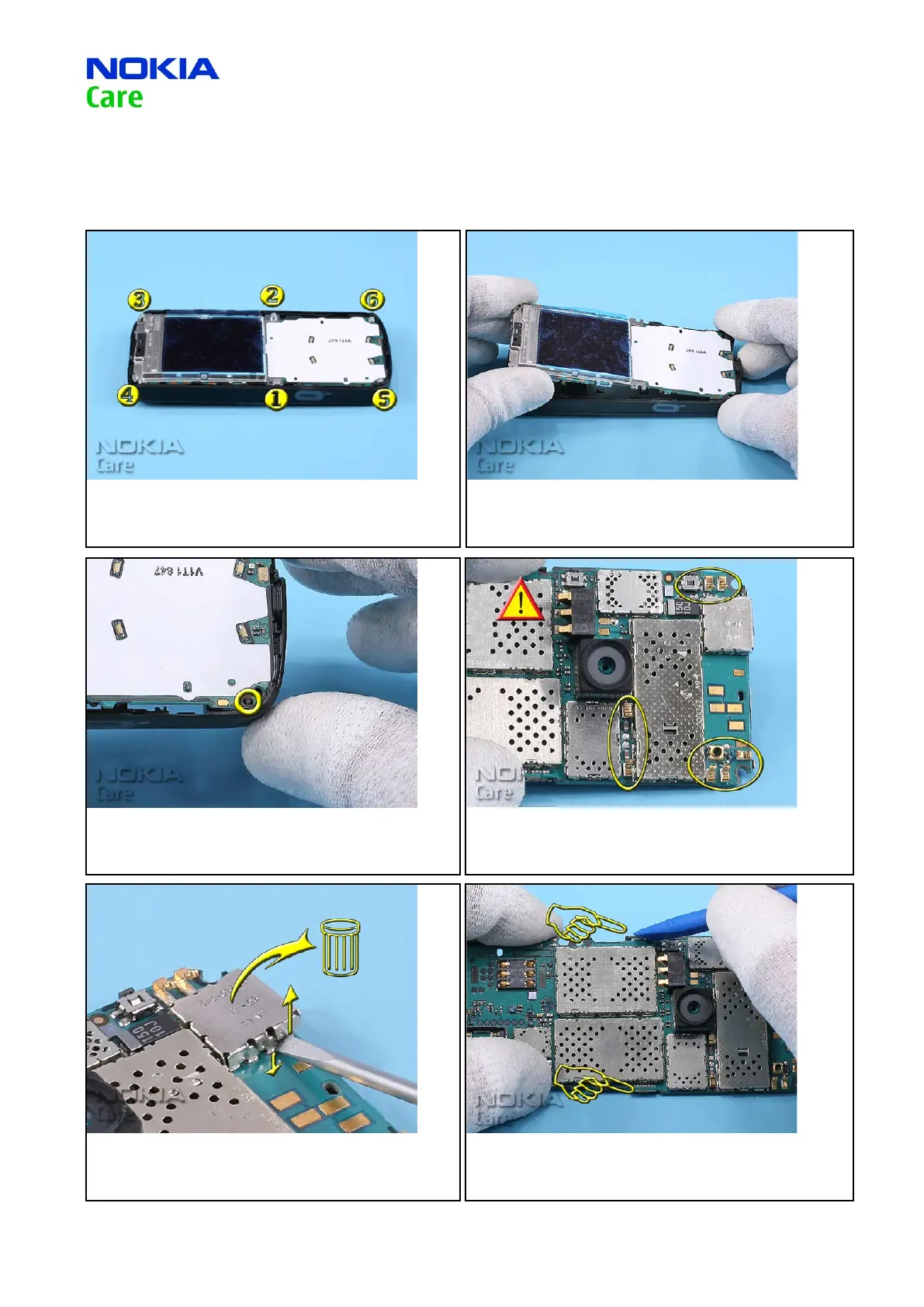

7. Unlock the screws in the order shown.
8. Lift the Engine Module a bit as shown.
9. Gently, remove the ENGINE MODULE. Avoid damaging the
guide pin of the B-COVER.
10. Take a special care to the spring contacts on the ENGINE
MODULE.
11. Use a at bladed screwdriver to open the FLEX SHIELDING
LID. Do not touch the spring contacts with the tool. Discard the
FLEX SHIELDING LID after removal.
12. Unlock the UI-SHIELD ASSY.
