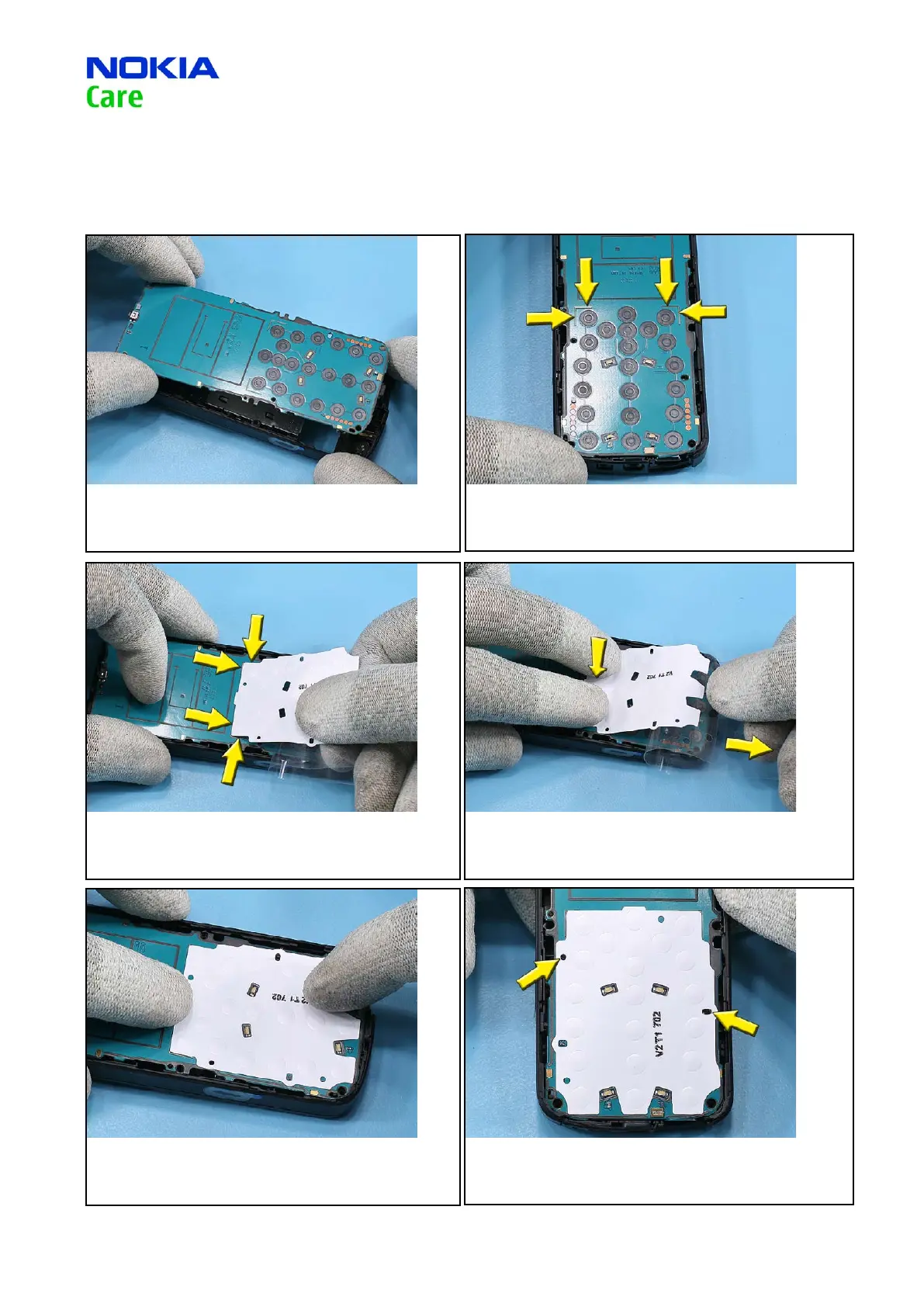

1. Place the 2CB ENGINE MODULE onto the B-COVER ASSY.
2. Find the two corner markers. Check if the surface of the 2CB
ENGINE MODULE is clean and no residue is remaining.
3. Use a new DOME SHEET and ip back a part of the protective
lm. Align the DOME SHEET with the corner markings and ...
4. ... afx it whilst removing the protective lm.
5. Press the DOME SHEET evenly onto the 2CB ENGINE MODULE
to make sure that it is glued correctly.
6. Check the correct placement and be sure that the two holes
in the DOME SHEET are aligned with ones in the 2CB ENGINE
MODULE.
DOME SHEET ALIGNMENT INSTRUCTION10.
