Nokia 3110 classic Service Manual

Training and Vendor Development
CMO Operations & Logistics
Multimedia Creation & Support COMPANY CONFIDENTIAL
14.May.2007
11
Service Manual 3110c RM-237 / 3109c RM-274 Copyright © 2007 NOKIA Corporation. All rights reserved.
Draft 4.0
MGR
Page
(37)
DISASSEMBLY INSTRUCTION8.

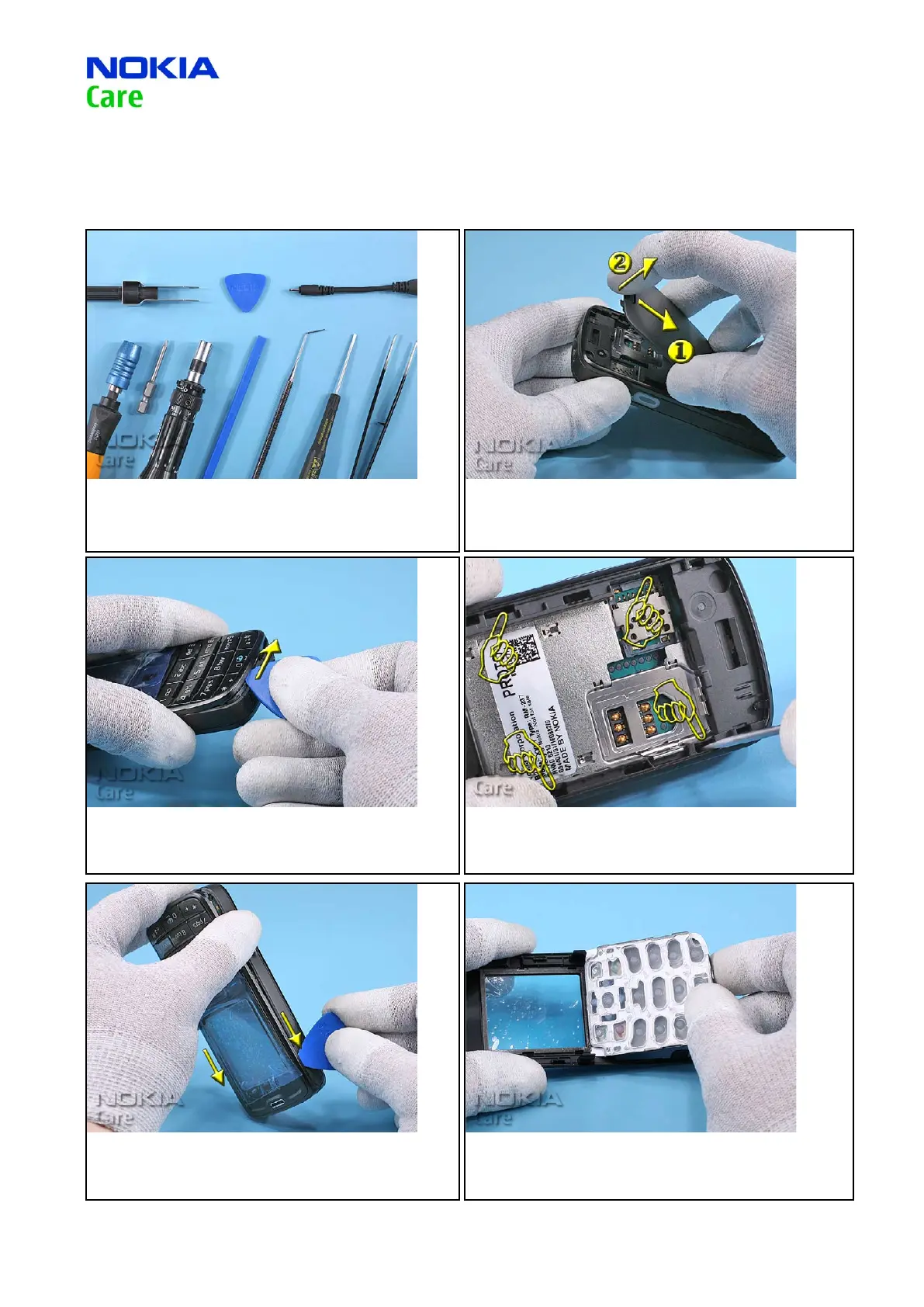

1. Needed tools: A Torx driver, a Torx Plus© size 6 bit, a torque
driver, the SS-93 opening tool, a dental pick, at bladed
screwdriver, metal tweezers, the SS-45 camera opening tool
(RM-237 only), the SRT-6 and the DC plug.
2. Unlock and open the C-COVER ASSEMBLY.
3. First unlock the A-COVER with the SRT-6 at the lower side
and lift it a bit.
4. Release the marked clips with the at bladed screwdriver...
5. ...and then, carefully separate the A-COVER from the unit by
slighting the SRT-6 along the edges of the cover.
6. Remove the Keymat and discard the A-COVER.
