Nokia 3110 classic Service Manual

Training and Vendor Development
CMO Operations & Logistics
Multimedia Creation & Support COMPANY CONFIDENTIAL
14.May.2007
19
Service Manual 3110c RM-237 / 3109c RM-274 Copyright © 2007 NOKIA Corporation. All rights reserved.
Draft 4.0
MGR
Page
(37)

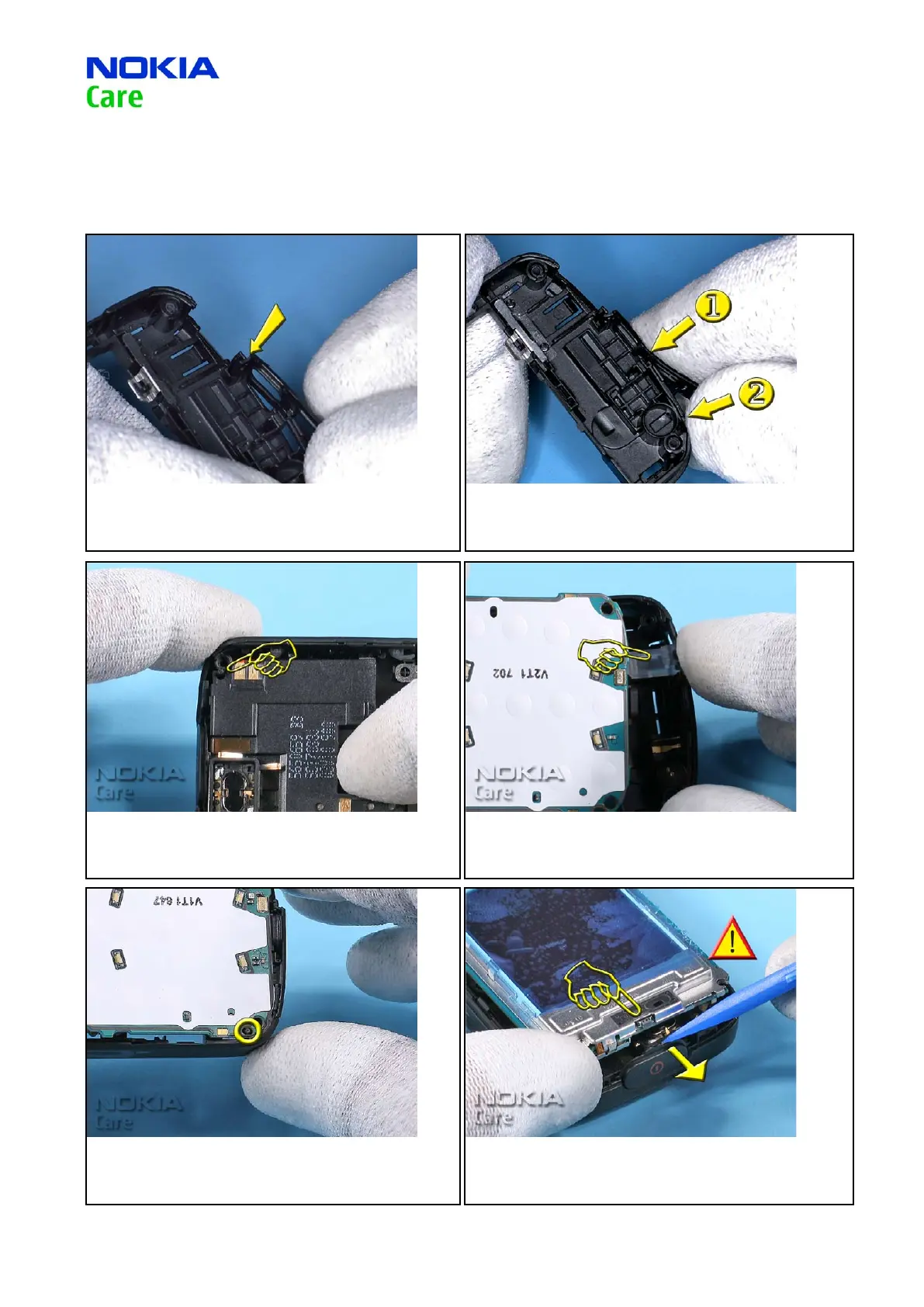

7. First slide the CONNECTOR COVER from top into the guiding
from the B-COVER.
8. Bent the CONNECTOR COVER a bit and close the snaps in the
order shown.
9. Note the guide pin of the B-COVER when inserting the
ANTENNA MODULE.
10. Hold the USB DOOR in place while tting the ENGINE
MODULE...
11. Take care to the guide pin of the B-COVER.
12. First, bend back the power key a bit to avoid damaging of
the power switch and then place the ENGINE MODULE onto the
B-COVER.
