Nokia 3310 User Manual

©2001 Nokia Mobile Phones. All rights reserved.
Getting started
23
Getting started

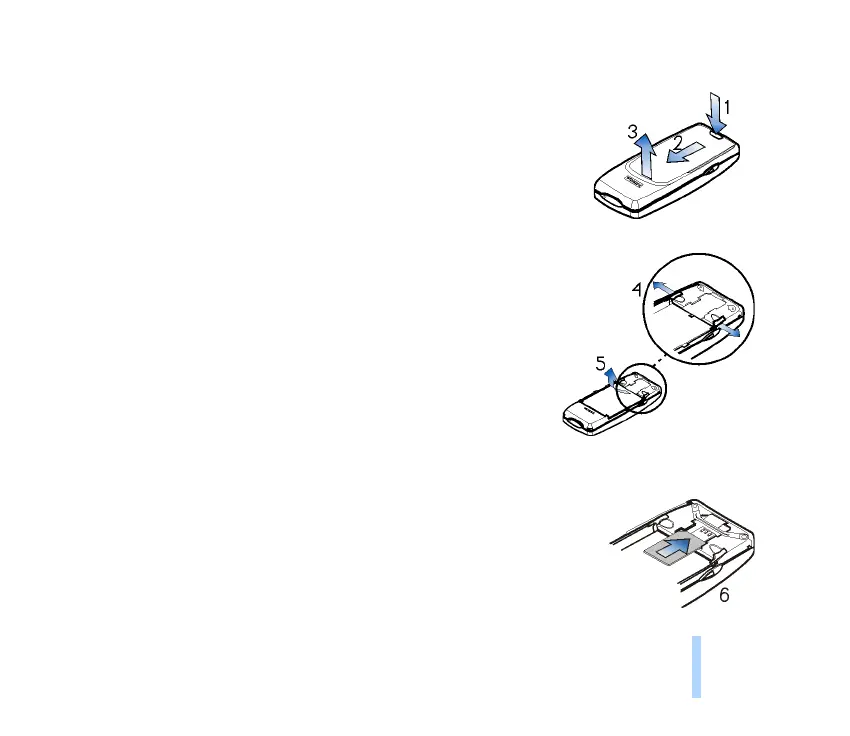

1. Remove the back cover:
Press the locking catch (1), slide the cover (2), and lift the cover (3).
2. Remove the battery:
Push the two release catches in the opposite directions (4) and
remove the battery (5).
3. Insert the SIM card:
Slide the SIM card carefully into the SIM card slot (6).
Make sure that the golden connectors on the card are facing downwards
and that the bevelled corner is on the left.

Nokia 3310 Specifications

General

FM radio	No
Ringer type	Monophonic
Networking type	GSM
Operating frequency	GSM 900 / GSM 1800 MHz
Battery type	BLC-2, BMC-3
Standby time (2G)	55 h

Weight and Dimensions

Depth	48 mm
Width	113 mm
Height	22 mm
Weight	133 g
