Nokia 3710 fold
RM-509/RM-510
Service Manual Level 1&2
9
Confidential
Copyright © 2009 NOKIA
All rights reserved
Version 2.0
ISSUE 1

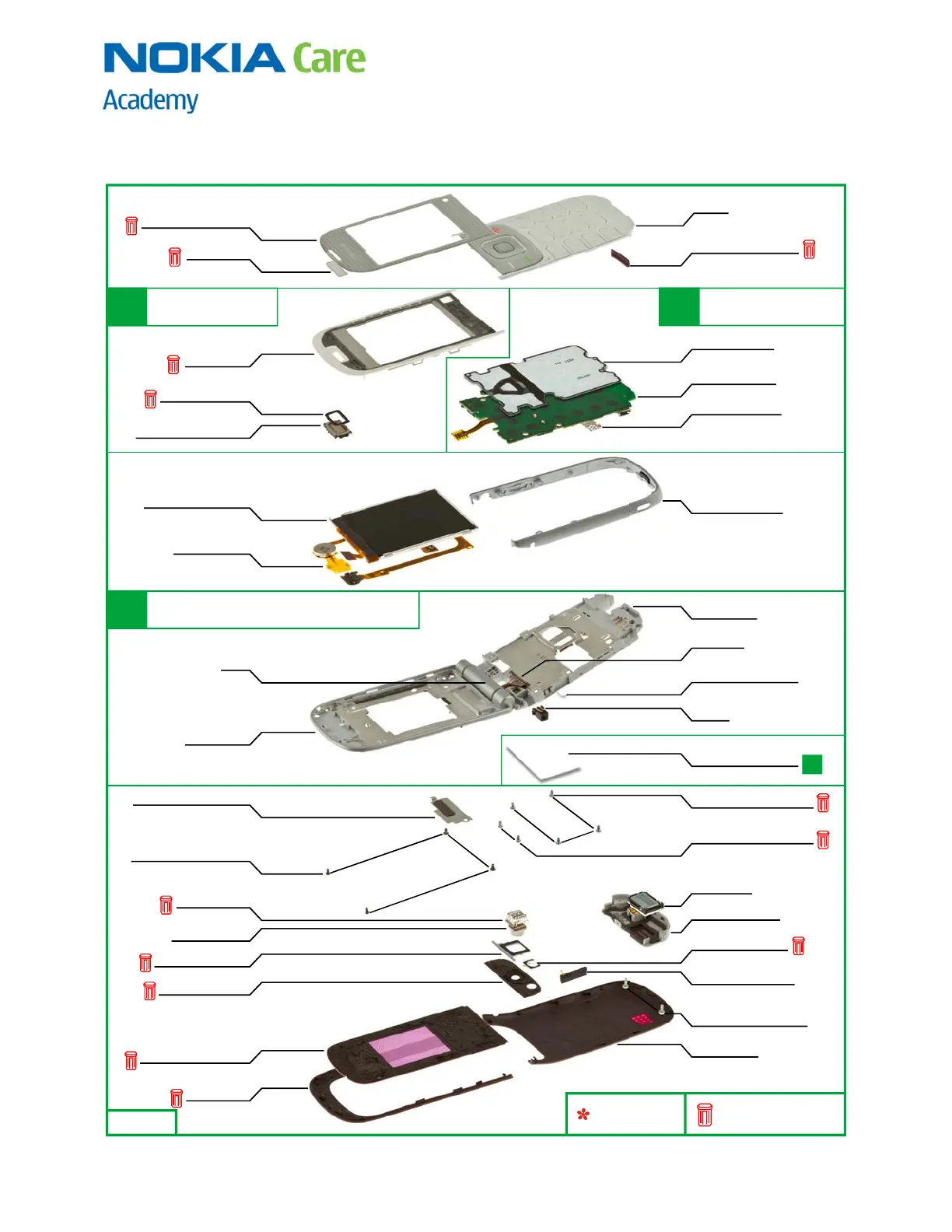

7. EXPLODED VIEW
Only available as
assembly
These parts can not be
reused after removal
Ver. 2.0
LIGHTSWAPPACKAGE
(I0207 - I0210)
A3
HINGE ASSY
(I0005, I0101-I0102, I0201-I0202, I9998)
A1
A3
DISPLAY WINDOW ASSY
I0012
B-COVER TRIM
I0010
EARPIECE ADHESIVE
I0009
EARP 32R 8x12x2 PETRA
I0008
EARPIECE NET
I0011
LCD AM QVGA 128x160
I0007
2TJ UI FLEX ASSY
I0006
B-COVER ASSY
I0005
CAM S.FLEX CLIP
I0211
B-COVER MCX COVER ASSY
I0004
SCREW M1.4X2.2 TORX+ 4
I0003
CAMERA MODULE
I0212
CAMERA FRAME ASSY
I0214
CAMERA BEZEL ASSY
I0216
A-COVER WINDOW ASSY
I0001
A-COVER ASSY
I0002
HINGE
I0102
KEYPAD
I0203
RUBBER STOPPER ASSY
I0204
DOMESHEET ASSY
I0207
LIGHT SWAP PWB
I0208
GPS SHIELDING LID
I0209
C-COVER TRIM ASSY
I0206
C-COVER ASSY
I0202
MCX CABLE
I0101
DC JACK
I0201
WATER INGRESS LABEL
I9998
TYPE LABEL
I0210
SCREW M1.4X2.5 TORX+ 4
I0218
IHF SPEAKER
I0213
ANTENNA MODULE
I0217
SCREW M1.4X3.2 TORX+ 4
I0219
SCREW RF1.4X4 TORX+ 6
I0220
BT ANTENNA MODULE
I0205
FLASHLENS LID ASSY
I0215
D-COVER ASSY
I0221
B-COVER TRIM ASSY
(I0008 - I0010)
A2
