Nokia 520 User Manual

7. Press the back of the cover until it snaps into place.
Insert the memory card
Learn how to insert the memory card.
Use only compatible memory cards approved for use with this device. Incompatible cards may
damage the card and the device and corrupt data stored on the card.
Your phone supports memory cards with a capacity of up to 64 GB.

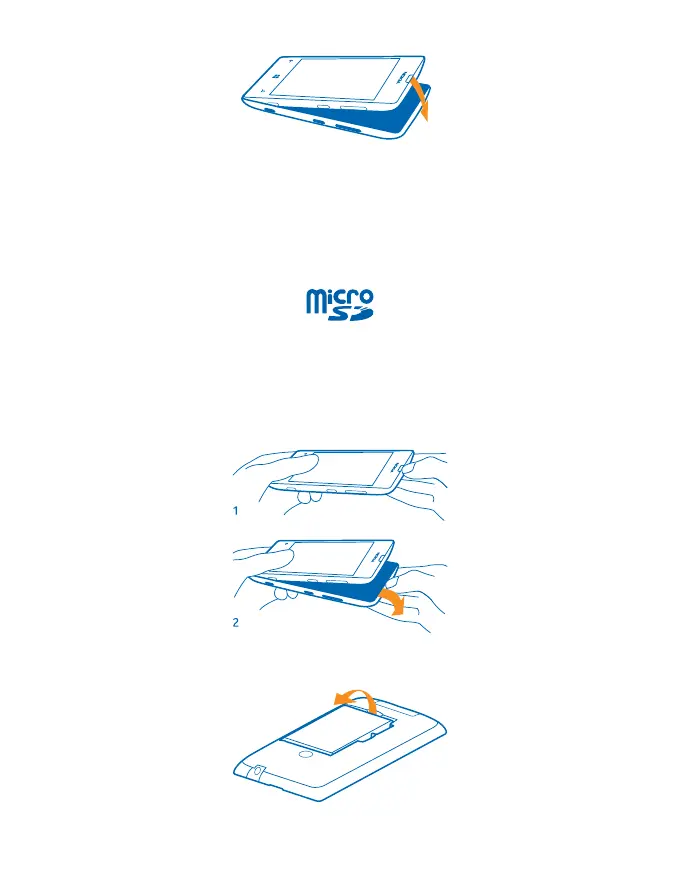

Make sure the phone is switched off.
1. At the top of the phone, put your thumbnail in the seam between the screen frame and the back
cover. Press the middle of the back cover, and bend the cover to loosen the top hooks.
2. Press and bend the bottom part of the back cover to loosen the side hooks, and remove the cover.
3. If the battery is in, lift it out.
© 2013 Nokia. All rights reserved.
9

Nokia 520 Specifications

General

Announced	2013, February
Status	Discontinued
Weight	124 g (4.37 oz)
SIM	Micro-SIM
Display Type	IPS LCD
Protection	Scratch-resistant glass
Chipset	Qualcomm MSM8227
GPU	Adreno 305
Internal Storage	8 GB
RAM	512 MB
Front Camera	No
Video	720p@30fps
Loudspeaker	Yes
3.5mm jack	Yes
WLAN	Wi-Fi 802.11 b/g/n
Bluetooth	4.0, A2DP
GPS	Yes, with A-GPS, GLONASS
NFC	No
Radio	FM radio
USB	microUSB 2.0
Sensors	Accelerometer, proximity
Battery Type	Li-Ion 1430 mAh, removable (BL-5J)
Talk time	Up to 14 h 40 min (2G) / Up to 9 h 40 min (3G)
Music play	Up to 61 h
Colors	Yellow, red, cyan, white, black
Dimensions	119.9 x 64 x 9.9 mm
Display Size	4.0 inches
Resolution	480 x 800 pixels
OS	Microsoft Windows Phone 8, upgradable to 8.1
CPU	Dual-core 1.0 GHz
Memory Card slot	microSD, up to 64 GB
Main Camera	5 MP, AF
Stand-by	Up to 360 h
