Copyright © 2007 Nokia. All rights reserved. 15
Get started

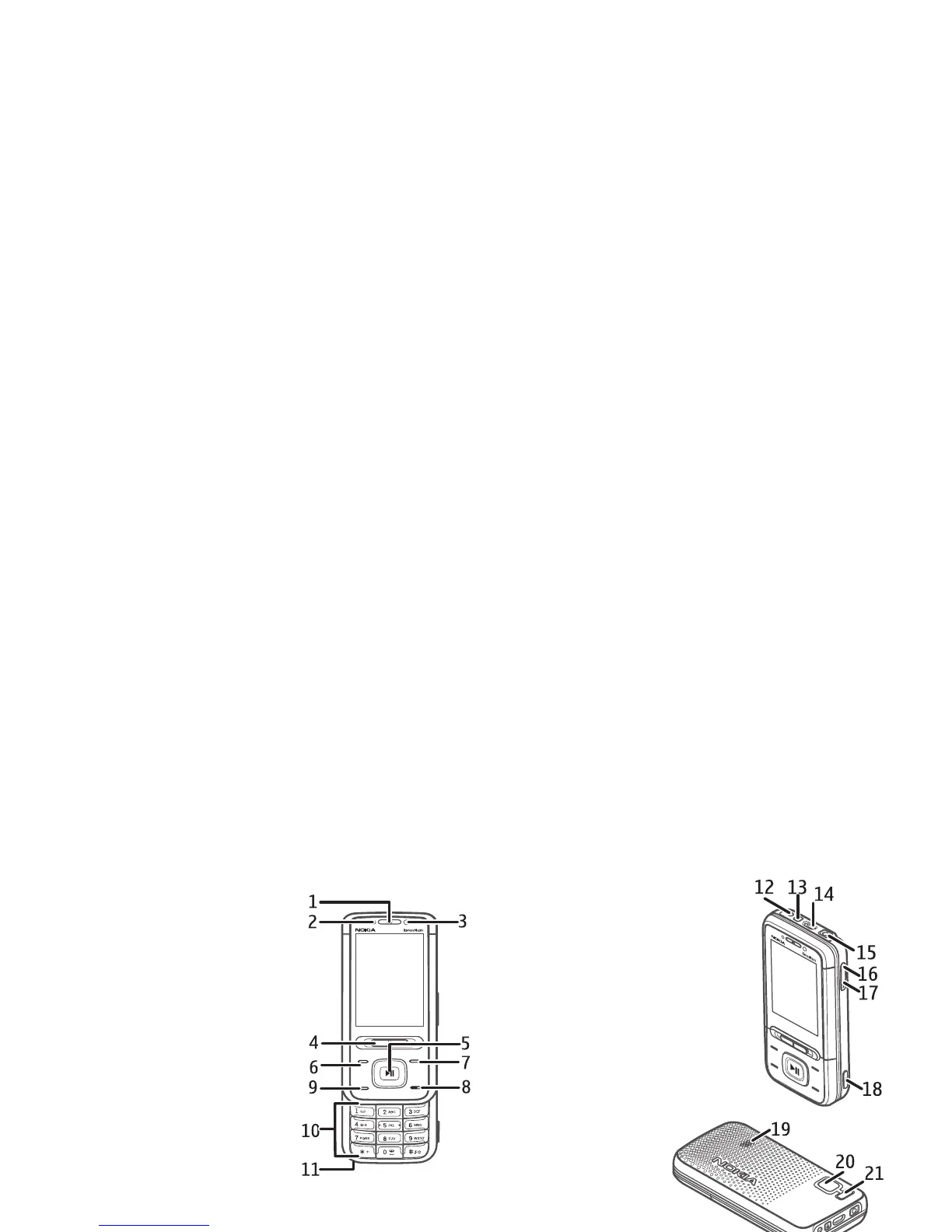

Keys and parts
1Earpiece
2 Light sensor
3 Front camera
4 Music Slider key
opens the music menu
(slide left), or opens the
radio (slide right)
5 Navi™ key: 4-way scroll key
and middle selection key
6 Left selection key
7 Right selection key
8 End key/power key;
ends calls (short key press)
and turns the phone on and
off (long key press)
9 Call key
10 Keypad
11 Wrist strap eyelet
12 Charger connector
13 Battery cover release button
14 USB connector
15 2.5 mm audio connector
16 Volume up key/PTT key
17 Volume down key
18 Camera key/auto focus
19 Loudspeaker
20 Camera lens
21 Camera flash
Warning: The following parts of this device may
contain nickel: Music Slider key. This part is not
designed for prolonged contact with the skin.
Continuous exposure to nickel on the skin may
lead to a nickel allergy.
