Nokia 5730 Xpress Music

Nokia 5730 XpressMusic RM-465
Service Manual Level 1&2
9 Confidential  Copyright © 2009 NOKIA  All rights reserved Version 1.0 ISSUE 1

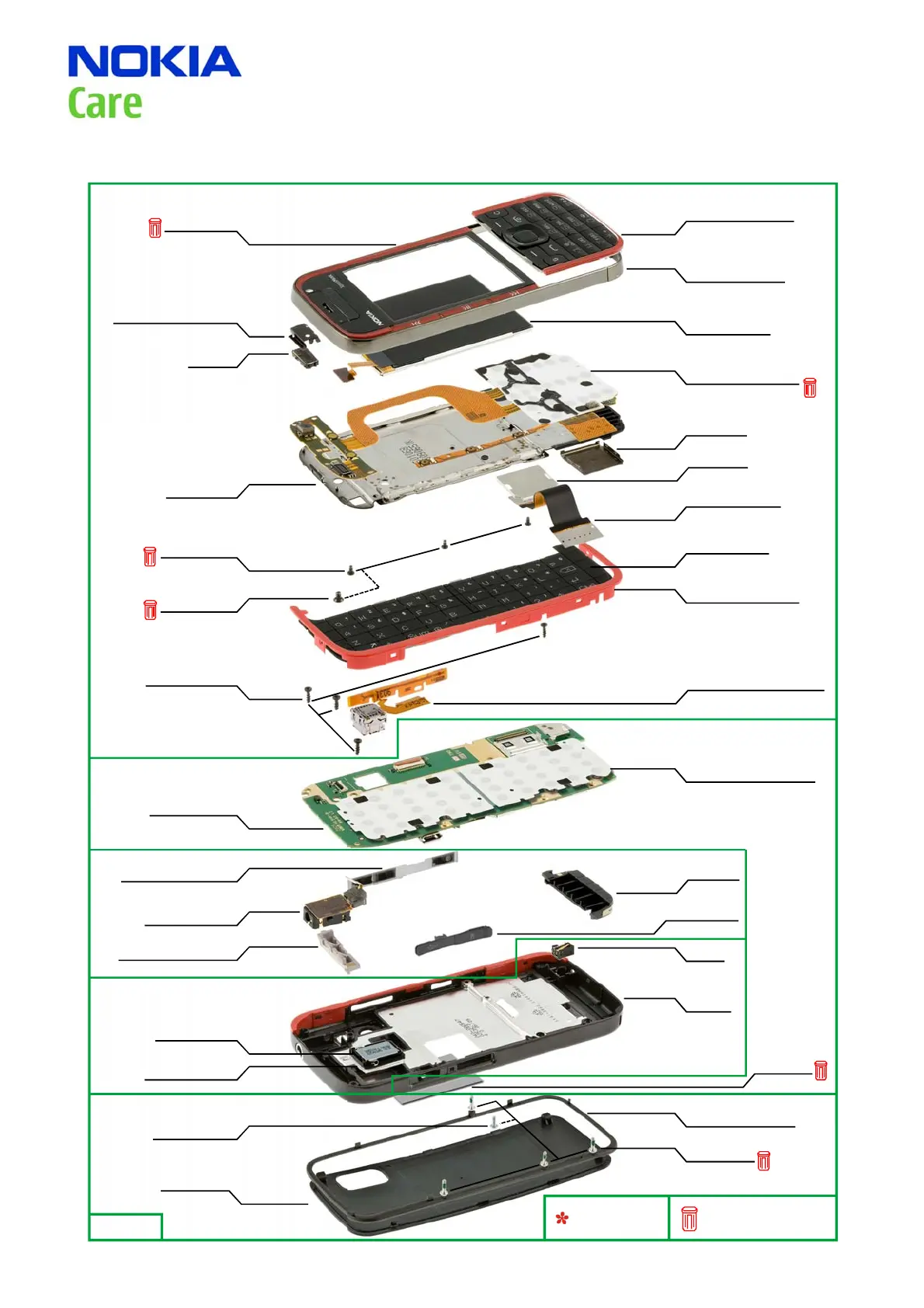

7. EXPLODED VIEW
Only available as
assembly
Ver. 1.0
These parts can not be
reused after removal
A1=LIGHT SWAP PACKAGE
(I0204-I0206, I9998)
A2=B-COVER ASSEMBLY
(I0211-I0214)
EARPIECE HOLDER METAL
I0007
T9 KEYMAT ASSEMBLY
I0003
LCD AM 240x320
I0006
SLIDE MODULE
I0101
2RS UI FLEX ASSEMBLY
I0009
EARPIECE
I0008
LIGHT SWAP PWB
I0205
QWERTY DOMESHEET ASSY
I0204
TYPE LABEL
I0206
2RP AV FLEX ASSY
I0207
VOLUME SIDE KEY ASSY
I0217
GPS/BT WLAN ANTENNA
I0215
B-COVER
I0214
ANTENNA
ASSEMBLY
I0216
USB/SD-DOOR
I0218
DONAU SPEAKER
I0212
IHF FRONT GASKET
I0213
AUDIO ACCENT BAND
I0219
SCREW 1.4X3.4
I0011
SCREW RF1.6X4.5
I0104
2RT CAMERA FLEX ASSEMBLY
I0208
BATTERY COVER
I0223
SCREW 1.4X2.5
I0010
FLEX SLIDER
I0103
2RU DYNAMIC FLEX
I0102
FLEX PLANE
I0201
SCREW 1.8X3
I0221
SCREW 1.4X4.5
I0222
QWERTY KEYMAT
I0202
ACCENT BAND QWERTY
I0203
DC JACK
I0211
A-COVER ASSEMBLY
I0002
WINDOW ASSY
I0001
