Nokia 5730 Xpress Music

Nokia 5730 XpressMusic RM-465
Service Manual Level 1&2
12 Confidential  Copyright © 2009 NOKIA  All rights reserved Version 1.0 ISSUE 1

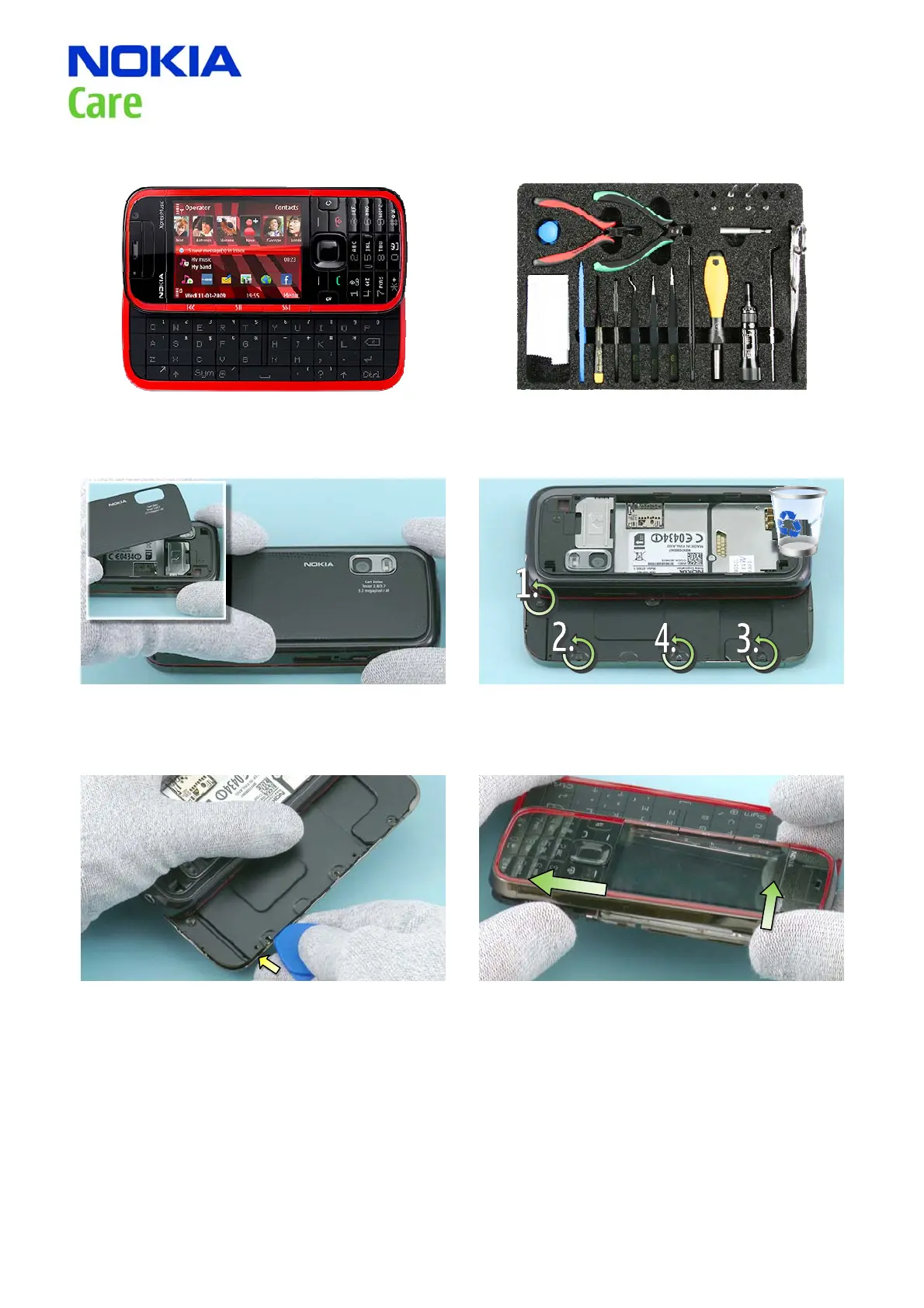

10. DISASSEMBLY INSTRUCTION
1) Nokia 5730 XpressMusic disassembly. 2) You must use the Nokia Standard Toolkit version
2.
3) Remove the BATTERY COVER. 4) Slide the phone open. Unscrew the first TORX+ 4
(M1,8 x 3) screw. Then unscrew the three TORX+ 4
(M1,4 x 2,5) screws in the order shown. Discard
them.
5) Release the A-COVER ASSEMBLY from the SLIDE
MODULE using the SRT-6. Carefully open the shown
corner.
6) Carefully lift up the top side of the A-COVER and at
the same time push it to the left so that ITU KEYMAT
latches open. Check that ITU latches are not broken.
