Nokia 5730 Xpress Music

Nokia 5730 XpressMusic RM-465
Service Manual Level 1&2
13 Confidential  Copyright © 2009 NOKIA  All rights reserved Version 1.0 ISSUE 1

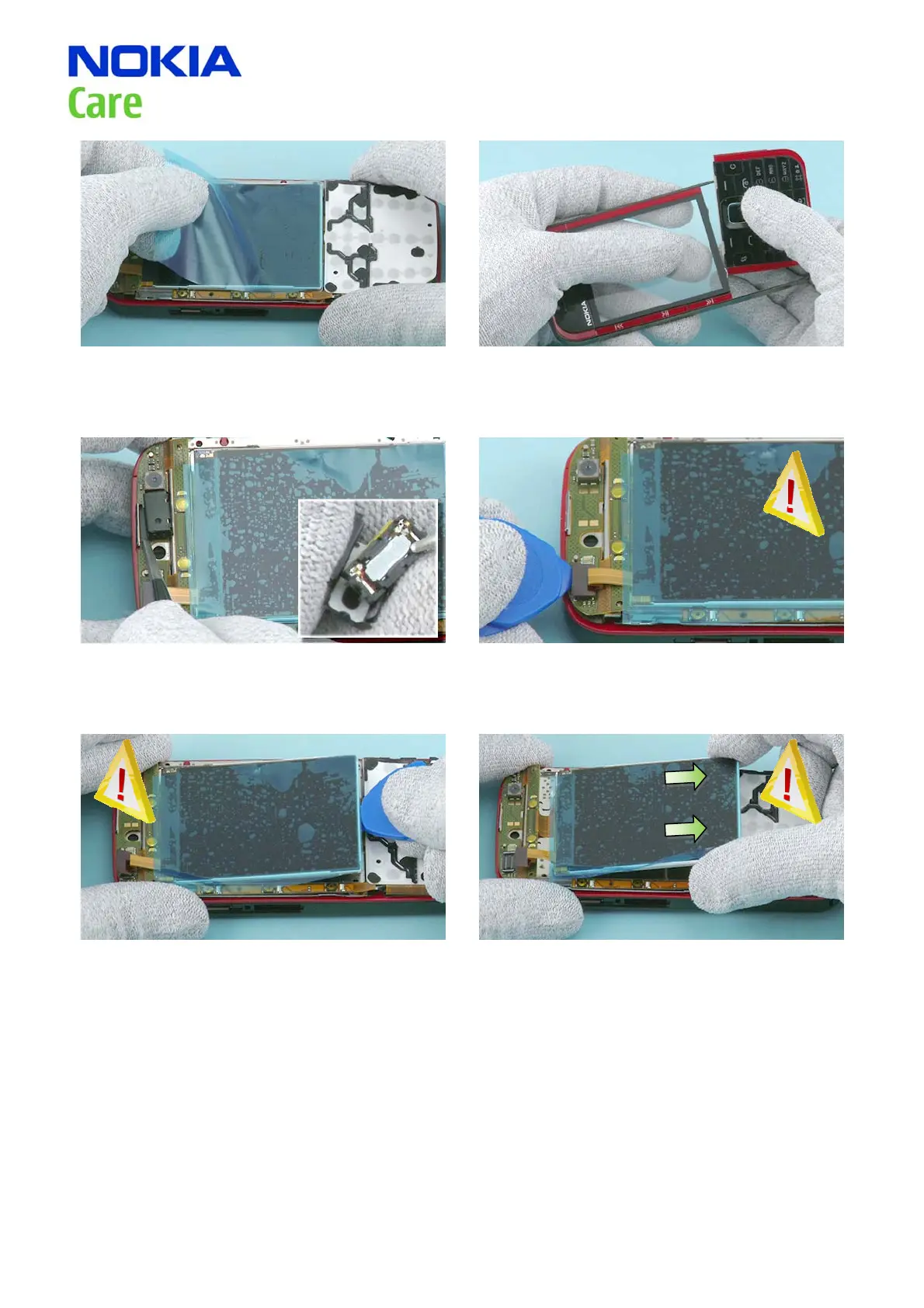

7) Remember to protect the LCD with protective
film.
8) Separate the KEYMAT ASSEMBLY from the A-COVER
ASSEMBLY.
9) Release the EARPIECE HOLDER and remove it with
the tweezers. Then separate the EARPIECE from the
EARPIECE HOLDER with the tweezers.
10) Open the LCD connector from the 2 MX UI FLEX
ASSEMBLY with the SS-93. Be careful not to damage
the connector.
11) Carefully release the LCD with the SRT-6. 12) Carefully lift up the LCD and push it into
direction shown.
