Nokia 5730 Xpress Music

Nokia 5730 XpressMusic RM-465
Service Manual Level 1&2
14 Confidential  Copyright © 2009 NOKIA  All rights reserved Version 1.0 ISSUE 1

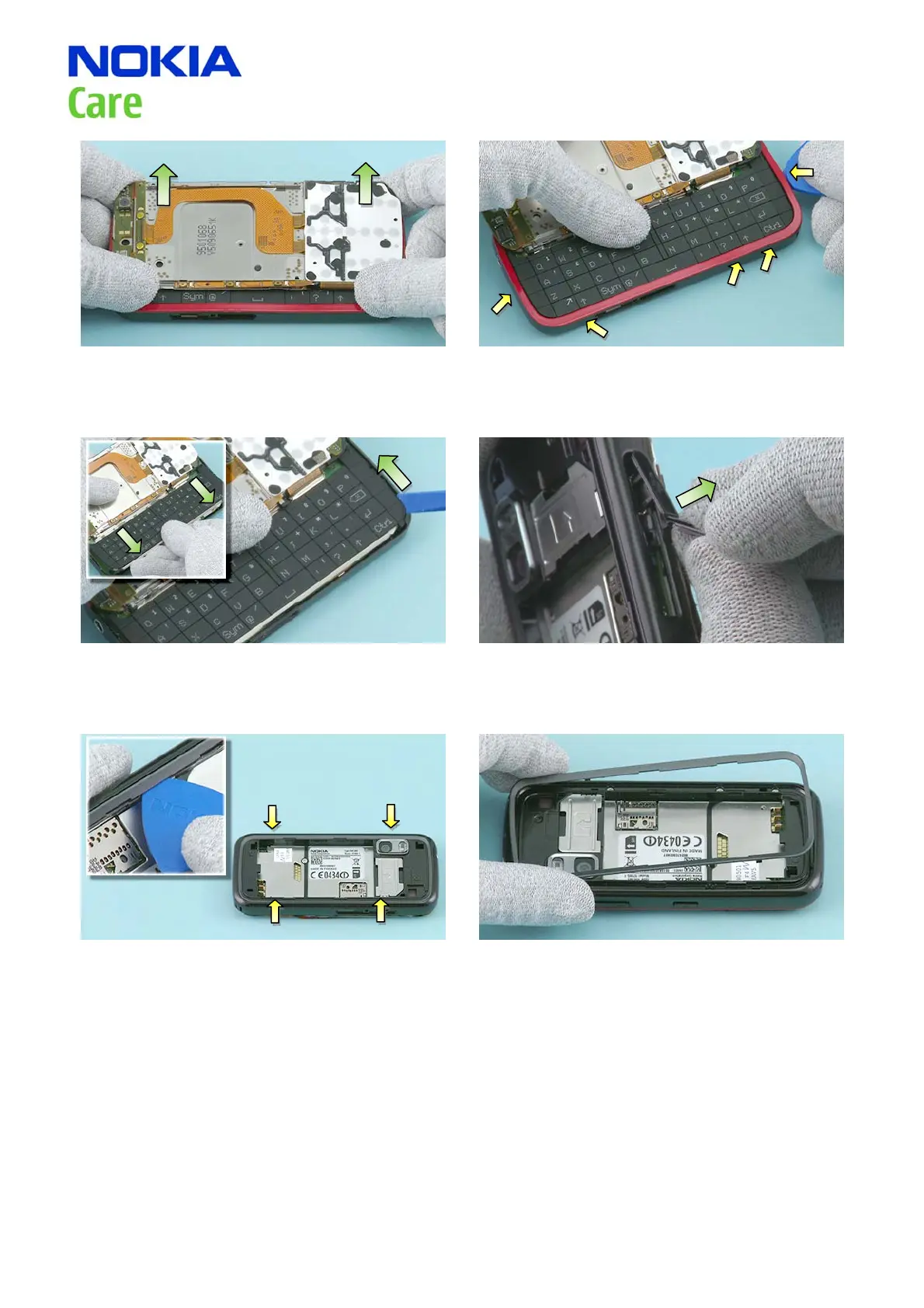

13) Slide the phone open. 14) Use the SRT-6 to release the clips holding the
ACCENT BAND QWERTY.
15) Use the SS-93 to detach the QWERTY KEYMAT
adhesive on the right side. Pull the QWERTY KEYMAT
in the direction shown.
16) Remove the USB-DOOR by pulling it to the
direction shown.
17) Turn the phone and use the SRT-6 to remove the
AUDIO ACCENT BAND from the B-Cover Assembly.
TIP: Use the SRT-6 NOKIA text facing up.
18) Separate the AUDIO ACCENT BAND.
