Nokia 5730 Xpress Music

Nokia 5730 XpressMusic RM-465
Service Manual Level 1&2
15 Confidential  Copyright © 2009 NOKIA  All rights reserved Version 1.0 ISSUE 1

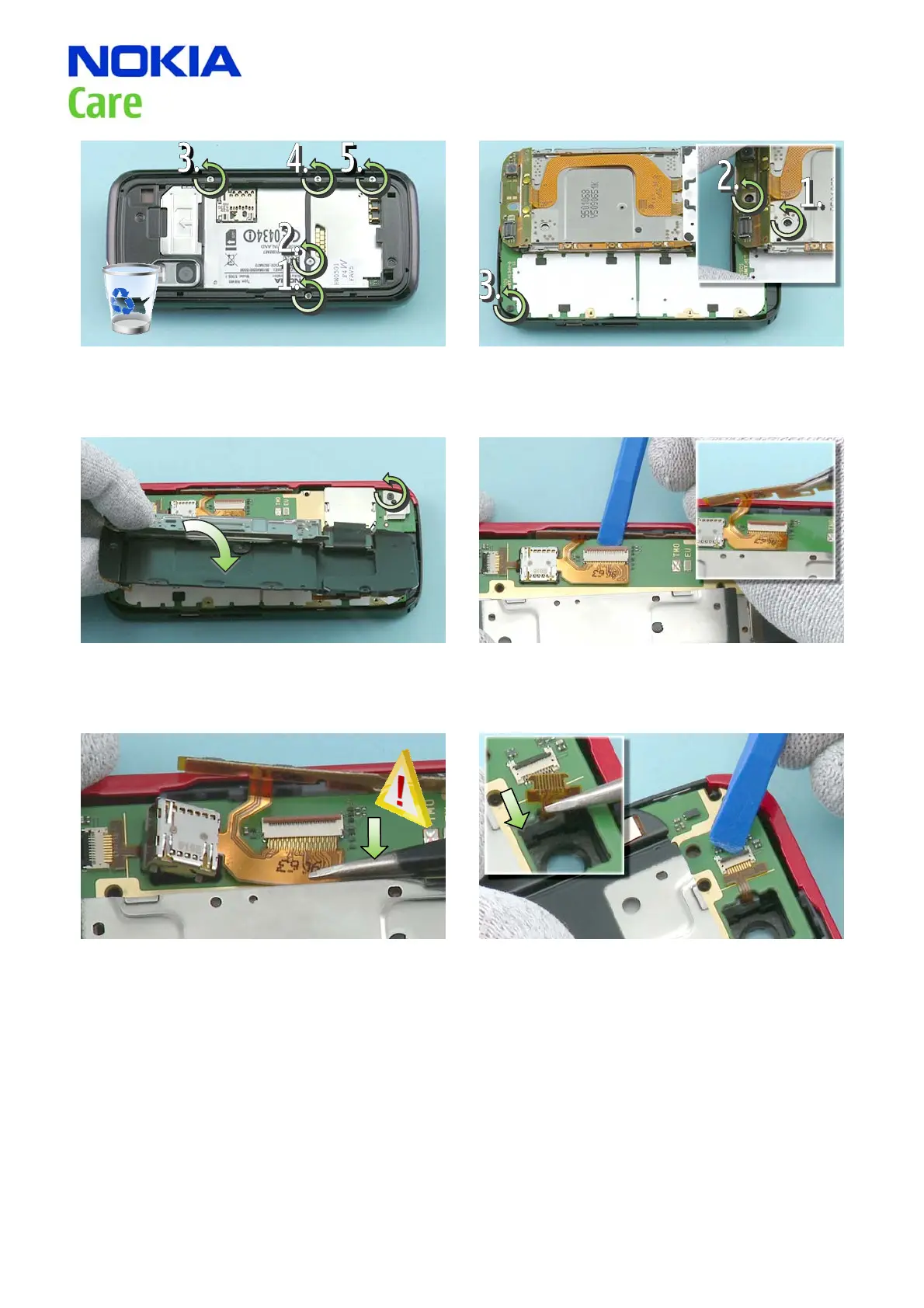

19) Unscrew these five TORX+ size 4 screws in the
order shown. Discard them.
20) Close the slide a bit until the two screws
become visible (small image). Unscrew these three
TORX+ size 4 screws.
21) Rotate the SLIDE ASSY and unscrew the TORX+
size 4 screw.
22) Use the SS-93 to open the locking mechanism of
the Camera connector. Take out the SIDEKEYFLEX
with the tweezers.
23) Pull out the Camera connector with the
tweezers and remove the Camera Assembly. Be
careful not to damage the connector.
24) Open the locking mechanism of AV connector
with the SS-93 and pull out the connector with the
tweezers.
