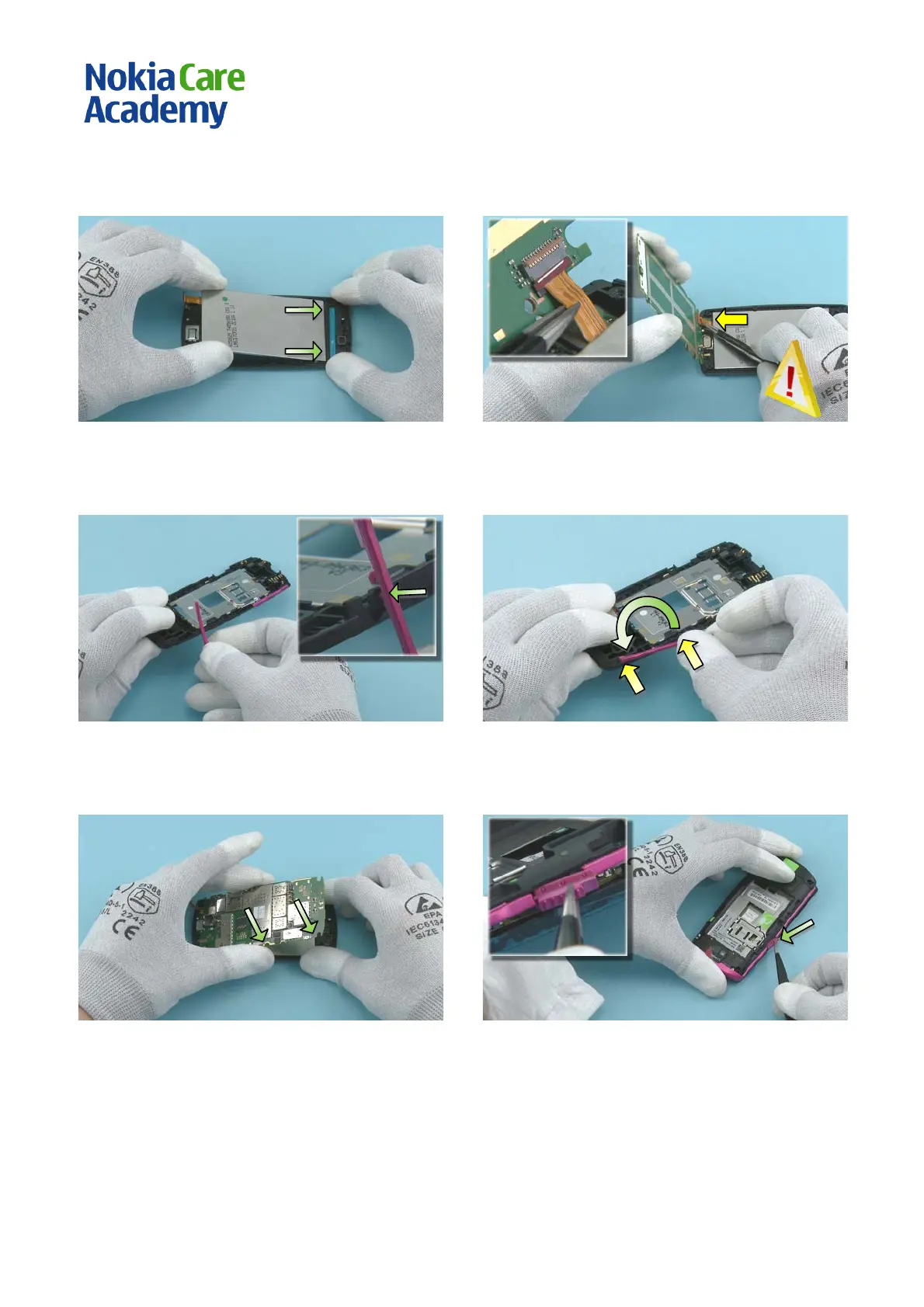

10. ASSEMBLY HINTS
1) Star t to assemble the DI SPLAY on the botto m side
of the TOUC H WI NDOW.
2) Use the tweezers to connect the ENGINE BOARD to
the DISPLAY. Be careful not to damage the connector
or any nearby components.
3) When assembling the CAMERA KEY hold it as
shown and insert the shown pin in its place.
4) Then rotate the CAMERA KEY counterclockwise and
attach the two shown clips.
5) Flip the ENGINE BOARD over on top of the TOUCH
WINDOW and push it down slightly until it snaps.
Then attach the TOUCH WINDOW connector.
6) Use the tweezers to position the LOCK KEY from
the left side. Slightly push the TOUCH WINDOW and
the C-COVER together to have the LOCK KEY in place.
