6110 Navigator RM-122
Page (44) ISSUE 4
Service Manual Level 1&2

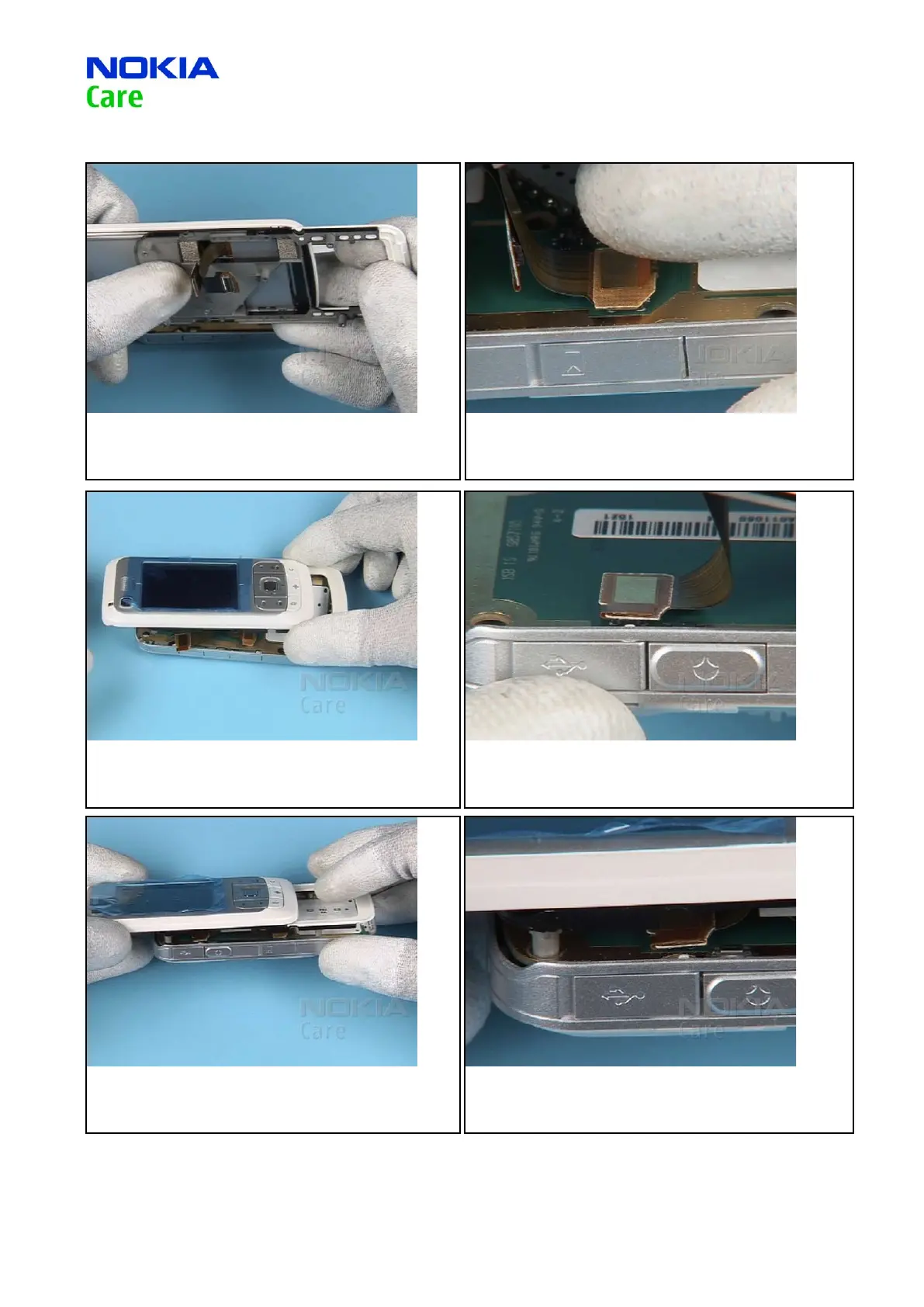

13. Slide the assembly into the open - position to gain the
maximum ex foil lengths.
14. Now close the ex connector.
15. Carefully close the assembly and hold it into the middle
position to gain the maximum ex foil lengths of the second
connector.
16. Close this connector, too.
17. Open the slider. Position the upper part over the lower
part.
18. Mind this guides.
