2. Your device

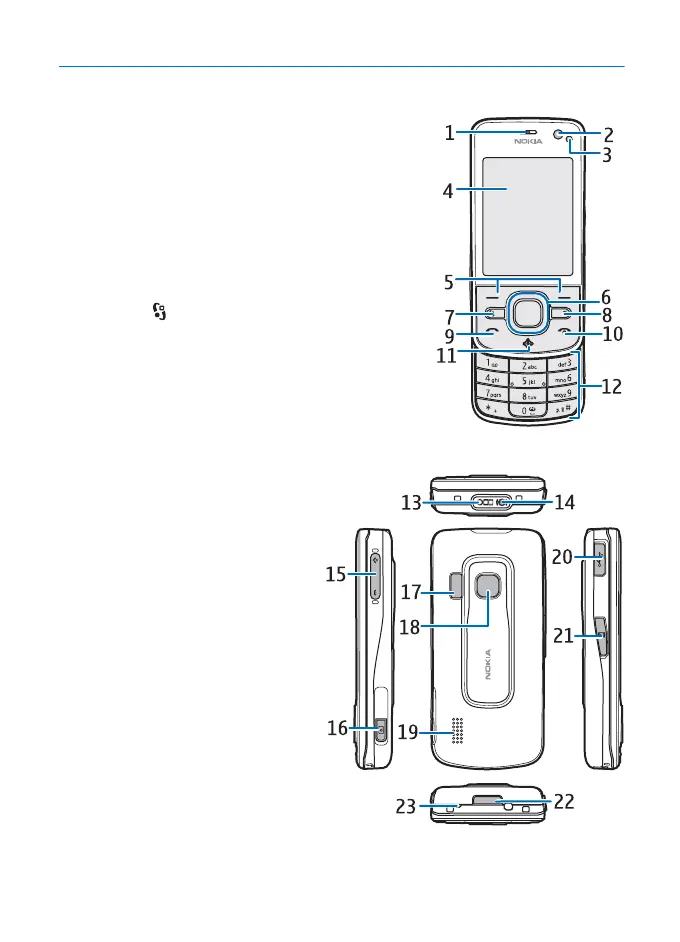

■ Keys and parts
1 - Earpiece
2 - Secondary camera lens
3 - Light sensor
4 - Display
5 - Left and right selection keys
6 - Navi
TM
scroll key, hereafter referred to as
scroll key, and Navi key light around it
7 - Menu key
8 - Clear key
9 - Call key
10 - Power key / end key
11 - Navigator key with GPS light
12 - Number keys
13 - Charger connector
14 - Headset connector
15 - Volume keys
16 - Camera key
17 - Camera flash
18 - Main camera lens
19 - Loudspeaker
20 - Micro USB connector
21 - Memory card slot
22 - Back cover release button
23 - Microphone
During extended operation, the device may
feel warm. In most cases, this condition is normal. If you suspect the device is not working
properly, take it to the nearest authorised service facility.
