6220classic RM-328/RM-387
Page (18)
ISSUE 1
Service Manual Level 1&2

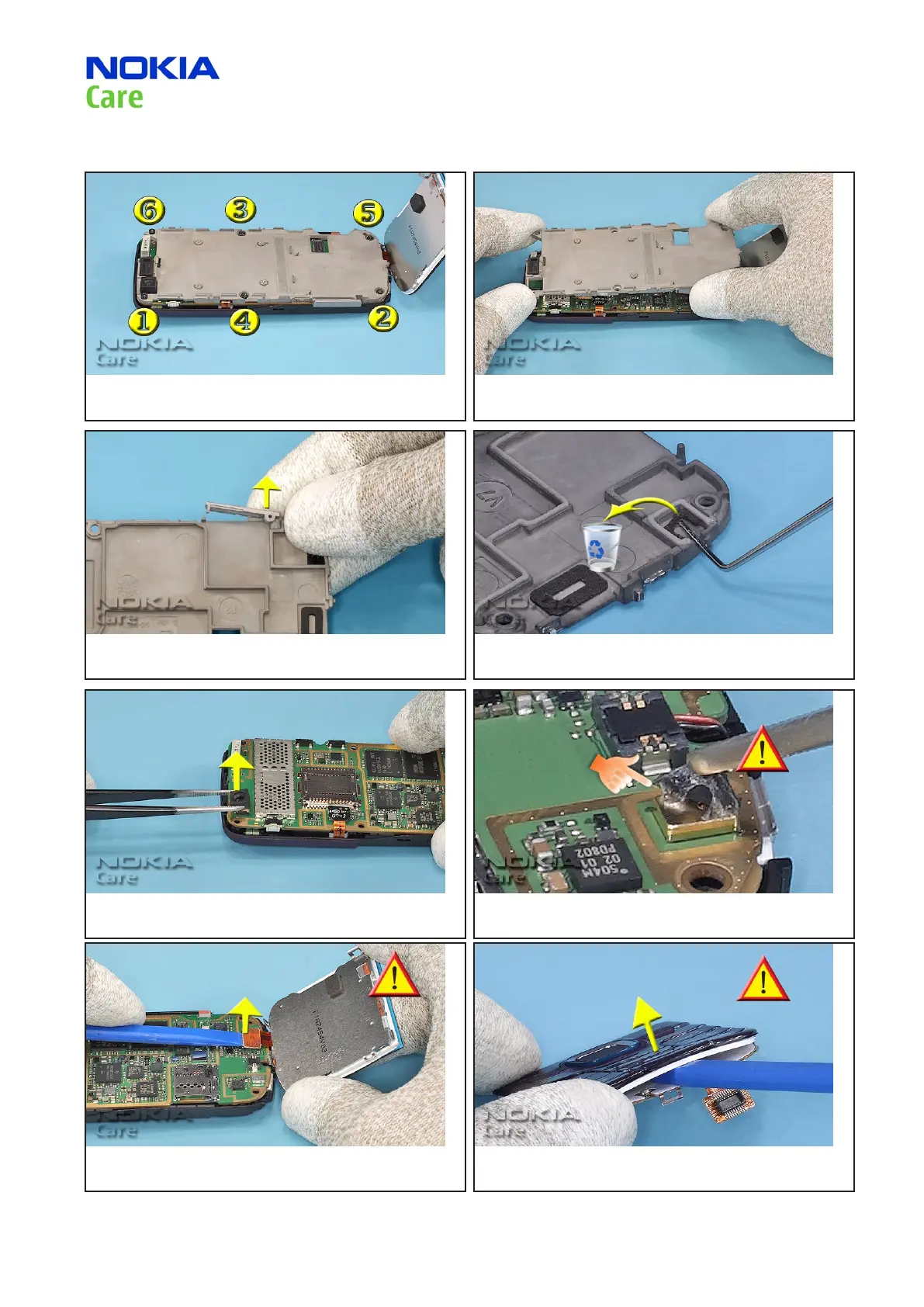

17. Undo the six screws in the order shown. 18. Remove the DECK ASSY.
19. Remove the MEMORY CARD LATCH. 20. Remove and discard the MICROPHONE GASKET.
21. Remove the FRONT CAMERA GASKET. 22. Carefully remove the adhesive residues from MICROPHONE.
23. Open the UI connector paying attention to the surrounding
components.
24. Remove KYEAMT from UI-SHEET ASSY by using SS-93.
