9
CONFIDENTIAL
Copyright © 2008 NOKIA. All rights reserved.
6220classic RM-328/RM-387
Page (18)
ISSUE 1
Service Manual Level 1&2

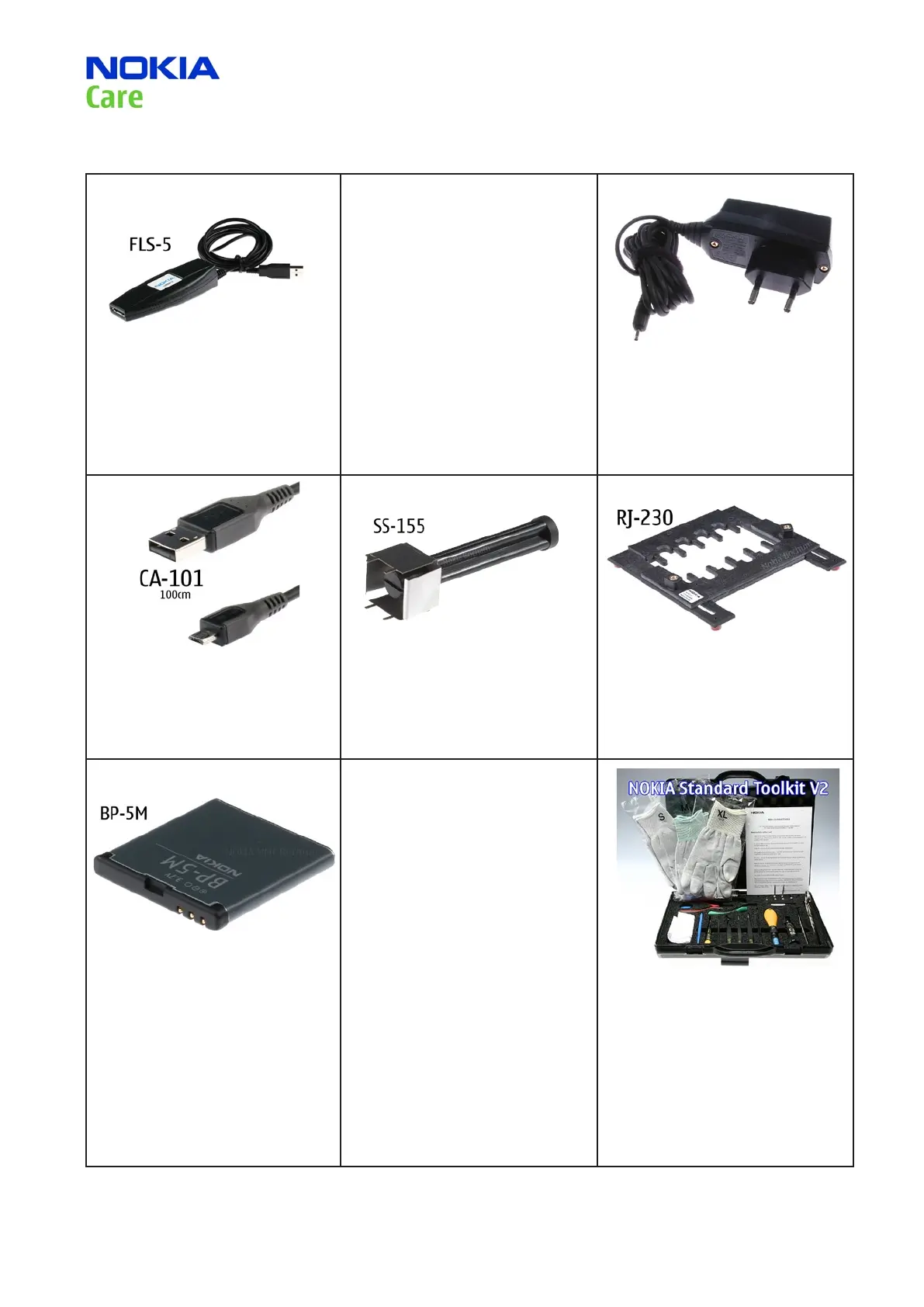

SERVICE DEVICES10.
FLS-5 incl. Driver and User Guide
Dongle and flash device incorporated
into one package, developed specifi-
cally for POS use.
Travel Charger AC-4
Small and lightweight charger for
fast charging of your phone battery.
CA-101
Service Cable to connect the PC with
the Micro USB connector.
SS-155
Camera removal tool. One side is for
disassembly, the other side for as-
sembly.
RJ-230
Soldering Jig
0772040
NMP Standard Toolkit (V2)
For more informations refer to the
Service Bulletin (SB-011) on NOKIA On-
line.
Supplier or manufacturer contacts for
tool re-order can be found in “Recom-
mended service equipment” docu-
ment on NOKIA Online.
Internal Battery BP-5M
Inserted under the back cover, this
Li-Ion battery provides power in a
lightweight package.
