Nokia 6220 Classic Service Manual

7
CONFIDENTIAL
Copyright © 2008 NOKIA. All rights reserved.
6220classic RM-328/RM-387
Page (18)
ISSUE 1
Service Manual Level 1&2
See corresponding ITEM/CIRCUIT REF in the Spare Parts Service Bulletins on NOL.
EXPLODED VIEW8.
= only available as
assembly
Ver. 2.0
= These parts can
not be reused
after removal.

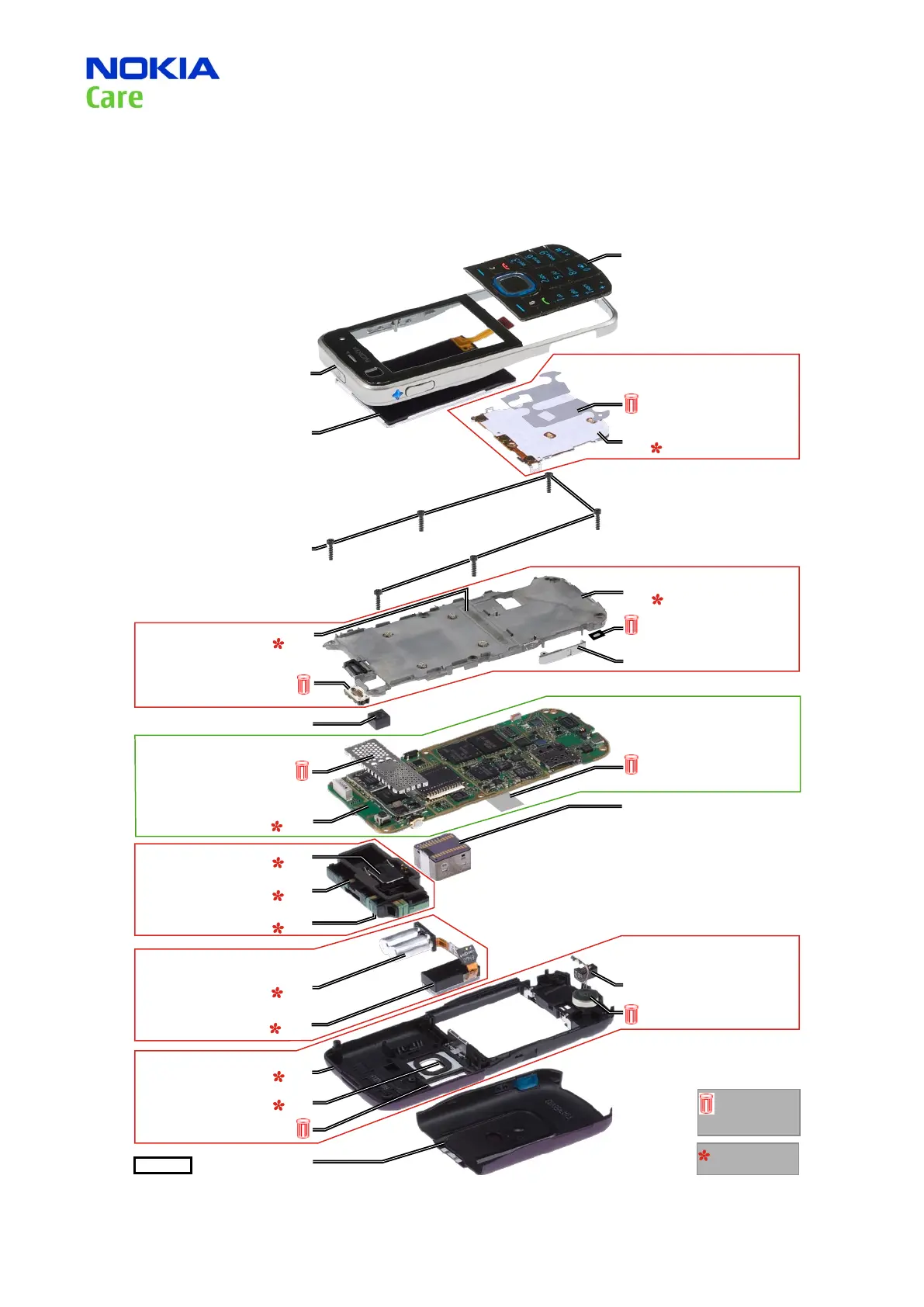

6220classic RM-328/387 EXPLODED VIEW
A2=DECK ASSY
(I007-I0011)
A1=UI SHEET ASSY
(I0003-I0004)
A6=B-COVER ASSY
(I0022-I0026)
A5=FLASH MODULE ASSY
(I0020-I0021)
A4=AUDIO BOX ASSY
(I0017-I0019)
A3=LIGHT SWAP PACKAGE
(I0013-I0015)
(LEVEL 3&4 ONLY)
A-COVER ASSY
I0002
FRONT CAMERA GASKET
I0012
KEYMAT
I0001
UI SHEET (A1)
I0003
KEYMAT ADHESIVE (A1)
I0004
DECK (A2)
I0010
LIGHT SWAP PWB (A3)
I0014
RF LID (A3)
I0013
VIBRA (A6)
I0025
DC JACK (A6)
I0026
TYPE LABEL (A3)
(LEVEL 3&4 ONLY)
I0015
6xSCREW 1.6x6 REMFORM TORX PLUS 6IP
I0006
DISPLAY ADHESIVE TAPE (A2)
I0008
EARPIECE (A2)
I0007
LCD AM 240x320 COG 16MCO Piccadilly II
I0005
CAMERA MOD 5MPIX AF SHARK
I0016
FLASH LIGHT GASKET (A6)
I0024
CAMERA SHUTTER (A6)
I0023
BATTERY COVER
I0027
IHF (A4)
I0018
ANTENNA (A4)
I0017
FLASH (A5)
I0021
CAPACITOR (A5)
I0020
CAMERA SHUTTER SWITCH (A4)
I0019
MEMORY CARD LATCH (A2)
I0009
MICROPHONE GASKET BACK (A2)
I0011
B-COVER (A6)
I0022
