Service Manual 6300 RM-217/ 6300b RM-222
Copyright © 2006-2007 NOKIA Corporation. All rights reserved.
Approved 1.0
MGR
Page (38)

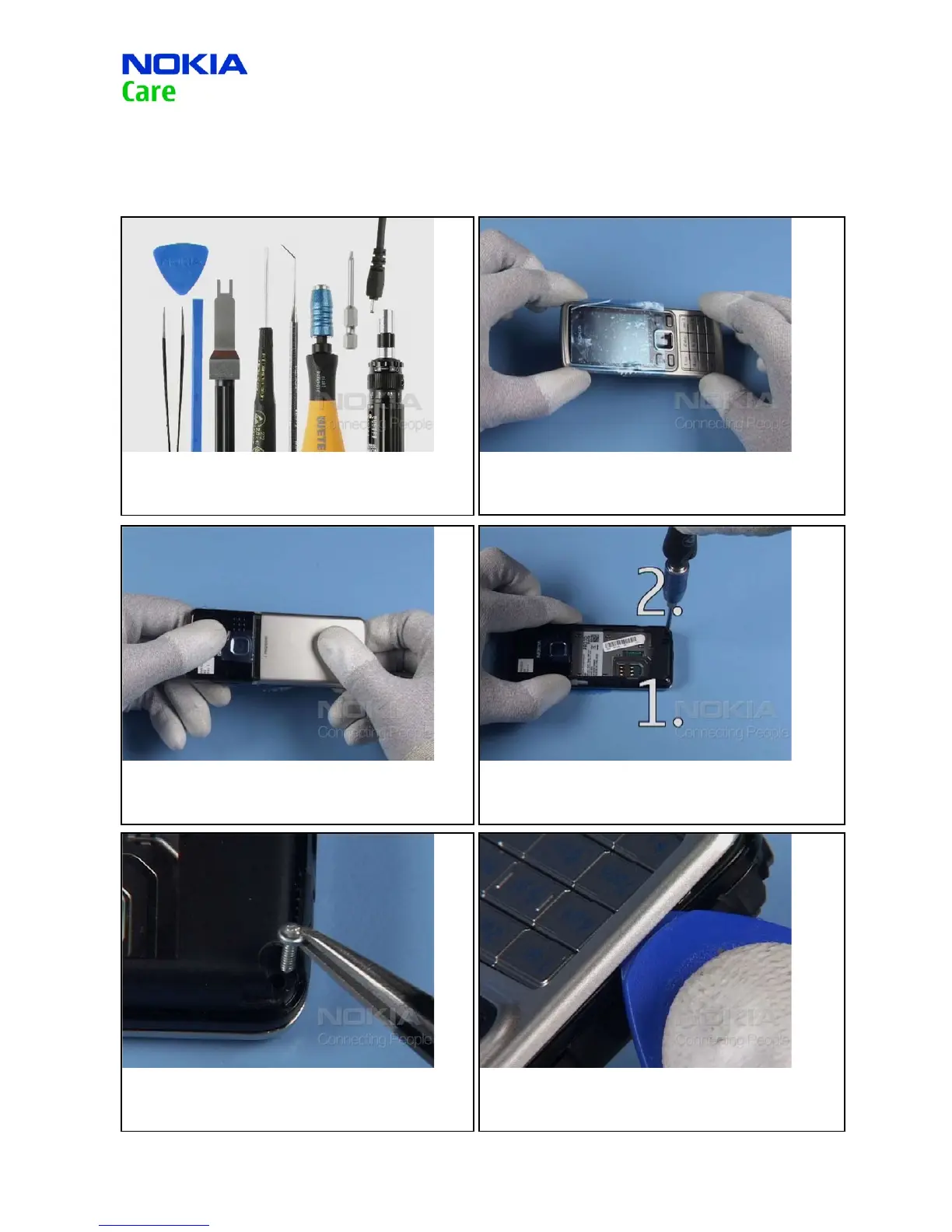

DISASSEMBLY - HINTS11.
1. Needed tools: SRT-6, metal tweezers, SS-93, SS-45 camera
removal tool, a straight bladed screwdriver, dental pick, bit
holder with a torx plus size 6 bit, a torque driver, DC plug
2. Always cover the windows with a protective lm.
3. Shift out the C-COVER.
4. Remove both screws in the order shown.
5. Remove the screws.
6. Unlock the plastic clips of the A-COVER with the SRT-6…
