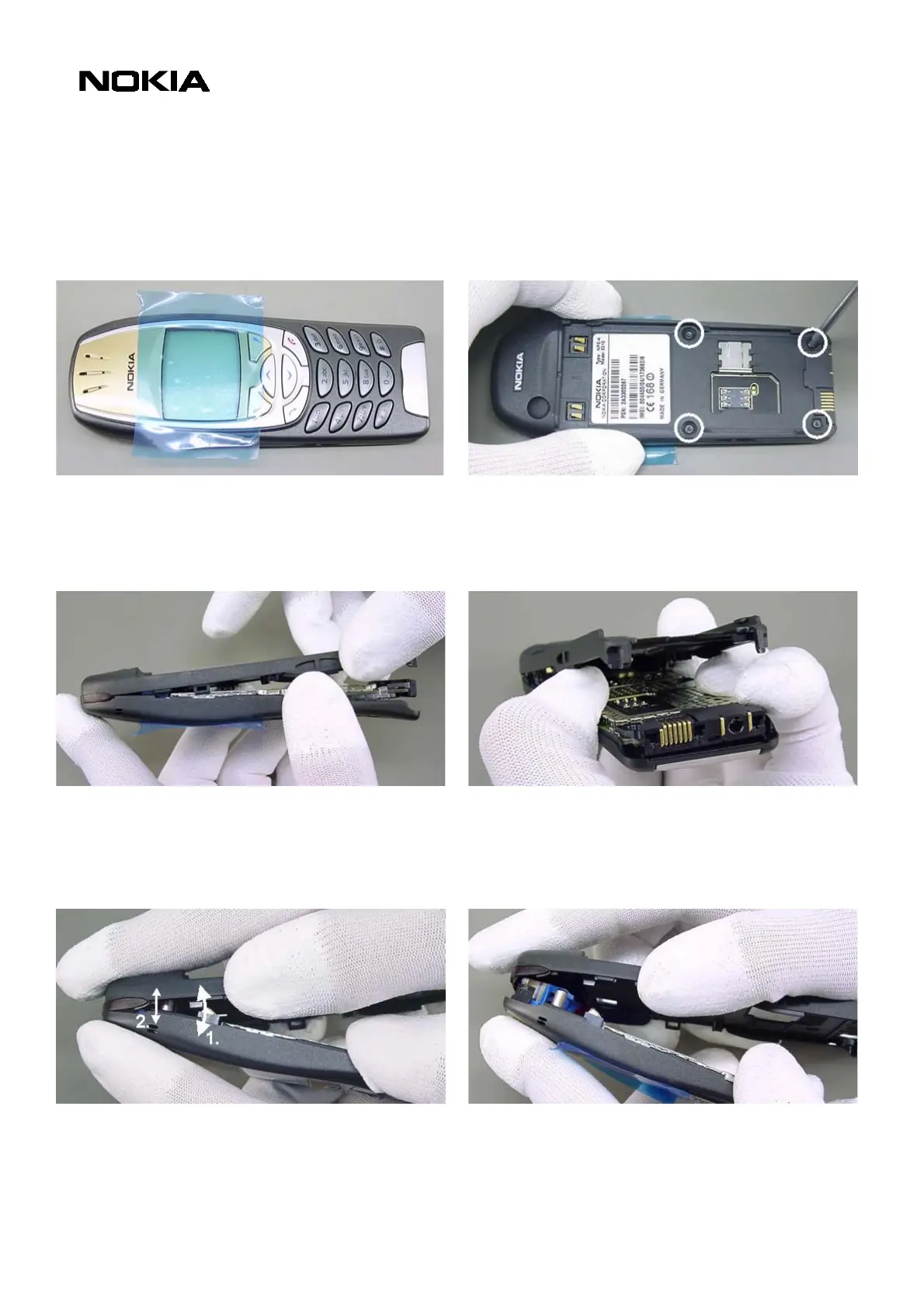

3. DISASSEMBLY INSTRUCTIONS
Attention: Before starting this procedure you must take care of ESD precautions like being in your
ESD-area and connecting your arm wrist. For more information please look at chapter 6.
Take care that your workbench is always clean and
p
rotect the Window with a foil against dust and
scratches.
To open the unit, four T6 screws have to be
opened. Do not use your torque driver for this,
because torque drivers are mostly designed for
fastening and not for opening screws.
Hold the unit with the Volume Key against the table.
Hold the A-Cover with your left hand and then grab
the B-Cover to unlock the side snaps in the bottom
area.
Before loosening the upper snaps of the cover be
sure that you press the module against the A-Cover.
The module is still fixed with the A-Cover with one
hidden screw in the antenna area.
There are three clips, which have to be released. Be
careful when pulling the covers apart in the antenna
area. It is easier if you wobble the covers carefully
against each other.
Now you can take away the B-Cover. Be careful not
to damage the antenna, which can break if you try
to rotate the cover against each other.
