6500 classic RM-265
Page (23) ISSUE 1
Service Manual Level 1&2

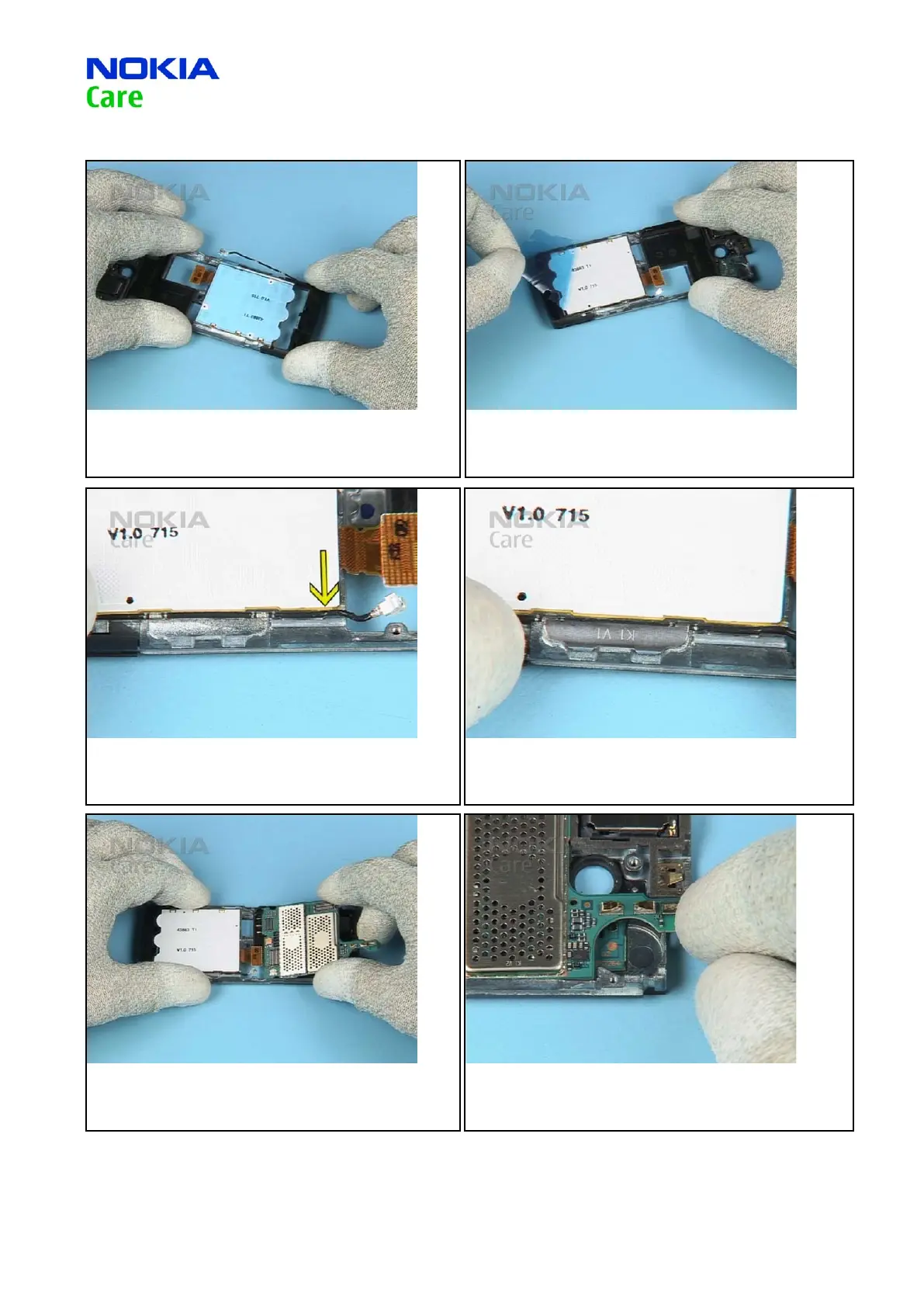

7. Fit the ANTENNA ASSEMBLY onto the C-COVER.
8. Remove the protection lm from the UI FLEX.
9. Pass the coax cable as shown. Ensure that the cable is not
damaged.
10. Fit the COAX CLAMP.
11. Place the LIGHT SWAP PWB into the C-COVER.
12. Check the correct position of the PWB before going on.
