Nokia 6500 Classic - Assembly Instruction

17
CONFIDENTIAL
Copyright © 2007 NOKIA. All rights reserved.
6500 classic RM-265
Page (23) ISSUE 1
Service Manual Level 1&2
ASSEMBLY INSTRUCTION12.

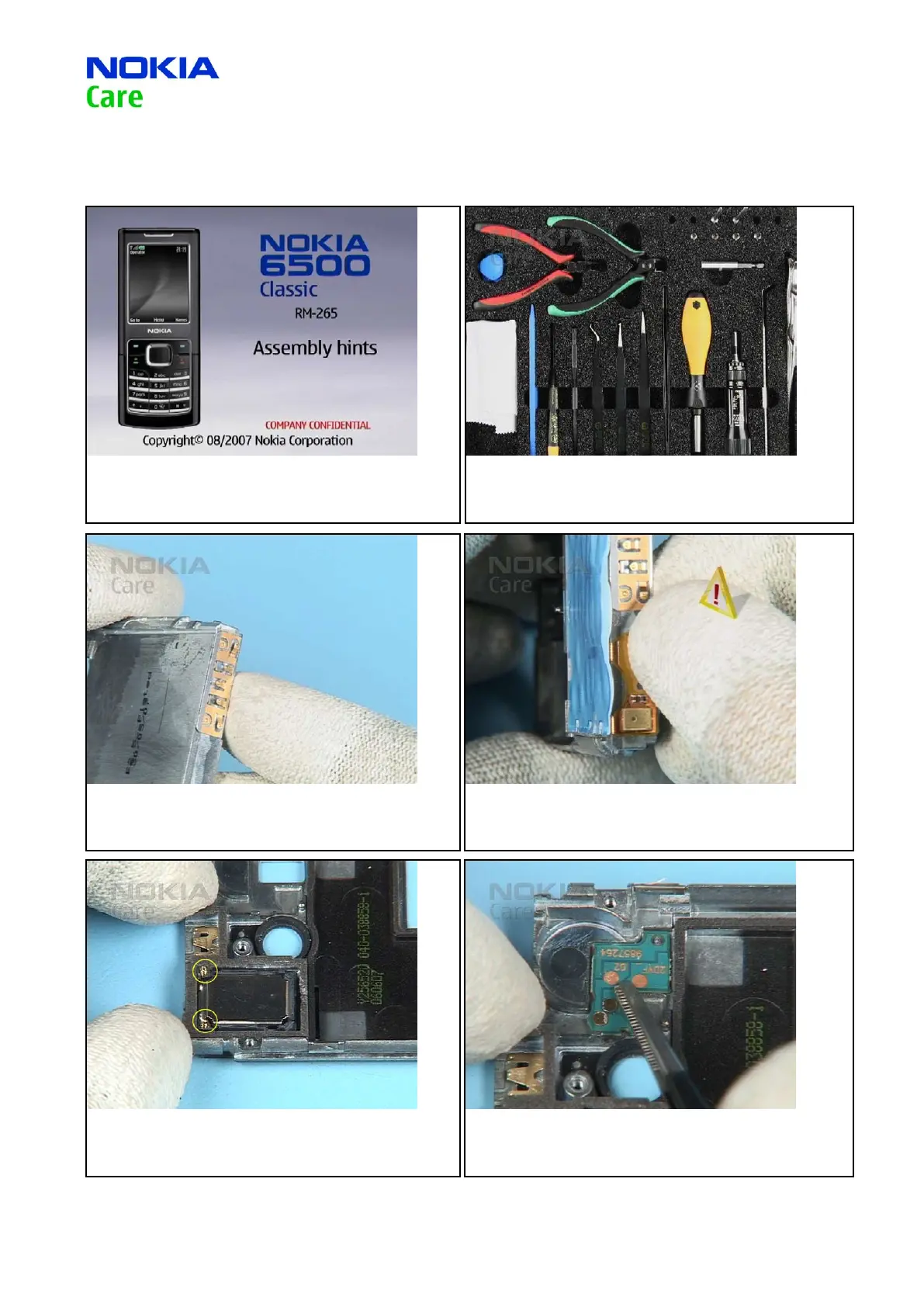

1. Nokia 6500 Classic. Assembly hints.
2. You will need the Nokia Standard Toolkit version 2. Also refer
to the General Mechanical Guideline Video for additional hints
about the tools and component handling.
3. Fit the ANTENNA GROUNDING to the C-COVER.
4. Take special care to the microphone ex when replacing the
UI FLEX.
5. Place the IHF SPEAKER with the new IHF SPEAKER ADHESIVE
into the C-COVER. Pay attention to the correct position of the
spring contacts.
6. Fit a new FLASH BOARD ASSEMBLY.
