Nokia 6760 slide - Page 16

Nokia 6790 Surge / Nokia 6790 Slide / Nokia 6760 Slide
RM-492 / RM-599 / RM-573
Service Manual Level 1&2
16
Confidential
 Copyright © 2009 NOKIA  All rights reserved
Version 1.0 ISSUE 1

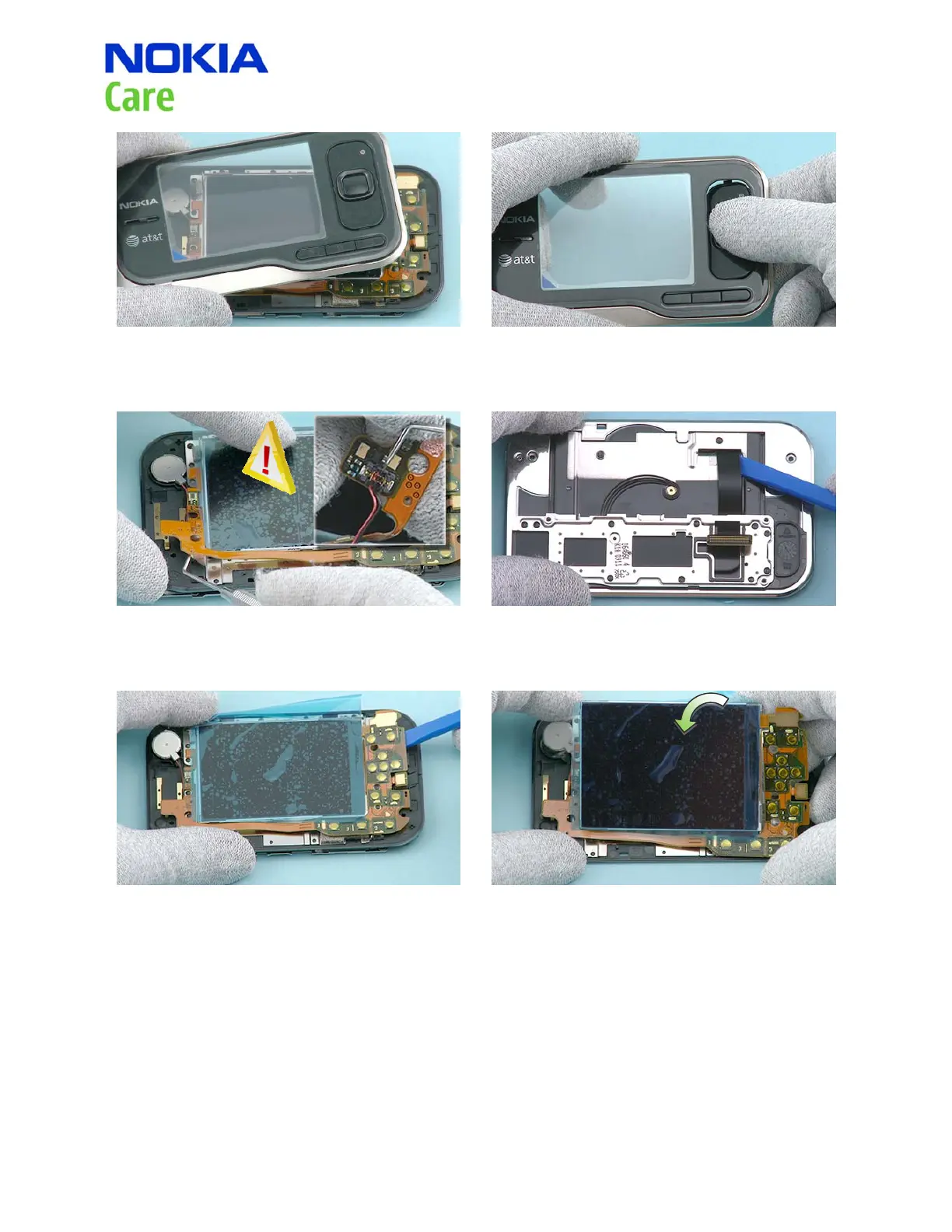

25) Remove the A-COVER ASSEMBLY. 26) Remove the FUNCTION & NAVIGATION KEYMAT by
pressing it lightly.
27) Carefully lift the corner of the flex with the
dental tool. Then open the vibra connector.
28) Use the SS-93 to loosen the adhesive on slide
assembly as shown.
29) Use the SS-93 to release the 2UA_05A UI
MODULE.
30) Turn over the 2UA_05A UI MODULE.
