Nokia 6760 slide - Exploded View

Nokia 6790 Surge / Nokia 6790 Slide / Nokia 6760 Slide
RM-492 / RM-599 / RM-573
Service Manual Level 1&2
9
Confidential
 Copyright © 2009 NOKIA  All rights reserved
Version 1.0 ISSUE 1

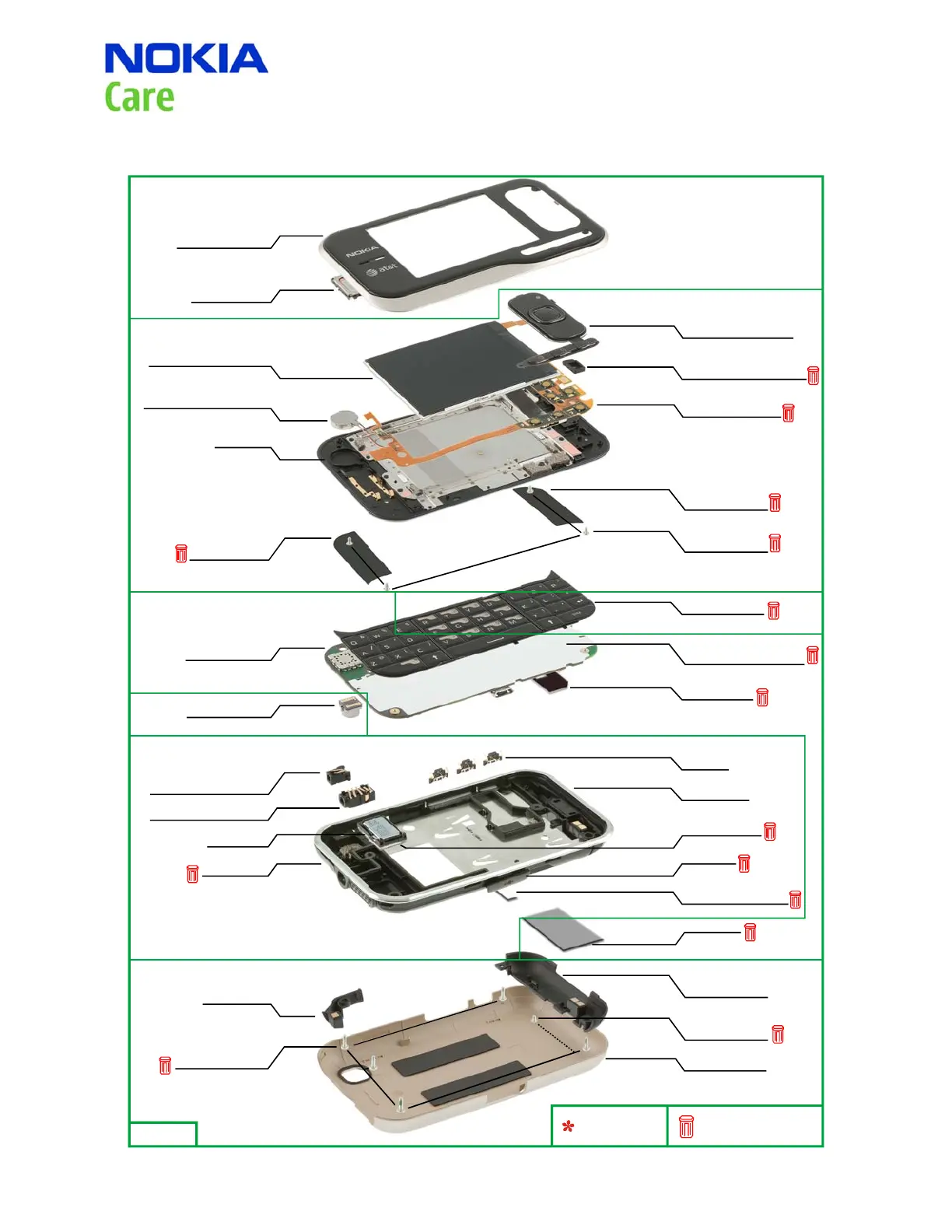

7. EXPLODED VIEW
Only available as
assembly
Ver. 0.12
These parts can not be
reused after removal
A1=A-COVER ASSEMBLY
(I0001-I0002)
A3=C-COVER ASSY (I0015-I0222, I9998)
SCREW M1.4 x 2.1
KAMERA KZ STEEL
I0225
BATTERY COVER
I0226
TYPE LABEL
I0210
WATER INGRESS LABEL
I9998
GSM / WCDMA
ANTENNA
I0214
C-COVER ASSY
I0222
QWERTY KEYMAT
I0212
SIM CARD FILM
I0209
QWERTY
KEYMAT DOMESHEET W/LG
I0211
A-COVER ASSEMBLY
I0001
MICROPHONE RUBBER SEAL
I0008
2UA_05A UI MODULE
I0101
LEFT SCREW
CAP DECO COVER
I0005
PETRA EARPIECE
I0002
VIB DIEGO BLDC COIN VIBRA
I0007
SLIDE ASSY
I0102
LIGHT SWAP PWB
I0201
CONN UHJ 4 POLE 2.5MM
I0217
CONN CHR DIA
2.0mm SHORT COMPRESS
I0218
IHF SPEAKER
I0215
SWITCH
I0219
GPS ANTENNA
I0223
BRIXTON DISPLAY MODULE
I0004
FUNC. AND NAVI. KEYMAT
I0003
SCREW M1.4xL4.5
LONG THREAD LOCK
I0224
SCREW M1.4 x 2.1
KAMERA KZ STEEL
I0103
RIGHT SCREW
CAP DECO COVER
I0006
IHF FV ADHESIVE
I0216
A2=LIGHT SWAP PACKAGE
(I0201-I0211)
CAMERA MODULE
I0213
USB DOOR
I0221
DC JACK DOOR
I0220
