7070 Prism RH-116, RH-1
17
Service Manual Level 1&2
ISSUE 1
Confidential
17

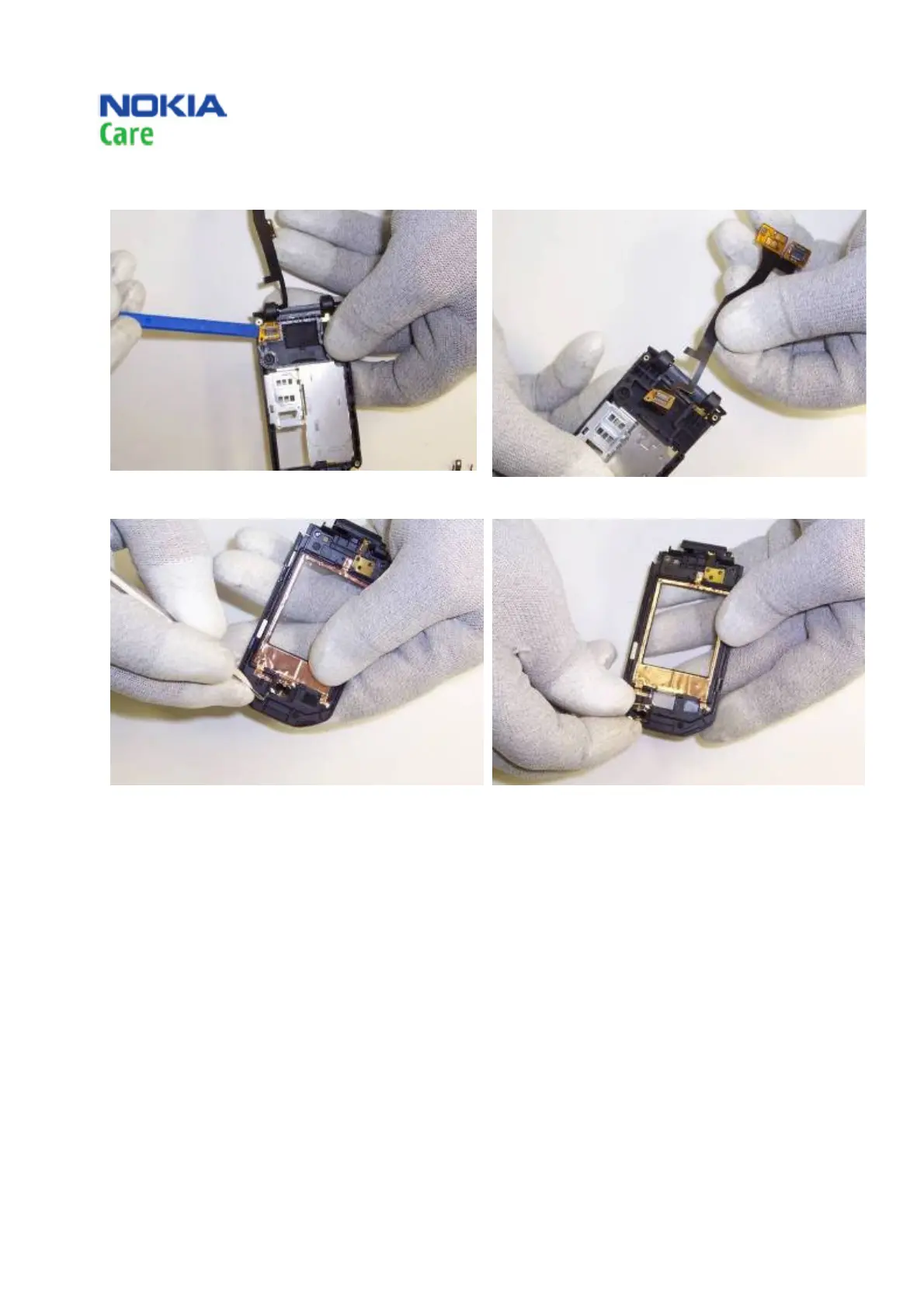

31) Carefully work SS-9
3 under the UI fl
ex
connector and free the hinge
flex cable assembly.
32) Remove the UI flex ca
ble assembly.
33) Use dental tool to lift the earpie
ce speaker.
34) Remove the earpiece speaker.
The disassembly is completed.
Copyright @ 2008 NO
KIA. All rights reserved
16
