PAGE 11 (50) Version 1.0 Approved
Nokia Mobile Phones Customer Care E&A
Technical Services Repair Concepts
Confidential
19.07.2001
Mobile Charger LCH-9
Charging adapter for car environment;
Input voltage 9...32 V
Output voltage 7.8 V /+1.4V/–1.0V)
Charger type Switching mode power supply
Operation quick charge (< 0.5-2.5 h), trickle charge
Protection input fused, output current limit
Green LED indicating input voltage on
Weight Appx. 78g
Product Code
Portable charger LCH-9 0675005

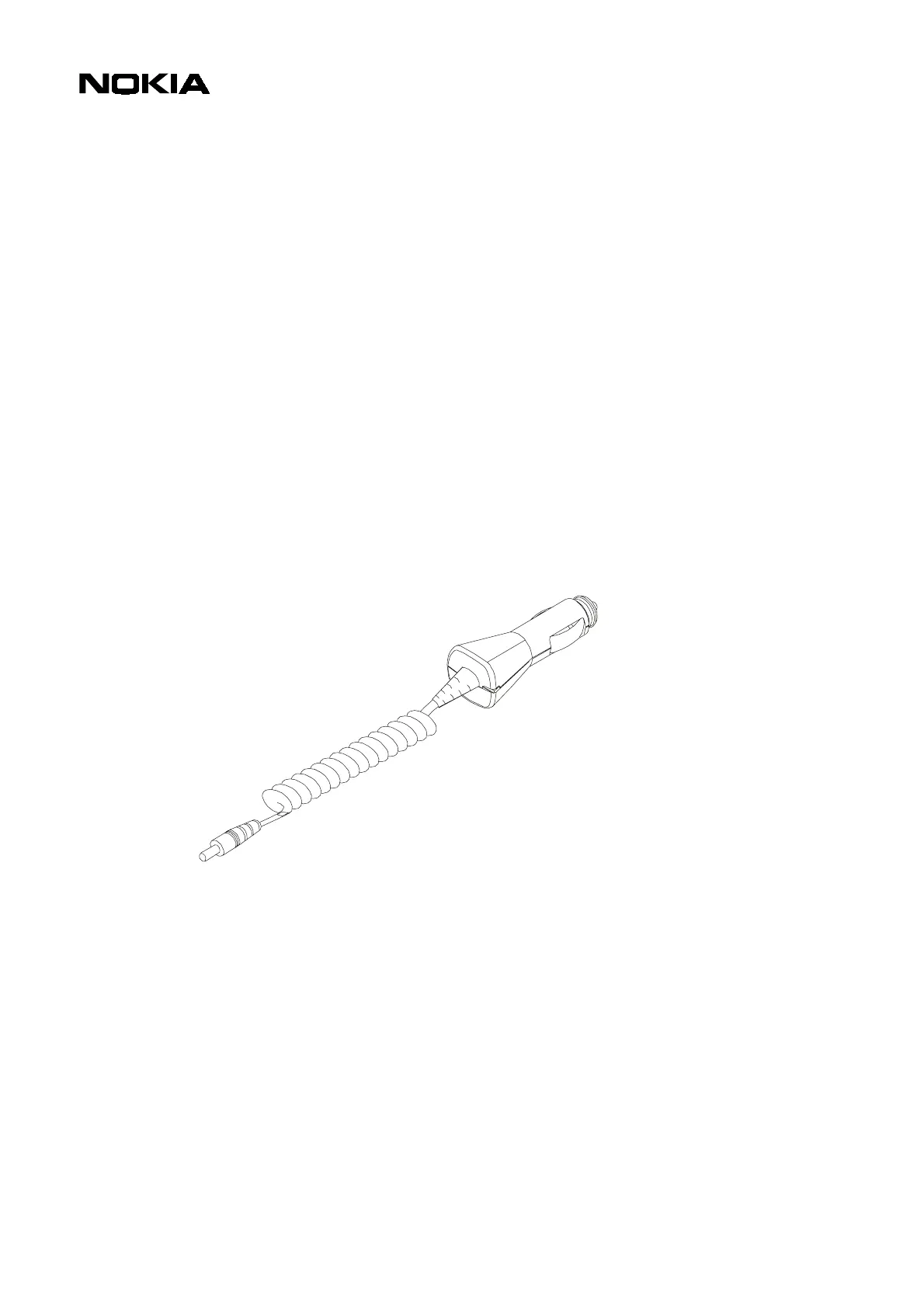

View of LCH-9
