Nokia ASHA 303 RM-763 - Assembly Hints

Nokia Asha 303
RM-763
Service Manual Level 1&2
18
Co nf id e nt ial | Cop yright © 2011 Nokia | A ll rights reserved
V e rs io n 1 .0

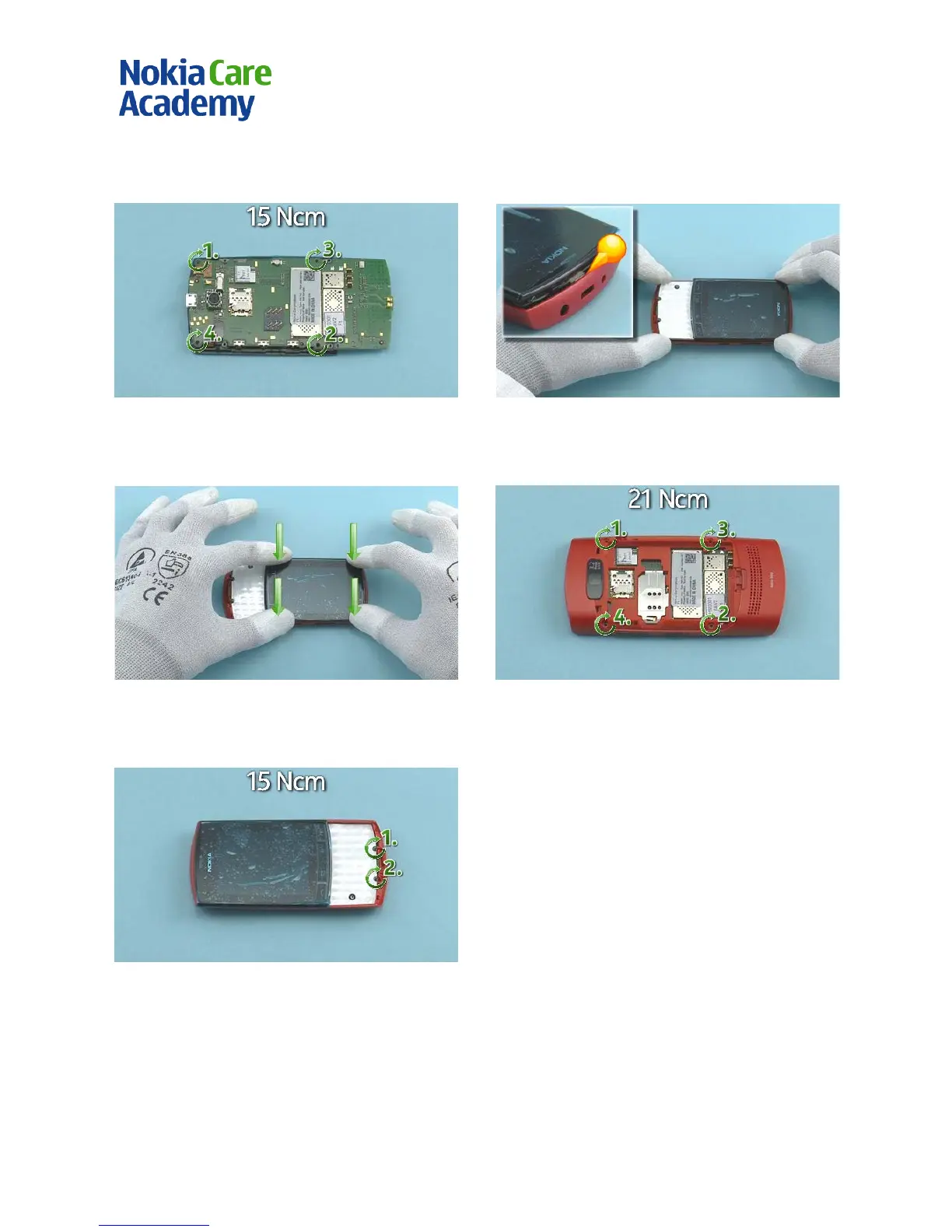

10. ASSEMBLY HINTS
1) Tighten the four Torx+ size 6 screws to the torque
of 15 Ncm.
2) Assemble the A-COVER including the ENGINE
BOARD to the B-COVER as flat as possible. Make sure
that the USB connector fits to the B-COVER.
3) Slightly push down to attach the A-COVER
including the ENGINE BOARD to the B-COVER.
4) Tighten the four Torx+ size 6 screws to the torque
of 21 Ncm.
5) Tighten the two Torx+ size 4 screws to the torque
of 15 Ncm.
