Nokia C1-00
RM-689
Service Manual Level 1&2
12 Confidential
| Copyright © 2010 NOKIA All rights reserved
Version 1.0

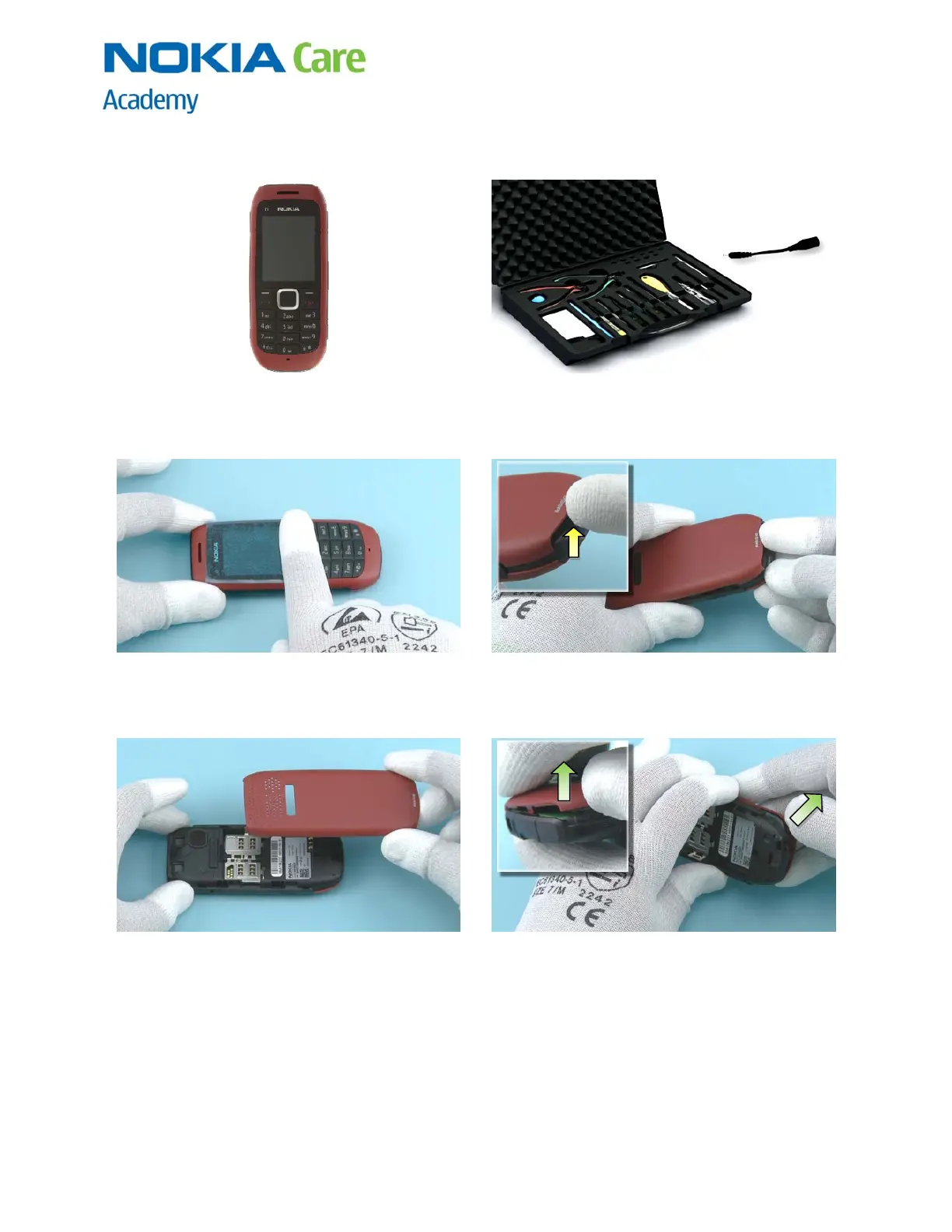

9. DISASSEMBLY INSTRUCTIONS
1) Nokia C1-00 disassembly. 2) You must use the Nokia Standard Toolkit version
2. You will also need the DC plug.
3) Protect the A-COVER ASSEMBLY window with a
protective film.
4) Use the opening notch to release the B-COVER.
5) Remove the B-COVER. 6) Start releasing the A-COVER ASSEMBLY by
releasing both of the bottom corners as shown.
