Nokia C1-00
RM-689
Service Manual Level 1&2
9 Confidential
| Copyright © 2010 NOKIA All rights reserved
Version 1.0

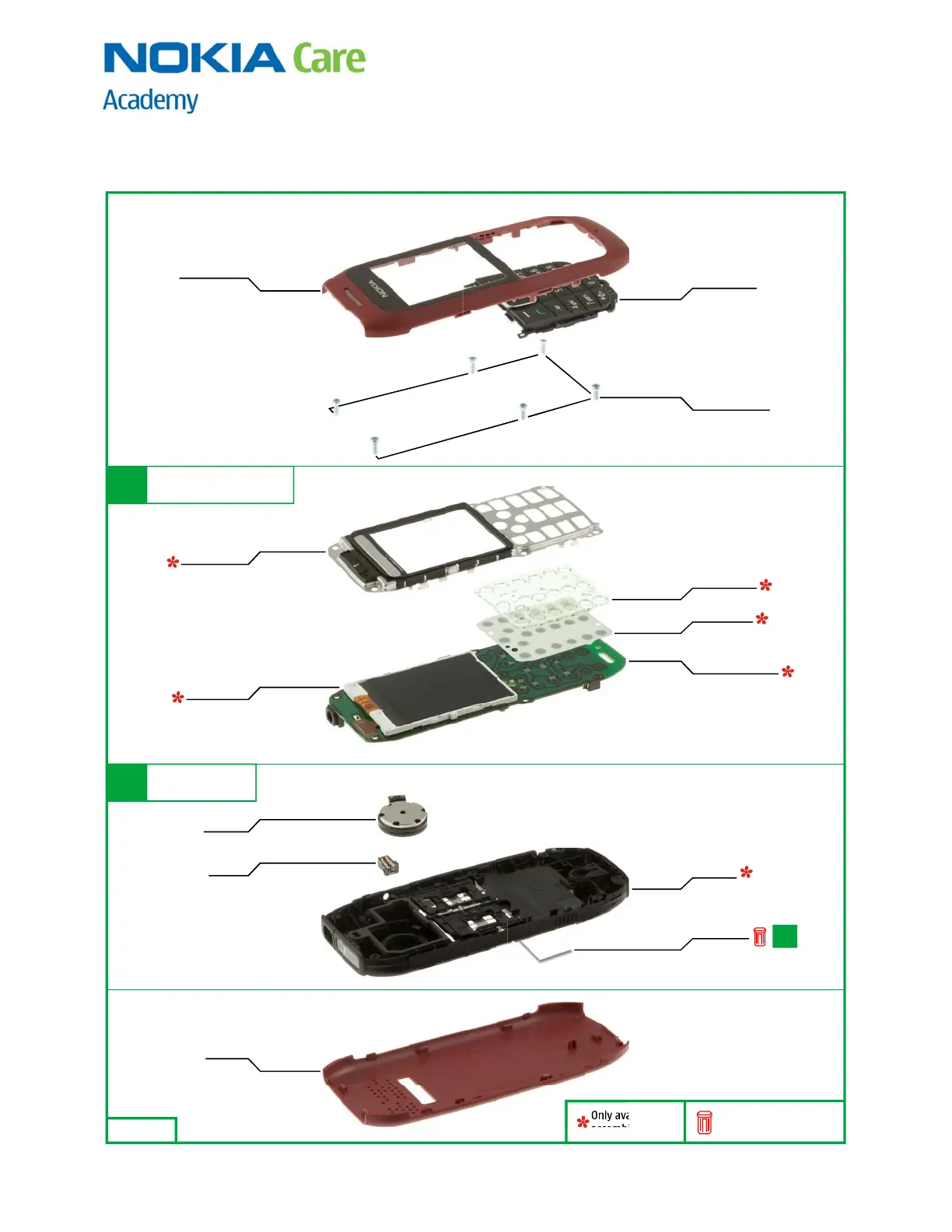

6. EXPLODED VIEW
Only available as
assembly
These parts can not be
reused after removal
Ver. 1.0
A1
A1
LIGHTSWAPPACKAGE
(I0004 - I0009)
A2
D-COVER ASSY
(I0010 - I0012)
KEYMAT ASSY
I0002
LIGHT GUIDE
I0005
D-COVER
I0012
TYPE LABEL
I0009
DOMESHEET
I0007
A-COVER ASSY
I0001
B-COVER
I0013
UI SHIELDING
I0004
LCD DISPLAY
I0006
SPEAKER
I0010
DC JACK
I0011
SCREW TORX+ 6
I0003
LIGHT SWAP PWB
I0008
